X3D Model Documentation: CompleteScene.x3d

1	`<?xml version="1.0" encoding="UTF-8"?>`
2	`<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">`
3	<X3D profile='Interactive' version='3.0' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'>
4	<head>
5	<meta name='title' content=' CompleteScene.x3d '/>
6	<meta name='description' content='A C130 aircraft in a combat zone'/>
7	<meta name='creator' content='Maj. Mounir Sidhom, Tunisian Air Force'/>
8	<meta name='translated' content='13 August 2004'/>
9	<meta name='modified' content='28 November 2019'/>
10	<meta name=' warning ' content=' not verified to scale '/>
11	<meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/Savage/AircraftFixedWing/C130HerculesTunisia/CompleteScene.x3d '/>
12	<meta name='generator' content='X3D-Edit 3.2, https://www.web3d.org/x3d/tools/X3D-Edit'/>
13	<meta name='generator' content=' Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html '/>
14	<meta name='license' content='../../license.html'/>
15	</head>

<!--

Event Graph ROUTE Table shows event connections.

-->
<!--

DEF nodes index: AC_CLOCK, AC_PATH, AC_ROTATION, AC1

Index for Viewpoint node: Viewpoint_1

-->

16	<Scene>
17	<WorldInfo title='CompleteScene.x3d'/>

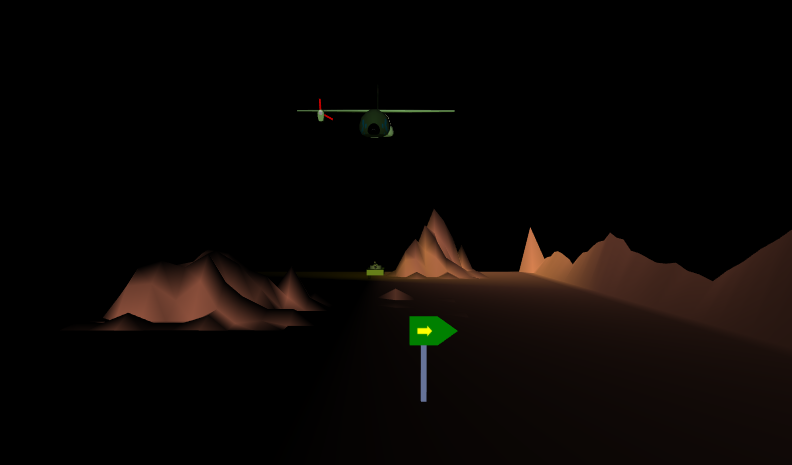

18	<Viewpoint description='main view' orientation='0.0 1.0 0.0 1.57' position='35.0 3.5 -2.0'/>
19	<Transform translation='0.0 0.0 -15.0'>
20	<Inline url=' "CombatZone.x3d" "https://www.web3d.org/x3d/content/examples/Savage/AircraftFixedWing/C130HerculesTunisia/CombatZone.x3d" "CombatZone.wrl" "https://www.web3d.org/x3d/content/examples/Savage/AircraftFixedWing/C130HerculesTunisia/CombatZone.wrl" '/>
21	</Transform>
22	<!-- ROUTE information for AC1 node: [from AC_PATH.value_changed to set_translation ] [from AC_ROTATION.value_changed to set_rotation ] --> <Transform DEF='AC1'>
23	<Inline url=' "C130Hercules.x3d" "https://www.web3d.org/x3d/content/examples/Savage/AircraftFixedWing/C130HerculesTunisia/C130Hercules.x3d" "C130Hercules.wrl" "https://www.web3d.org/x3d/content/examples/Savage/AircraftFixedWing/C130HerculesTunisia/C130Hercules.wrl" '/>
24	</Transform>
25	<!-- ROUTE information for AC_CLOCK node: [from fraction_changed to AC_PATH.set_fraction ] [from fraction_changed to AC_ROTATION.set_fraction ] --> <TimeSensor DEF='AC_CLOCK' cycleInterval='6' loop='true'/>
26	<!-- ROUTE information for AC_PATH node: [from AC_CLOCK.fraction_changed to set_fraction ] [from value_changed to AC1.set_translation ] --> <PositionInterpolator DEF='AC_PATH' key='0.0 0.25 0.5 0.75 1.0' keyValue='-50 25 0 -10 10 0 30 10 0 70 25 0 110 30 0'/>
27	<!-- ROUTE information for AC_ROTATION node: [from AC_CLOCK.fraction_changed to set_fraction ] [from value_changed to AC1.set_rotation ] --> <OrientationInterpolator DEF='AC_ROTATION' key='0.0 0.30 0.5 0.80 1.0' keyValue='0.0 0.0 -1.0 0.2 0.0 0.0 -1.0 0.2 0.0 0.0 1.0 0.10 0.0 0.0 1.0 0.4 0.0 0.0 0.0 0.0'/>
28	< ROUTE fromNode='AC_CLOCK' fromField='fraction_changed' toNode='AC_PATH' toField='set_fraction'/>
29	< ROUTE fromNode='AC_PATH' fromField='value_changed' toNode='AC1' toField='set_translation'/>
30	< ROUTE fromNode='AC_CLOCK' fromField='fraction_changed' toNode='AC_ROTATION' toField='set_fraction'/>
31	< ROUTE fromNode='AC_ROTATION' fromField='value_changed' toNode='AC1' toField='set_rotation'/>
32	</Scene>
33	</X3D>

<!--

Event Graph ROUTE Table shows event connections.

-->
<!--

DEF nodes index: AC_CLOCK, AC_PATH, AC_ROTATION, AC1

Index for Viewpoint node: Viewpoint_1

-->

X3D Tooltips element index: head, Inline, meta, OrientationInterpolator, PositionInterpolator, ROUTE, Scene, TimeSensor, Transform, Viewpoint, WorldInfo, X3D, plus documentation for accessType definitions, type definitions, XML data types, and field types

Event Graph ROUTE Table entries with 4 ROUTE connections total, showing X3D event-model relationships for this scene.

Each row shows an event cascade that may occur during a single timestamp interval between frame renderings, as part of the X3D execution model.

AC_CLOCK TimeSensor fraction_changed SFFloat	→ ROUTE event to (1)	AC_PATH PositionInterpolator set_fraction SFFloat	then	AC_PATH PositionInterpolator value_changed SFVec3f	→ ROUTE event to (2)	AC1 Transform set_translation SFVec3f
AC_CLOCK TimeSensor fraction_changed SFFloat	→ ROUTE event to (1)	AC_ROTATION OrientationInterpolator set_fraction SFFloat	then	AC_ROTATION OrientationInterpolator value_changed SFRotation	→ ROUTE event to (2)	AC1 Transform set_rotation SFRotation

Additional guidance on X3D animation can be found in the 10-Step Animation Design Process and Event Tracing hint sheets. Have fun with X3D! 😀

-->
