X3D Model Documentation: WolverineScene.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
  3  <X3D profile='Immersive' version='3.0'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'>
  4       <head>
  5            <meta name='title' content=' WolverineScene.x3d '/>
  6            <meta name='description' content='Wolverine is an M1A1 tank chassis with a deployable Heavy Assualt Bridge(HAB). Original M1A1 model authored by Scott Tufts.'/>
  7            <meta name='creator' content='Nick Wittwer'/>
  8            <meta name='created' content='15 February 2005'/>
  9            <meta name='modified' content='20 October 2019'/>
 10            <meta name='reference' content=' WolverineConstructionReport.pdf '/>
 11            <meta name='reference' content=' https://www.fas.org/man/dod-101/sys/land/m1.htm '/>
 12            <meta name='reference' content=' https://www.fas.org/man/dod-101/sys/land/wolverine.htm '/>
 13            <meta name='Image' content='https://www.fas.org/man/dod-101/sys/land/wol3.jpg'/>
 14            <meta name='drawing' content=' https://www.fas.org/man/dod-101/sys/land/wolverine.htm '/>
 15            <meta name='subject' content='Wolverine, HAB, Heavy Assault Bridge, AVLB, M1A1 Main Battle Tank, Abrams, MBT,'/>
 16            <meta name='license' content='../../license.html'/>
 17            <meta name='license' content='https://www.web3d.org/x3d/content/examples/Basic/X3dSceneAuthoringHints.html#license'/>
 18            <meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/Savage/GroundVehicles/Wolverine/WolverineScene.x3d '/>
 19            <meta name='generator' content='X3D-Edit 3.2, https://www.web3d.org/x3d/tools/X3D-Edit'/>
 20            <meta name='translator' content=' Xeena VRML importer, X3D-Edit 3.1, https://www.web3d.org/x3d/content/README.X3D-Edit.html '/>
 21            <meta name='generator' content=' Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html '/>
 22       </head>
<!--
<!-- -->
<!-- to top DEF nodes index: Land, River, Scene, Viewpoints, Wolverine, WolverineInline

Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2
-->
 23       <Scene>
 24            <WorldInfo title='WolverineScene.x3d'/>
 25            <Group DEF='Viewpoints'>

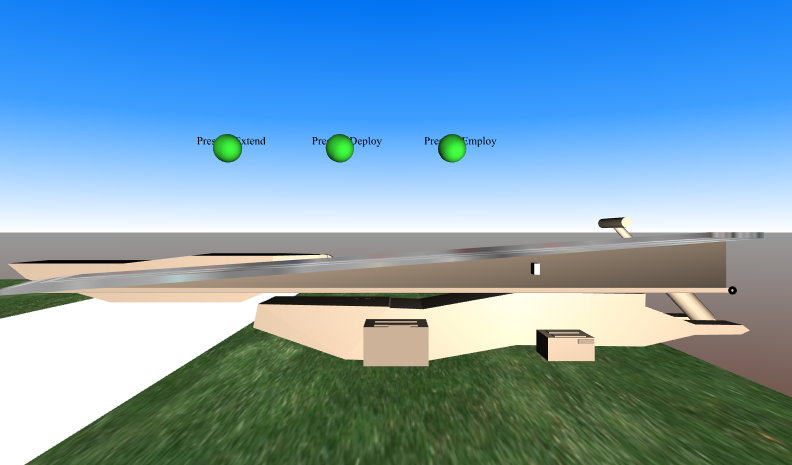

 26                 <Viewpoint description='Side' position='0 2 10'/>
 27                 <Viewpoint description='Side and back' orientation='1 0 0 -.35' position='-15 3.5 17'/>
 28            </Group>
 29            <Group DEF='Scene'>
 30                 <Transform DEF='River' translation='-18.15 -6 -20'>
 31                      <Shape>
 32                           <Box size='20 4 60'/>
 33                           <Appearance>
 34                                <MovieTexture loop='true'   url=' "wrlpool.mpg" "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/wrlpool.mpg" '/>
 35                           </Appearance>
 36                      </Shape>
 37                 </Transform>
 38
               <!-- Transform Land is a DEF node that has 1 USE node: USE_1 -->
                <Transform DEF='Land' translation='2 -5 -20'>
 39                      <Shape>
 40                           <Box size='20 4 60'/>
 41                           <Appearance>
 42                                <ImageTexture   url=' "plants12.jpg " "https://www.web3d.org/x3d/content/examples/Savage/GroundVehicles/Wolverine/plants12.jpg " '/>
 43                           </Appearance>
 44                      </Shape>
 45                 </Transform>
 46                 <Transform translation='-39.5 0 0'>
 47                      <Transform USE='Land'/>
 48                 </Transform>
 49                 <DirectionalLight direction='0.7071 0.7071 0'/>
 50                 <Background groundAngle='1.309 1.570796' groundColor='0.1 0.1 0 0.4 0.25 0.2 0.6 0.6 0.6' skyAngle='1.309 1.571' skyColor='0 0.2 0.7 0 0.5 1 1 1 1'   backUrl=' "mount.jpg " "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/mountns.png " '   frontUrl=' "mountns.png " "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/mountns.png " '   leftUrl=' "mountns.png " "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/mountns.png " '   rightUrl=' "mountns.png " "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/mountns.png " '/>
 51            </Group>
 52            <Transform DEF='WolverineInline'>
 53                 <Inline DEF='Wolverine'   url=' "Wolverine.x3d" "https://www.web3d.org/x3d/content/examples/Savage/GroundVehicles/Wolverine/Wolverine.x3d" "Wolverine.wrl" "https://www.web3d.org/x3d/content/examples/Savage/GroundVehicles/Wolverine/Wolverine.wrl" '/>
 54            </Transform>
 55       </Scene>
 56  </X3D>
<!--
<!-- -->
<!-- to top DEF nodes index: Land, River, Scene, Viewpoints, Wolverine, WolverineInline

Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2
-->
X3D Tooltips element index: Appearance, Background, Box, DirectionalLight, Group, head, ImageTexture, Inline, meta, MovieTexture, Scene, Shape, Transform, Viewpoint, WorldInfo, X3D, plus documentation for accessType definitions, type definitions, XML data types, and field types
-->
<!-- Online at
https://www.web3d.org/x3d/content/examples/Savage/GroundVehicles/Wolverine/WolverineSceneIndex.html -->
<!-- Version control at
https://sourceforge.net/p/x3d/code/HEAD/tree/www.web3d.org/x3d/content/examples/Savage/GroundVehicles/Wolverine/WolverineScene.x3d -->

<!-- Color-coding legend: X3D terminology <X3dNode  DEF='idName' field='value'/> matches XML terminology <XmlElement  DEF='idName' attribute='value'/>
(Light-blue background: event-based behavior node or statement) (Grey background inside box: inserted documentation) (Magenta background: X3D Extensibility)
-->

to top <!-- For additional help information about X3D scenes, please see X3D Tooltips, X3D Resources, and X3D Scene Authoring Hints. -->
