X3D Model Documentation: AdenHarborChart.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
  3  <X3D profile='Interchange' version='3.0'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'>
  4       <head>
  5            <meta name='title' content=' AdenHarborChart.x3d '/>
  6            <meta name='description' content='Chart of Aden Harbor, Yemen.'/>
  7            <meta name='creator' content='James Harney'/>
  8            <meta name='created' content='17 October 2001'/>
  9            <meta name='modified' content='20 October 2019'/>
 10            <meta name='reference' content='http://en.wikipedia.org/wiki/Aden'/>
 11            <meta name='reference' content=' http://www.foia.navy.mil/usscole/enclosures/enclosure3.pdf '/>
 12            <meta name='reference' content='NIMA chart 62098, 1995 edition'/>
 13            <meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/Savage/Scenarios/UssColeTerroristAttack/AdenHarborChart.x3d '/>
 14            <meta name='generator' content='X3D-Edit 3.2, https://www.web3d.org/x3d/tools/X3D-Edit'/>
 15            <meta name='license' content='../../license.html'/>
 16       </head>
<!--
<!-- to top DEF node index: Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2
-->
 17       <Scene>
 18            <WorldInfo title='AdenHarborChart.x3d'/>
 19            <NavigationInfo type='"EXAMINE" "FLY" "ANY"'/>

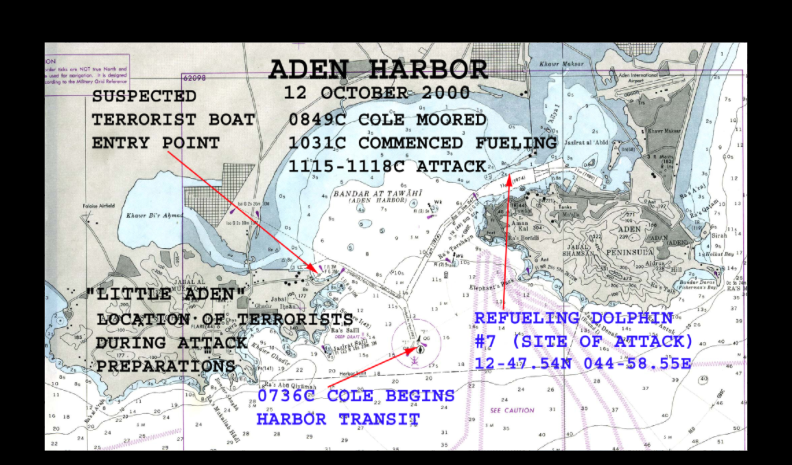

 20            <Viewpoint description='Entire Harbor' position='0 0.1 4'/>
 21            <Viewpoint description='Close Up of Area of Interest' position='0 .5 2'/>
 22            <Transform>
 23                 <Shape>
 24                      <!-- TODO: Make into IndexedFaceSet -->
 25                      <Box size='5 2.9048 0.01'/>
 26                      <Appearance>
 27                           <ImageTexture   url=' "NIMA62098.jpg " "https://www.web3d.org/x3d/content/examples/Savage/Scenarios/UssColeTerroristAttack/NIMA62098.jpg " '/>
 28                      </Appearance>
 29                 </Shape>
 30            </Transform>
 31       </Scene>
 32  </X3D>
<!--
