X3D Model Documentation: EhimeMaru.x3d

1	`<?xml version="1.0" encoding="UTF-8"?>`
2	`<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">`
3	<X3D profile='Immersive' version='3.0' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'>
4	<head>
5	<!-- The bow thrusters are taken from a fan and grate example from Chapter 18 of the VRML2.0 Sourcebook by Ames, Nadeau and MoreLand. -->
6	<!-- All other textures are the creation of the Author or are in the public domain. -->
7	<meta name='title' content=' EhimeMaru.x3d '/>
8	<meta name='description' content='Model of Japanese trawler sunk by the USS Greeneville.'/>
9	<meta name='creator' content='Andrew Wiest'/>
10	<meta name='translator' content='X3d-Edit'/>
11	<meta name='created' content='9 May 2001'/>
12	<meta name='modified' content='20 October 2019'/>
13	<meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/Savage/ShipsCivilian/Trawlers/EhimeMaru.x3d '/>
14	<meta name='generator' content='X3D-Edit 3.2, https://www.web3d.org/x3d/tools/X3D-Edit'/>
15	<meta name='reference' content=' http://lib1.nippon-foundation.or.jp/1997/0834/contents/137.htm '/>
16	<meta name='photo' content='EhimeMaru137-1.jpg'/>

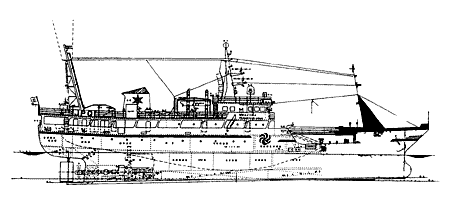

17	<meta name='photo' content='EhimeMaru137-2.gif'/>
18	<meta name='reference' content='http://www.nytimes.com/images/2001/03/08/national/010308_nat_subHAWAIIch.gif'/>
19	<meta name='reference' content=' http://www.cpf.navy.mil/pages/legal/foia/Exhibit_52.pdf '/>
20	<meta name='reference' content=' http://www.cpf.navy.mil/pages/legal/foia/Exhibit_54_pages_1_7.pdf '/>
21	<meta name='reference' content=' http://www.cpf.navy.mil/pages/legal/foia/Exhibit_54_pages_8_14.pdf '/>
22	<meta name='reference' content='http://www.uscg.mil/d14/news_release/2001/Feb2001.htm#32-01'/>
23	<meta name='reference' content=' http://www.cnn.com/video/us/2001/02/18/vo.sunk.ship.navy.html '/>
24	<meta name='reference' content=' http://www.usanavy.com/misc/news/ehime_maru.htm '/>
25	<meta name='reference' content=' http://www.ntsb.gov/Pressrel/2001/010302.htm '/>
26	<meta name='reference' content='http://www.uscg.mil/d14/news_release/2001/Mar2001.htm#43-01'/>
27	<meta name='reference' content='http://www.uscg.mil/d14/news_release/2001/Mar2001.htm#42-01'/>
28	<meta name='reference' content='http://www.uscg.mil/d14/news_release/2001/Feb2001.htm#41-01'/>
29	<meta name='reference' content='http://www.uscg.mil/d14/news_release/2001/Feb2001.htm#20-01'/>
30	<meta name='reference' content='http://www.cpf.navy.mil'/>
31	<meta name='reference' content=' http://www.cpf.navy.mil/greeneville.html '/>
32	<meta name='reference' content=' http://www.csp.navy.mil/css1/772/home.html '/>
33	<meta name='reference' content=' http://www.cpf.navy.mil/greenevilleimages.html '/>
34	<meta name='reference' content=' http://www.chinfo.navy.mil/navpalib/factfile/ShipsCivilian/ship-ssn.html '/>
35	<meta name='reference' content=' http://www.pbs.org/wgbh/nova/subsecrets/inside.html '/>
36	<meta name='reference' content=' http://www.nytimes.com/2001/03/09/national/09HAWA.html '/>
37	<meta name='reference' content=' http://www.cnn.com/2001/US/03/08/japan.sub.03/index.html '/>
38	<meta name='reference' content=' http://www.cnn.com/SPECIALS/2001/sub.collision/session1.html '/>
39	<meta name='reference' content='https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Chapter18-TextureMapping/Figure18.27RotatingFanAnimatedTextureTransform.wrl'/>
40	<meta name='license' content='../../license.html'/>
41	</head>

<!--

Event Graph ROUTE Table shows event connections.

-->
<!--

DEF nodes index: ABar1, ABar2, ABar3, ABar4, ABar5, ABar6, AftBoatSupport, AftBridgeWindows, AftDeck, AftMassHorizontalBars, AftMast, AftMastAngledBars, AftMastColumn, AftMastCrossbar, AftShipName, Bar1, Bar2, Bar3, Bar4, Bar5, Bar6, Bar7, Bar8, blade, BowThrusterImage, BowThrusters, Box1, Box2, Box3, Bridge1, Bridge2, BridgeRoof, BridgeWindows, BridgeWindowShape, CookieCutterPost, CrossbarForwardMast, Cylinder1, Cylinder2, DomeRadar, DriveShaft, EhimeMaruDeckColor, EhimeMaruDeckSkin, EhimeMaruParentTransform, EhimeMaruRoofColor, EhimeMaruSideSwirlSymbol, EhimeMaruSmokeStackStar, EhimeMaruTopTransform, EhimeMaruWhite, endcap, ForwardBoatSupport, ForwardDeck, ForwardMast, FrontBridgeWindows, FwdBox1, FwdCylinder1, FwdCylinder2, FwdCylinder3, FwdSupport, HorizontalMidMast1, HorizontalMidMast2, HorizontalRudderSupport, HullCoordinates, HullRed, LeftSideSwirl, LowerHull, LowerRadarInterpolator, LowerRadarTimeSource, MainDeck, MainRoof, Masts, Midmast, PitchTransform, PortBridgeWindows, PortShipName, PortSidePosts, PortSupport, PortThruster, PropAssembly, Propeller, PropRotationInterpolator, PropTimerSource, RadarAntennaLower, RadarAntennaTop, RadarHousing, RadarMast1, RadarMast2, RadarMastSupport, radarPost, RadarsupportLower, RadarsupportTop, RadarXmitterBlue, RescueBoat, RescueBoatParentNode, RightSideSwirl, RollTransform, RotatingLowerRadar, RotatingTopRadar, Rudder, RudderAssembly, RunningPosts, ScaleTransform, screw_color, ShipName, ShipNameText, SideSwirlHolders, SmokeStack, SmokeStackBottom, SmokeStackBottomPoints, SmokeStackTopPart1, SmokeStackTopPart2, SSLeftSide, SSRestofSides, SSRightSide, StbdBridgeWindows, StbdShipName, StbdSidePosts, StbdSupport, StbdThruster, StructuresOnDeck, SuperStructure1, TopRadarInterpolator, TopRadarTImeSource, TopsideCylinder, TransparentBoxForExaminationStability, UpperHull, VerticalForwardMast1, VerticalForwardMast2, VerticalMidMast1, VerticalMidMast2, VerticalMidMast3, VerticalRudderSupport, Wires, YawTransform

Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2

-->

42	<Scene>
43	<NavigationInfo speed='10'/>
44	<Background skyAngle='1.57' skyColor='0.6 0.8 0.6 0.6 0.6 0.6'/>

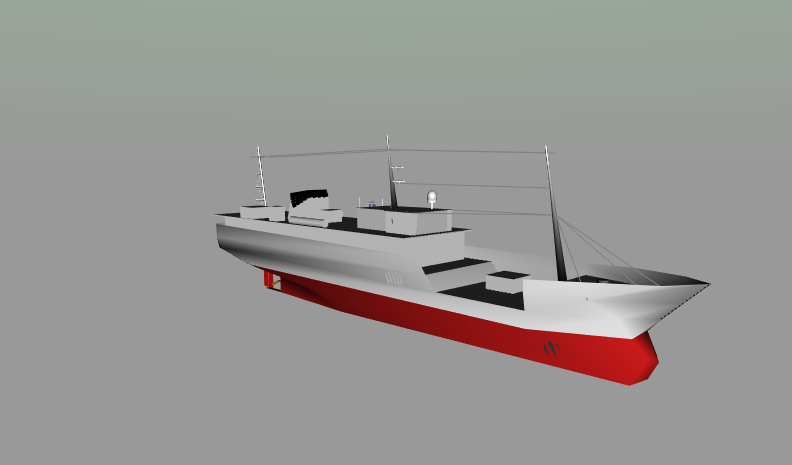

45	<Viewpoint description='Ehime Maru starboard quarter' orientation='-0.140128 0.988431 0.058043 0.79366' position='40 12 40'/>
46	<Viewpoint description='Ehime Maru from behind' orientation='0 1 0 -1.57' position='-50 6 0'/>
47	<Transform translation='0 5 0'>
48	<Shape DEF='TransparentBoxForExaminationStability'>
49	<Box size='60 20 12'/>
50	<Appearance>
51	<Material transparency='1'/>
52	</Appearance>
53	</Shape>
54	</Transform>
55	<Transform DEF='EhimeMaruTopTransform'>
56	<Transform DEF='RollTransform'>
57	<Transform DEF='PitchTransform'>
58	<Transform DEF='YawTransform'>
59	<Transform DEF='ScaleTransform' scale='1.41213592233 1.41213592233 1.41213592233'>
60	<Transform DEF='EhimeMaruParentTransform'>
61	<Transform DEF='LowerHull'>
62	<Shape>
63	<IndexedFaceSet creaseAngle='2' coordIndex='1 2 3 54 4 5 -1 1 6 2 -1 7 2 6 -1 7 8 3 2 -1 8 9 3 -1 1 5 6 -1 12 6 5 -1 5 4 11 12 -1 4 10 11 -1 6 14 15 7 -1 6 13 14 -1 6 12 20 21 -1 6 21 13 -1 15 16 8 7 -1 16 17 9 8 -1 11 10 18 19 -1 19 20 12 11 -1 54 3 56 -1 56 4 54 -1 56 3 55 -1 57 4 56 -1 10 4 57 -1 3 9 55 -1 18 58 17 -1 58 56 55 -1 58 57 56 -1 57 58 18 -1 10 57 18 -1 17 58 55 -1 17 55 9 -1'>
64	<!-- Coordinate HullCoordinates is a DEF node that has 4 USE nodes: USE_1, USE_2, USE_3, USE_4 --> <Coordinate DEF='HullCoordinates' point='0 0 0 -15 -3 0 -5 -2.8 -1 17.5 -2.4 -1 17.5 -2.4 1 -5 -2.8 1 -15 -1 0 -5 -1 -3 12.8 -1 -3 17.5 -1 -1 17.5 -1 1 12.8 -1 3 -5 -1 3 -19.3 0 0 -18 0 -2 -15 0 -3.2 12.8 0 -3.2 17.5 0 -1 17.5 0 1 12.8 0 3.2 -15 0 3.2 -18 0 2 -20 1 0 -20 1 -3.3 12.8 1 -3.3 15 1 -2.5 17 1 -1.5 18.5 1 0 17 1 1.5 15 1 2.5 12.8 1 3.3 -20 1 3.3 -20.6 2 0 -20.6 2 -3 -20 2 -3.5 12.8 2 -3.5 16 2 -2.8 19.5 2 0 16 2 2.8 12.8 2 3.5 -20 2 3.5 -20.6 2 3 -20.6 3.2 0 -20.6 3.2 -3 -20 3.2 -3.5 12.8 2.7 -3.5 16 2.9 -2.8 19 3 -1.6 20.6 3.1 0 19 3 1.6 16 2.9 2.8 12.8 2.7 3.5 -20 3.2 3.5 -20.6 3.2 3 18 -2.2 0 18.2 -1 -0.5 18.5 -1.2 0 18.2 -1 0.5 18.2 -0.7 0 5.3 3 3.5 6 2 3.5 6.7 1 3.3 5.5 3 -3.5 7 1 -3.3 6 2 -3.5'/>
65	</IndexedFaceSet>
66	<Appearance>
67	<!-- Material HullRed is a DEF node that has 4 USE nodes: USE_1, USE_2, USE_3, USE_4 --> <Material DEF='HullRed' diffuseColor='.8 .1 .1'/>
68	</Appearance>
69	</Shape>
70	</Transform>
71	<Transform DEF='UpperHull'>
72	<Shape>
73	<IndexedFaceSet creaseAngle='2' solid='false' coordIndex='31 21 20 -1 13 21 31 -1 13 31 22 -1 13 22 23 -1 23 14 13 -1 23 15 14 -1 23 24 16 15 -1 16 24 25 -1 16 25 26 -1 26 17 16 -1 17 26 27 -1 19 29 30 -1 19 28 29 -1 19 18 28 -1 18 27 28 -1 18 17 27 -1 30 31 20 19 -1 32 33 23 22 -1 22 31 41 32 -1 33 34 23 -1 40 41 31 -1 34 35 24 23 -1 35 36 25 24 -1 36 26 25 -1 36 37 27 26 -1 37 38 28 27 -1 29 28 38 -1 30 29 38 39 -1 60 40 31 61 -1 42 43 33 32 -1 32 41 53 42 -1 43 44 34 33 -1 41 40 52 53 -1 44 45 35 34 -1 45 46 36 35 -1 46 47 36 -1 47 48 37 36 -1 48 49 38 37 -1 49 50 38 -1 50 51 39 38 -1 59 52 40 60 -1'>
74	<Coordinate USE='HullCoordinates'/>
75	</IndexedFaceSet>
76	<Appearance>
77	<!-- Material EhimeMaruWhite is a DEF node that has 46 USE nodes: USE_1, USE_2, USE_3, USE_4, USE_5, USE_6, USE_7, USE_8, USE_9, USE_10, USE_11, USE_12, USE_13, USE_14, USE_15, USE_16, USE_17, USE_18, USE_19, USE_20, USE_21, USE_22, USE_23, USE_24, USE_25, USE_26, USE_27, USE_28, USE_29, USE_30, USE_31, USE_32, USE_33, USE_34, USE_35, USE_36, USE_37, USE_38, USE_39, USE_40, USE_41, USE_42, USE_43, USE_44, USE_45, USE_46 --> <Material DEF='EhimeMaruWhite' diffuseColor='1 1 1'/>
78	</Appearance>
79	</Shape>
80	</Transform>
81	<Transform DEF='MainDeck' scale='.99 .99 .99' translation='0 -.05 0'>
82	<Shape>
83	<IndexedFaceSet solid='false' coordIndex='22 23 24 25 26 27 28 29 30 31 22 -1'>
84	<Coordinate USE='HullCoordinates'/>
85	</IndexedFaceSet>
86	<Appearance>
87	<!-- Material EhimeMaruDeckColor is a DEF node that has 1 USE node: USE_1 --> <Material DEF='EhimeMaruDeckColor' diffuseColor='.6 .5 .4'/>
88	<!-- ImageTexture EhimeMaruDeckSkin is a DEF node that has 5 USE nodes: USE_1, USE_2, USE_3, USE_4, USE_5 --> <ImageTexture DEF='EhimeMaruDeckSkin' url=' "EhimeMaruLargeDeckSkin.gif " "https://www.web3d.org/x3d/content/examples/Savage/ShipsCivilian/Trawlers/EhimeMaruLargeDeckSkin.gif " '/>
89	</Appearance>
90	</Shape>
91	</Transform>
92	<Transform DEF='ForwardDeck' center='16 0 0' scale='.99 .99 .99'>
93	<Shape>
94	<IndexedFaceSet solid='false' coordIndex='35 36 37 38 39 35 -1 24 30 39 35 24 -1'>
95	<Coordinate USE='HullCoordinates'/>
96	</IndexedFaceSet>
97	<Appearance>
98	<Material diffuseColor='.4 .3 .2'/>
99	<ImageTexture USE='EhimeMaruDeckSkin'/>
100	</Appearance>
101	</Shape>
102	</Transform>
103	<Transform DEF='AftDeck' scale='.99 .99 .99'>
104	<Shape>
105	<IndexedFaceSet creaseAngle='1' solid='false' coordIndex='60 64 63 61 60 -1 60 64 34 33 32 41 40 60 -1'>
106	<Coordinate USE='HullCoordinates'/>
107	</IndexedFaceSet>
108	<Appearance>
109	<Material USE='EhimeMaruDeckColor'/>
110	<ImageTexture USE='EhimeMaruDeckSkin'/>
111	</Appearance>
112	</Shape>
113	</Transform>
114	<Transform DEF='SuperStructure1' translation='-7.9 3 0'>
115	<Shape>
116	<Appearance>
117	<Material USE='EhimeMaruWhite'/>
118	</Appearance>
119	<Box size='24 2 5.4'/>
120	</Shape>
121	</Transform>
122	<Transform DEF='MainRoof' translation='-8.2 4.0 0'>
123	<Shape>
124	<Appearance>
125	<!-- Material EhimeMaruRoofColor is a DEF node that has 1 USE node: USE_1 --> <Material DEF='EhimeMaruRoofColor' diffuseColor='.7 .6 .5'/>
126	<ImageTexture USE='EhimeMaruDeckSkin'/>
127	</Appearance>
128	<Box size='24.7 .1 7'/>
129	</Shape>
130	</Transform>
131	<Transform DEF='Bridge1' translation='0.5 4.5 0'>
132	<Shape>
133	<Box size='5.99 1.99 3'/>
134	<Appearance>
135	<Material diffuseColor='.9 .9 .9'/>
136	</Appearance>
137	</Shape>
138	<Transform DEF='AftBridgeWindows' translation='-1 0 0'>
139	<Transform rotation='0 1 0 -1.570796' translation='0.3 0.35 -1.5'>
140	<!-- Shape BridgeWindowShape is a DEF node that has 13 USE nodes: USE_1, USE_2, USE_3, USE_4, USE_5, USE_6, USE_7, USE_8, USE_9, USE_10, USE_11, USE_12, USE_13 --> <Shape DEF='BridgeWindowShape'>
141	<Appearance>
142	<Material diffuseColor='0.1 0.1 0.4' transparency='.4'/>
143	</Appearance>
144	<Box size='0.1 0.3 0.5'/>
145	</Shape>
146	</Transform>
147	<Transform rotation='0 1 0 -1.570796' translation='0.3 0.35 1.5'>
148	<Shape USE='BridgeWindowShape'/>
149	</Transform>
150	<Transform rotation='0 1 0 -1.570796' translation='-0.5 0.35 -1.5'>
151	<Shape USE='BridgeWindowShape'/>
152	</Transform>
153	<Transform rotation='0 1 0 -1.570796' translation='-0.5 0.35 1.5'>
154	<Shape USE='BridgeWindowShape'/>
155	</Transform>
156	</Transform>
157	</Transform>
158	<Transform DEF='Bridge2' translation='2.25 4.5 0'>
159	<Shape>
160	<Box size='2.5 1.99 4'/>
161	<Appearance>
162	<Material USE='EhimeMaruWhite'/>
163	</Appearance>
164	</Shape>
165	<Transform DEF='BridgeWindows'>
166	<Transform DEF='FrontBridgeWindows' rotation='0 0 1 -0.07' translation='1.22 0.35 0'>
167	<Transform>
168	<Shape USE='BridgeWindowShape'/>
169	</Transform>
170	<Transform translation='0 0 -0.57'>
171	<Shape USE='BridgeWindowShape'/>
172	</Transform>
173	<Transform translation='0 0 -1.14'>
174	<Shape USE='BridgeWindowShape'/>
175	</Transform>
176	<Transform translation='0 0 -1.71'>
177	<Shape USE='BridgeWindowShape'/>
178	</Transform>
179	<Transform translation='0 0 0.57'>
180	<Shape USE='BridgeWindowShape'/>
181	</Transform>
182	<Transform translation='0 0 1.14'>
183	<Shape USE='BridgeWindowShape'/>
184	</Transform>
185	<Transform translation='0 0 1.71'>
186	<Shape USE='BridgeWindowShape'/>
187	</Transform>
188	</Transform>
189	<!-- Transform PortBridgeWindows is a DEF node that has 1 USE node: USE_1 --> <Transform DEF='PortBridgeWindows' rotation='0 1 0 -1.570796' translation='0 0.35 2'>
190	<Transform translation='0 0 -0.57'>
191	<Shape USE='BridgeWindowShape'/>
192	</Transform>
193	<Transform>
194	<Shape USE='BridgeWindowShape'/>
195	</Transform>
196	<Transform translation='0 0 0.57'>
197	<Shape USE='BridgeWindowShape'/>
198	</Transform>
199	</Transform>
200	<Transform DEF='StbdBridgeWindows' translation='0 0 -4'>
201	<Transform USE='PortBridgeWindows'/>
202	</Transform>
203	</Transform>
204	</Transform>
205	<Transform DEF='BridgeRoof' translation='0 -0.5 0'>
206	<Shape>
207	<Appearance>
208	<Material USE='EhimeMaruRoofColor'/>
209	<ImageTexture USE='EhimeMaruDeckSkin'/>
210	</Appearance>
211	<IndexedFaceSet solid='false' coordIndex='0 1 2 3 4 5 6 7'>
212	<Coordinate point='-2.6 6 -1.6 0.9 6 -1.6 0.9 6 -2.1 3.6 6 -2.1 3.6 6 2.1 0.9 6 2.1 0.9 6 1.6 -2.6 6 1.6'/>
213	</IndexedFaceSet>
214	</Shape>
215	</Transform>
216	<Transform DEF='SmokeStack' translation='0 -1.0 0'>
217	<Transform DEF='SmokeStackBottom'>
218	<Shape DEF='SSLeftSide'>
219	<Appearance>
220	<Material USE='EhimeMaruWhite'/>
221	<!-- ImageTexture EhimeMaruSmokeStackStar is a DEF node that has 1 USE node: USE_1 --> <ImageTexture DEF='EhimeMaruSmokeStackStar' url=' "EhimeMaruSmokeStackStar.jpg " "https://www.web3d.org/x3d/content/examples/Savage/ShipsCivilian/Trawlers/EhimeMaruSmokeStackStar.jpg " '/>
222	</Appearance>
223	<IndexedFaceSet coordIndex='5 6 7 8 -1'>
224	<!-- Coordinate SmokeStackBottomPoints is a DEF node that has 2 USE nodes: USE_1, USE_2 --> <Coordinate DEF='SmokeStackBottomPoints' point='0 0 0 -12.5 4 1 -11.5 7 1 -9 7 1 -9 4 1 -12.5 4 -1 -11.5 7 -1 -9 7 -1 -9 4 -1'/>
225	</IndexedFaceSet>
226	</Shape>
227	<Shape DEF='SSRightSide'>
228	<Appearance>
229	<Material USE='EhimeMaruWhite'/>
230	<ImageTexture USE='EhimeMaruSmokeStackStar'/>
231	</Appearance>
232	<IndexedFaceSet coordIndex='1 4 3 2 -1'>
233	<Coordinate USE='SmokeStackBottomPoints'/>
234	</IndexedFaceSet>
235	</Shape>
236	<Shape DEF='SSRestofSides'>
237	<Appearance>
238	<Material USE='EhimeMaruWhite'/>
239	</Appearance>
240	<IndexedFaceSet coordIndex='8 7 3 4 -1 1 2 6 5 -1 2 3 7 6 -1'>
241	<Coordinate USE='SmokeStackBottomPoints'/>
242	</IndexedFaceSet>
243	</Shape>
244	</Transform>
245	<Transform DEF='SmokeStackTopPart1' rotation='0 0 1 0.4' translation='-10.3 6.79 0'>
246	<Shape>
247	<Box size='2.52 .62 1.99'/>
248	<Appearance>
249	<Material diffuseColor='0 0 0'/>
250	</Appearance>
251	</Shape>
252	</Transform>
253	<Transform DEF='SmokeStackTopPart2' rotation='0 0 1 0.13' translation='-10.45 7.1 0'>
254	<Shape>
255	<Box size='2.45 0.6 1.99'/>
256	<Appearance>
257	<Material diffuseColor='0 0 0'/>
258	</Appearance>
259	</Shape>
260	</Transform>
261	</Transform>
262	<Transform DEF='SideSwirlHolders'>
263	<Transform DEF='RightSideSwirl'>
264	<Shape>
265	<IndexedFaceSet solid='false' coordIndex='4 3 2 1 -1'>
266	<Coordinate point='0 0 0 2.5 1 3.4 2.5 2.5 3.55 4 2.5 3.55 4 1 3.4'/>
267	</IndexedFaceSet>
268	<Appearance>
269	<Material USE='EhimeMaruWhite'/>
270	<!-- ImageTexture EhimeMaruSideSwirlSymbol is a DEF node that has 1 USE node: USE_1 --> <ImageTexture DEF='EhimeMaruSideSwirlSymbol' url=' "EhimeMaruSideSwirlSymbol.jpg " "https://www.web3d.org/x3d/content/examples/Savage/ShipsCivilian/Trawlers/EhimeMaruSideSwirlSymbol.jpg " '/>
271	</Appearance>
272	</Shape>
273	</Transform>
274	<Transform DEF='LeftSideSwirl'>
275	<Shape>
276	<IndexedFaceSet solid='false' coordIndex='1 2 3 4 -1'>
277	<Coordinate point='0 0 0 2.5 1 -3.4 2.5 2.5 -3.55 4 2.5 -3.55 4 1 -3.4'/>
278	</IndexedFaceSet>
279	<Appearance>
280	<Material USE='EhimeMaruWhite'/>
281	<ImageTexture USE='EhimeMaruSideSwirlSymbol'/>
282	</Appearance>
283	</Shape>
284	</Transform>
285	</Transform>
286	<Transform DEF='RunningPosts'>
287	<Transform DEF='StbdSidePosts' translation='0 -0.53 0'>
288	<Transform translation='-19.78 3.9 3.4'>
289	<!-- Transform CookieCutterPost is a DEF node that has 21 USE nodes: USE_1, USE_2, USE_3, USE_4, USE_5, USE_6, USE_7, USE_8, USE_9, USE_10, USE_11, USE_12, USE_13, USE_14, USE_15, USE_16, USE_17, USE_18, USE_19, USE_20, USE_21 --> <Transform DEF='CookieCutterPost'>
290	<Transform rotation='0 0 1 -0.3' translation='0 .05 0'>
291	<Shape>
292	<Box size='0.2 1.2 0.1'/>
293	<Appearance>
294	<Material USE='EhimeMaruWhite'/>
295	</Appearance>
296	</Shape>
297	</Transform>
298	</Transform>
299	</Transform>
300	<Transform translation='-17.5 3.9 3.4'>
301	<Transform USE='CookieCutterPost'/>
302	</Transform>
303	<Transform translation='-15.5 3.9 3.4'>
304	<Transform USE='CookieCutterPost'/>
305	</Transform>
306	<Transform translation='-13 3.9 3.4'>
307	<Transform USE='CookieCutterPost'/>
308	</Transform>
309	<Transform scale='1 1.2 1' translation='-10.5 3.78 3.4'>
310	<Transform USE='CookieCutterPost'/>
311	</Transform>
312	<Transform scale='1 1.2 1' translation='-8.3 3.78 3.4'>
313	<Transform USE='CookieCutterPost'/>
314	</Transform>
315	<Transform scale='1 1.2 1' translation='-6 3.78 3.4'>
316	<Transform USE='CookieCutterPost'/>
317	</Transform>
318	<Transform scale='1 1.2 1' translation='-3.9 3.78 3.4'>
319	<Transform USE='CookieCutterPost'/>
320	</Transform>
321	<Transform scale='1 1.2 1' translation='-1.5 3.78 3.4'>
322	<Transform USE='CookieCutterPost'/>
323	</Transform>
324	<Transform scale='1 1.3 1' translation='0.9 3.72 3.4'>
325	<Transform USE='CookieCutterPost'/>
326	</Transform>
327	<Transform scale='1 1.3 1' translation='3.2 3.72 3.4'>
328	<Transform USE='CookieCutterPost'/>
329	</Transform>
330	</Transform>
331	<Transform DEF='PortSidePosts' translation='0 -0.53 0'>
332	<Transform translation='-19.78 3.9 -3.4'>
333	<Transform USE='CookieCutterPost'/>
334	</Transform>
335	<Transform translation='-17.5 3.9 -3.4'>
336	<Transform USE='CookieCutterPost'/>
337	</Transform>
338	<Transform scale='1 1.1 1' translation='-15.5 3.8 -3.4'>
339	<Transform USE='CookieCutterPost'/>
340	</Transform>
341	<Transform scale='1 1.1 1' translation='-13 3.85 -3.4'>
342	<Transform USE='CookieCutterPost'/>
343	</Transform>
344	<Transform scale='1 1.2 1' translation='-10.5 3.78 -3.4'>
345	<Transform USE='CookieCutterPost'/>
346	</Transform>
347	<Transform scale='1 1.2 1' translation='-8.3 3.78 -3.4'>
348	<Transform USE='CookieCutterPost'/>
349	</Transform>
350	<Transform scale='1 1.2 1' translation='-6 3.78 -3.4'>
351	<Transform USE='CookieCutterPost'/>
352	</Transform>
353	<Transform scale='1 1.3 1' translation='-3.9 3.7 -3.4'>
354	<Transform USE='CookieCutterPost'/>
355	</Transform>
356	<Transform scale='1 1.4 1' translation='-1.5 3.65 -3.4'>
357	<Transform USE='CookieCutterPost'/>
358	</Transform>
359	<Transform scale='1 1.4 1' translation='0.9 3.65 -3.4'>
360	<Transform USE='CookieCutterPost'/>
361	</Transform>
362	<Transform scale='1 1.4 1' translation='3.2 3.65 -3.4'>
363	<Transform USE='CookieCutterPost'/>
364	</Transform>
365	</Transform>
366	</Transform>
367	<Transform DEF='Masts'>
368	<Transform DEF='ForwardMast' rotation='0 0 1 0.174' translation='12.5 5.8 0'>
369	<Transform DEF='VerticalForwardMast1'>
370	<Shape>
371	<Cone bottom='false' bottomRadius='.25' height='7.8'/>
372	<Appearance>
373	<Material USE='EhimeMaruWhite'/>
374	</Appearance>
375	</Shape>
376	</Transform>
377	<!-- Transform CrossbarForwardMast is a DEF node that has 2 USE nodes: USE_1, USE_2 --> <Transform DEF='CrossbarForwardMast' rotation='1 0 0 1.57079' translation='0 3.5 0'>
378	<Shape>
379	<Cylinder radius='.02'/>
380	<Appearance>
381	<Material USE='EhimeMaruWhite'/>
382	</Appearance>
383	</Shape>
384	</Transform>
385	<Transform DEF='VerticalForwardMast2'>
386	<Shape>
387	<Cylinder bottom='false' height='7.8' radius='.05'/>
388	<Appearance>
389	<Material USE='EhimeMaruWhite'/>
390	</Appearance>
391	</Shape>
392	</Transform>
393	</Transform>
394	<Transform DEF='Wires'>
395	<Shape>
396	<IndexedLineSet coordIndex='0 1 -1 0 2 -1 0 3 -1 0 4 -1 0 5 -1 6 7 -1 9 11 -1 8 10 -1 10 12 -1 11 13 -1'>
397	<Coordinate point='12.6 5.8 0 16 2 -2.8 19.5 2 0 16 2 2.8 3.5 5.5 2 3.5 5.5 -2 12.2 7.3 0 0 7.3 0 11.9 9.25 0.95 11.9 9.25 -0.95 -0.76 9.67 0.95 -0.76 9.67 -0.95 -18 9.33 0.99 -18 9.33 -0.99'/>
398	</IndexedLineSet>
399	<Appearance>
400	<Material emissiveColor='.5 .5 .5'/>
401	</Appearance>
402	</Shape>
403	</Transform>
404	<Transform DEF='Midmast' rotation='0 0 1 0.15' translation='-0.5 8 0'>
405	<Transform DEF='VerticalMidMast1'>
406	<Shape>
407	<Cone bottom='false' bottomRadius='0.23' height='5.5'/>
408	<Appearance>
409	<Material USE='EhimeMaruWhite'/>
410	</Appearance>
411	</Shape>
412	</Transform>
413	<Transform DEF='VerticalMidMast2'>
414	<Shape>
415	<Cylinder bottom='false' height='5.5' radius='.05'/>
416	<Appearance>
417	<Material USE='EhimeMaruWhite'/>
418	</Appearance>
419	</Shape>
420	</Transform>
421	<Transform DEF='VerticalMidMast3' rotation='0 0 1 -0.174' translation='0 -2 0'>
422	<Shape>
423	<Appearance>
424	<Material USE='EhimeMaruWhite'/>
425	</Appearance>
426	<Cone bottom='false' bottomRadius='.3' height='1.2'/>
427	</Shape>
428	</Transform>
429	<!-- Transform HorizontalMidMast1 is a DEF node that has 1 USE node: USE_1 --> <Transform DEF='HorizontalMidMast1' translation='0 -1.8 0'>
430	<Transform USE='CrossbarForwardMast'/>
431	</Transform>
432	<Transform DEF='HorizontalMidMast2' translation='0 -1.3 0'>
433	<Transform USE='HorizontalMidMast1'/>
434	</Transform>
435	<Transform DEF='RadarMast1' rotation='0 0 1 -0.15'>
436	<!-- Transform RadarMastSupport is a DEF node that has 1 USE node: USE_1 --> <Transform DEF='RadarMastSupport' translation='0.5 -0.7 0'>
437	<Shape>
438	<Box size='1 0.02 0.2'/>
439	<Appearance>
440	<Material USE='EhimeMaruWhite'/>
441	</Appearance>
442	</Shape>
443	</Transform>
444	</Transform>
445	<Transform DEF='RadarMast2' rotation='0 0 1 -0.15' translation='0 1 0'>
446	<Transform USE='RadarMastSupport'/>
447	</Transform>
448	<Transform DEF='RadarsupportTop' rotation='0 0 1 -0.15' translation='0.75 0.24 0'>
449	<Shape>
450	<Appearance>
451	<Material USE='EhimeMaruWhite'/>
452	</Appearance>
453	<Cylinder bottom='false' height='.1' radius='.03' top='false'/>
454	</Shape>
455	</Transform>
456	<Transform DEF='RadarsupportLower' rotation='0 0 1 -0.15' translation='0.75 -0.76 0'>
457	<Shape>
458	<Appearance>
459	<Material USE='EhimeMaruWhite'/>
460	</Appearance>
461	<Cylinder bottom='false' height='.1' radius='.03' top='false'/>
462	</Shape>
463	</Transform>
464	</Transform>
465	<Transform DEF='AftMast' translation='0 -1.2 0'>
466	<Transform DEF='PortSupport' rotation='1 0 0 0.11' translation='-18.1 6.5 -.5'>
467	<!-- Shape AftMastColumn is a DEF node that has 2 USE nodes: USE_1, USE_2 --> <Shape DEF='AftMastColumn'>
468	<Appearance>
469	<Material USE='EhimeMaruWhite'/>
470	</Appearance>
471	<Cylinder bottom='false' height='9' radius='.05'/>
472	</Shape>
473	</Transform>
474	<Transform DEF='StbdSupport' rotation='1 0 0 -0.11' translation='-18.1 6.5 .5'>
475	<Shape USE='AftMastColumn'/>
476	</Transform>
477	<Transform DEF='FwdSupport' rotation='0 0 1 0.19' scale='1.5 1 1.5' translation='-17.35 7.1 0'>
478	<Shape USE='AftMastColumn'/>
479	</Transform>
480	<Transform DEF='AftMastCrossbar' scale='1.3 1.3 1.0' translation='-18 6 0'>
481	<Transform USE='CrossbarForwardMast'/>
482	</Transform>
483	<Transform DEF='AftMassHorizontalBars' translation='-18 7 0'>
484	<Transform DEF='Bar1' rotation='0 1 0 0.5' translation='0.11 2 0.11'>
485	<Transform rotation='0 0 1 -1.570796'>
486	<Shape>
487	<Appearance>
488	<Material USE='EhimeMaruWhite'/>
489	</Appearance>
490	<Cylinder bottom='false' height='.5' radius='.04' top='false'/>
491	</Shape>
492	</Transform>
493	</Transform>
494	<Transform DEF='Bar2' rotation='0 1 0 -0.5' translation='0.11 2 -0.11'>
495	<Transform rotation='0 0 1 -1.570796'>
496	<Shape>
497	<Appearance>
498	<Material USE='EhimeMaruWhite'/>
499	</Appearance>
500	<Cylinder bottom='false' height='.5' radius='.04' top='false'/>
501	</Shape>
502	</Transform>
503	</Transform>
504	<Transform DEF='Bar3' rotation='0 1 0 0.5' translation='0.20 0.8 0.2'>
505	<Transform rotation='0 0 1 -1.570796'>
506	<Shape>
507	<Appearance>
508	<Material USE='EhimeMaruWhite'/>
509	</Appearance>
510	<Cylinder bottom='false' height='.7' radius='.04' top='false'/>
511	</Shape>
512	</Transform>
513	</Transform>
514	<Transform DEF='Bar4' rotation='0 1 0 -0.5' translation='0.2 0.8 -0.2'>
515	<Transform rotation='0 0 1 -1.570796'>
516	<Shape>
517	<Appearance>
518	<Material USE='EhimeMaruWhite'/>
519	</Appearance>
520	<Cylinder bottom='false' height='.7' radius='.04' top='false'/>
521	</Shape>
522	</Transform>
523	</Transform>
524	<Transform DEF='Bar5' rotation='0 1 0 0.5' translation='0.36 -0.4 0.24'>
525	<Transform rotation='0 0 1 -1.570796'>
526	<Shape>
527	<Appearance>
528	<Material USE='EhimeMaruWhite'/>
529	</Appearance>
530	<Cylinder bottom='false' height='0.95' radius='.04' top='false'/>
531	</Shape>
532	</Transform>
533	</Transform>
534	<Transform DEF='Bar6' rotation='0 1 0 -0.5' translation='0.36 -0.4 -0.24'>
535	<Transform rotation='0 0 1 -1.570796'>
536	<Shape>
537	<Appearance>
538	<Material USE='EhimeMaruWhite'/>
539	</Appearance>
540	<Cylinder bottom='false' height='0.95' radius='.04' top='false'/>
541	</Shape>
542	</Transform>
543	</Transform>
544	<Transform DEF='Bar7' rotation='0 1 0 0.5' translation='0.42 -1.5 0.31'>
545	<Transform rotation='0 0 1 -1.570796'>
546	<Shape>
547	<Appearance>
548	<Material USE='EhimeMaruWhite'/>
549	</Appearance>
550	<Cylinder bottom='false' height='1.2' radius='.04' top='false'/>
551	</Shape>
552	</Transform>
553	</Transform>
554	<Transform DEF='Bar8' rotation='0 1 0 -0.5' translation='0.42 -1.5 -0.31'>
555	<Transform rotation='0 0 1 -1.570796'>
556	<Shape>
557	<Appearance>
558	<Material USE='EhimeMaruWhite'/>
559	</Appearance>
560	<Cylinder bottom='false' height='1.2' radius='.04' top='false'/>
561	</Shape>
562	</Transform>
563	</Transform>
564	</Transform>
565	<Transform DEF='AftMastAngledBars' translation='-18 7 0'>
566	<Transform DEF='ABar1' rotation='0 1 0 0.75' translation='0.10 1.4 0.2'>
567	<Transform rotation='0 0 1 -0.35'>
568	<Shape>
569	<Appearance>
570	<Material USE='EhimeMaruWhite'/>
571	</Appearance>
572	<Cylinder bottom='false' height='1.3' radius='.02' top='false'/>
573	</Shape>
574	</Transform>
575	</Transform>
576	<Transform DEF='ABar2' rotation='0 1 0 -0.75' translation='0.1 1.4 -0.2'>
577	<Transform rotation='0 0 1 -0.35'>
578	<Shape>
579	<Appearance>
580	<Material USE='EhimeMaruWhite'/>
581	</Appearance>
582	<Cylinder bottom='false' height='1.3' radius='.02' top='false'/>
583	</Shape>
584	</Transform>
585	</Transform>
586	<Transform DEF='ABar3' rotation='0 1 0 0.4' translation='0.32 0.2 0.2'>
587	<Transform rotation='0 0 1 0.6'>
588	<Shape>
589	<Appearance>
590	<Material USE='EhimeMaruWhite'/>
591	</Appearance>
592	<Cylinder bottom='false' height='1.4' radius='.02' top='false'/>
593	</Shape>
594	</Transform>
595	</Transform>
596	<Transform DEF='ABar4' rotation='0 1 0 -0.4' translation='0.32 0.2 -0.2'>
597	<Transform rotation='0 0 1 0.6'>
598	<Shape>
599	<Appearance>
600	<Material USE='EhimeMaruWhite'/>
601	</Appearance>
602	<Cylinder bottom='false' height='1.4' radius='.02' top='false'/>
603	</Shape>
604	</Transform>
605	</Transform>
606	<Transform DEF='ABar5' rotation='0 1 0 0.6' translation='0.35 -0.9 0.3'>
607	<Transform rotation='0 0 1 -0.75'>
608	<Shape>
609	<Appearance>
610	<Material USE='EhimeMaruWhite'/>
611	</Appearance>
612	<Cylinder bottom='false' height='1.5' radius='.02' top='false'/>
613	</Shape>
614	</Transform>
615	</Transform>
616	<Transform DEF='ABar6' rotation='0 1 0 -0.6' translation='0.35 -0.9 -0.3'>
617	<Transform rotation='0 0 1 -0.75'>
618	<Shape>
619	<Appearance>
620	<Material USE='EhimeMaruWhite'/>
621	</Appearance>
622	<Cylinder bottom='false' height='1.5' radius='.02' top='false'/>
623	</Shape>
624	</Transform>
625	</Transform>
626	</Transform>
627	</Transform>
628	<Transform DEF='DomeRadar' scale='.35 .4 .35' translation='2.1 5 -1.5'>
629	<Transform DEF='radarPost'>
630	<Shape>
631	<Cylinder bottom='false' height='5' radius='.2' top='false'/>
632	<Appearance>
633	<Material USE='EhimeMaruWhite'/>
634	</Appearance>
635	</Shape>
636	</Transform>
637	<Transform DEF='RadarHousing' translation='0 3 0'>
638	<Transform translation='0 .5 0'>
639	<Shape>
640	<Sphere/>
641	<Appearance>
642	<Material USE='EhimeMaruWhite'/>
643	</Appearance>
644	</Shape>
645	</Transform>
646	<Transform>
647	<Shape>
648	<Cylinder height='1.2' top='false'/>
649	<Appearance>
650	<Material USE='EhimeMaruWhite'/>
651	</Appearance>
652	</Shape>
653	</Transform>
654	</Transform>
655	</Transform>
656	<!-- ROUTE information for TopRadarInterpolator node: [from TopRadarTImeSource.fraction_changed to set_fraction ] [from value_changed to RadarAntennaTop.set_rotation ] --> <OrientationInterpolator DEF='TopRadarInterpolator' key='0 .25 .5 .75 1' keyValue='0 1 0 0 0 1 0 1.570796 0 1 0 3.14159 0 1 0 4.7124 0 1 0 6.283185'/>
657	<!-- ROUTE information for TopRadarTImeSource node: [from fraction_changed to TopRadarInterpolator.set_fraction ] --> <TimeSensor DEF='TopRadarTImeSource' cycleInterval='7' loop='true'/>
658	<!-- ROUTE information for LowerRadarTimeSource node: [from fraction_changed to LowerRadarInterpolator.set_fraction ] --> <TimeSensor DEF='LowerRadarTimeSource' cycleInterval='5' loop='true'/>
659	<!-- ROUTE information for LowerRadarInterpolator node: [from LowerRadarTimeSource.fraction_changed to set_fraction ] [from value_changed to RadarAntennaLower.set_rotation ] --> <OrientationInterpolator DEF='LowerRadarInterpolator' key='0 .25 .5 .75 1' keyValue='0 1 0 0 0 1 0 1.570796 0 1 0 3.14159 0 1 0 4.7124 0 1 0 6.283185'/>
660	<Transform DEF='RotatingTopRadar' translation='0.22 8.43 0'>
661	<!-- ROUTE information for RadarAntennaTop node: [from TopRadarInterpolator.value_changed to set_rotation ] --> <Transform DEF='RadarAntennaTop'>
662	<Transform rotation='0 0 1 -1.570796'>
663	<Shape>
664	<Appearance>
665	<Material USE='EhimeMaruWhite'/>
666	</Appearance>
667	<Cylinder height='1' radius='0.05'/>
668	</Shape>
669	</Transform>
670	<Transform translation='0 0 .05'>
671	<Shape>
672	<Box size='1 0.1 0.1'/>
673	<Appearance>
674	<Material USE='EhimeMaruWhite'/>
675	</Appearance>
676	</Shape>
677	<Transform translation='0 0 .02'>
678	<Shape>
679	<Appearance>
680	<!-- Material RadarXmitterBlue is a DEF node that has 1 USE node: USE_1 --> <Material DEF='RadarXmitterBlue' diffuseColor='.1 .1 .5' transparency='0.3'/>
681	</Appearance>
682	<Box size='.99 .09 .09'/>
683	</Shape>
684	</Transform>
685	</Transform>
686	</Transform>
687	</Transform>
688	<Transform DEF='RotatingLowerRadar' translation='.35 7.45 0'>
689	<!-- ROUTE information for RadarAntennaLower node: [from LowerRadarInterpolator.value_changed to set_rotation ] --> <Transform DEF='RadarAntennaLower'>
690	<Transform rotation='0 0 1 -1.570796'>
691	<Shape>
692	<Appearance>
693	<Material USE='EhimeMaruWhite'/>
694	</Appearance>
695	<Cylinder height='1' radius='0.05'/>
696	</Shape>
697	</Transform>
698	<Transform translation='0 0 .05'>
699	<Shape>
700	<Box size='1 0.1 0.1'/>
701	<Appearance>
702	<Material USE='EhimeMaruWhite'/>
703	</Appearance>
704	</Shape>
705	<Transform translation='0 0 .02'>
706	<Shape>
707	<Appearance>
708	<Material USE='RadarXmitterBlue'/>
709	</Appearance>
710	<Box size='.99 .09 .09'/>
711	</Shape>
712	</Transform>
713	</Transform>
714	</Transform>
715	</Transform>
716	</Transform>
717	<Transform DEF='RescueBoatParentNode'>
718	<Transform DEF='RescueBoat' scale='.4 .4 .4' translation='-4.2 5 -2.5'>
719	<Inline url=' "../../ShipsMilitary/DestroyerSovremennyRussia/CaptainsBarge.x3d" "https://www.web3d.org/x3d/content/examples/Savage/ShipsMilitary/DestroyerSovremennyRussia/CaptainsBarge.x3d" "../../ShipsMilitary/DestroyerSovremennyRussia/CaptainsBarge.wrl" "https://www.web3d.org/x3d/content/examples/Savage/ShipsMilitary/DestroyerSovremennyRussia/CaptainsBarge.wrl" '/>
720	</Transform>
721	<Transform DEF='ForwardBoatSupport' translation='-3.5 4 -2'>
722	<Shape>
723	<Appearance>
724	<Material USE='EhimeMaruWhite'/>
725	</Appearance>
726	<Cylinder bottom='false' height='4' radius='.02'/>
727	</Shape>
728	</Transform>
729	<Transform DEF='AftBoatSupport' translation='-6.2 4 -2'>
730	<Shape>
731	<Appearance>
732	<Material USE='EhimeMaruWhite'/>
733	</Appearance>
734	<Cylinder bottom='false' height='4' radius='.02'/>
735	</Shape>
736	</Transform>
737	</Transform>
738	<Transform DEF='StructuresOnDeck'>
739	<Transform DEF='Box1' translation='-7.5 4.5 0'>
740	<Shape>
741	<Appearance>
742	<Material USE='EhimeMaruWhite'/>
743	</Appearance>
744	<Box size='1.2 1 1.4'/>
745	</Shape>
746	</Transform>
747	<Transform DEF='Box2' translation='-11.3 4.6 2.6'>
748	<Shape>
749	<Appearance>
750	<Material USE='EhimeMaruWhite'/>
751	</Appearance>
752	<Box size='1. 1.25 .9'/>
753	</Shape>
754	</Transform>
755	<Transform DEF='Box3' translation='-15 4.5 2.3'>
756	<Shape>
757	<Appearance>
758	<Material USE='EhimeMaruWhite'/>
759	</Appearance>
760	<Box size='2 1 2'/>
761	</Shape>
762	</Transform>
763	<Transform DEF='Cylinder1' rotation='0 0 1 -1.570796' translation='-6.5 4.3 3'>
764	<Shape>
765	<Appearance>
766	<Material USE='EhimeMaruWhite'/>
767	</Appearance>
768	<!-- Cylinder TopsideCylinder is a DEF node that has 1 USE node: USE_1 --> <Cylinder DEF='TopsideCylinder' height='4.3' radius='.3'/>
769	</Shape>
770	</Transform>
771	<Transform DEF='Cylinder2' rotation='0 0 1 -1.570796' translation='-12 4.3 -3'>
772	<Shape>
773	<Appearance>
774	<Material USE='EhimeMaruWhite'/>
775	</Appearance>
776	<Cylinder USE='TopsideCylinder'/>
777	</Shape>
778	</Transform>
779	<Transform DEF='FwdBox1' translation='9 1.3 -0.9'>
780	<Shape>
781	<Appearance>
782	<Material diffuseColor='.5 .4 .4'/>
783	<ImageTexture USE='EhimeMaruDeckSkin'/>
784	</Appearance>
785	<Box size='2 1 2'/>
786	</Shape>
787	</Transform>
788	<Transform DEF='FwdCylinder1' translation='15 2 -1'>
789	<Shape>
790	<Appearance>
791	<Material diffuseColor='.4 .4 .4'/>
792	</Appearance>
793	<Cylinder height='.7' radius='.3'/>
794	</Shape>
795	</Transform>
796	<Transform DEF='FwdCylinder2' translation='15 2 1'>
797	<Shape>
798	<Appearance>
799	<Material diffuseColor='.4 .4 .4'/>
800	</Appearance>
801	<Cylinder height='.7' radius='.3'/>
802	</Shape>
803	</Transform>
804	<Transform DEF='FwdCylinder3' scale='1.2 1.2 1.2' translation='17.5 2 0'>
805	<Shape>
806	<Appearance>
807	<Material diffuseColor='.4 .4 .4'/>
808	</Appearance>
809	<Cylinder height='.7' radius='.3'/>
810	</Shape>
811	</Transform>
812	</Transform>
813	<Transform DEF='RudderAssembly' translation='-17 -2 0'>
814	<Transform DEF='HorizontalRudderSupport' translation='2.8 -0.9 0'>
815	<Shape>
816	<Box size='6 .02 .4'/>
817	<Appearance>
818	<Material USE='HullRed'/>
819	</Appearance>
820	</Shape>
821	</Transform>
822	<Transform DEF='VerticalRudderSupport' translation='0 0.6 0'>
823	<Shape>
824	<Cylinder height='3' radius='.04' top='false'/>
825	<Appearance>
826	<Material USE='HullRed'/>
827	</Appearance>
828	</Shape>
829	</Transform>
830	<Transform DEF='Rudder' translation='0 0.2 0'>
831	<Shape>
832	<Box size='1.5 2 .04'/>
833	<Appearance>
834	<Material USE='HullRed'/>
835	</Appearance>
836	</Shape>
837	</Transform>
838	</Transform>
839	<!-- ROUTE information for PropAssembly node: [from PropRotationInterpolator.value_changed to set_rotation ] --> <Transform DEF='PropAssembly' center='-15 -2 0'>
840	<Transform DEF='Propeller' rotation='0 1 0 -3.142' scale='.8 .8 .8' translation='-15.3 -2 0'>
841	<Transform>
842	<!-- Shape blade is a DEF node that has 3 USE nodes: USE_1, USE_2, USE_3 --> <Shape DEF='blade'>
843	<Extrusion creaseAngle='.785' crossSection='0 -.25 -.2 0 -.2 .25 0 .25 0 -.25' orientation='0 1 0 0 0 1 0 .1 0 1 0 .2 0 1 0 .3 0 1 0 .4 0 1 0 .5 0 1 0 .6 0 1 0 .7 0 1 0 .8 0 1 0 .9' scale='0.1 0.6 0.1 0.6 0.1 0.6 0.1 0.6 0.1 0.6 0.1 0.6 0.1 0.6 0.1 0.6 0.1 0.6 0.1 0.6' spine='0 0 0 0 .1 0 0 .2 0 0 .3 0 0 .4 0 0 .5 0 0 .6 0 0 .7 0 0 .8 0 0 .9 0'/>
844	<!-- Appearance screw_color is a DEF node that has 1 USE node: USE_1 --> <Appearance DEF='screw_color'>
845	<Material ambientIntensity='.3' diffuseColor='.1 .1 .1' emissiveColor='.1 .1 .1' shininess='.5' specularColor='.1 .1 .1'/>
846	<ImageTexture url=' "screw_texture.jpg " "https://www.web3d.org/x3d/content/examples/Savage/ShipsCivilian/Trawlers/screw_texture.jpg " '/>
847	</Appearance>
848	</Shape>
849	</Transform>
850	<Transform rotation='1 0 0 1.5707'>
851	<Shape USE='blade'/>
852	</Transform>
853	<Transform rotation='1 0 0 3.14159'>
854	<Shape USE='blade'/>
855	</Transform>
856	<Transform rotation='1 0 0 4.7124'>
857	<Shape USE='blade'/>
858	</Transform>
859	<Transform DEF='endcap' rotation='0 0 1 -1.571' scale='.5 .3 .5' translation='0.2 0 0'>
860	<Shape>
861	<Cone bottomRadius='.26' height='1.3'/>
862	<Appearance USE='screw_color'/>
863	</Shape>
864	</Transform>
865	</Transform>
866	<Transform DEF='DriveShaft' rotation='0 0 1 -1.571' translation='-13.85 -2 0'>
867	<Shape>
868	<Cylinder bottom='false' height='3' radius='.07' top='false'/>
869	<Appearance>
870	<Material USE='HullRed'/>
871	</Appearance>
872	</Shape>
873	</Transform>
874	</Transform>
875	<!-- ROUTE information for PropTimerSource node: [from fraction_changed to PropRotationInterpolator.set_fraction ] --> <TimeSensor DEF='PropTimerSource' cycleInterval='5' loop='true'/>
876	<!-- ROUTE information for PropRotationInterpolator node: [from PropTimerSource.fraction_changed to set_fraction ] [from value_changed to PropAssembly.set_rotation ] --> <OrientationInterpolator DEF='PropRotationInterpolator' key='0 0.25 0.5 0.75 1' keyValue='1 0 0 0 1 0 0 1.570796 1 0 0 3.14159 1 0 0 4.7124 1 0 0 6.283185'/>
877	<Transform DEF='BowThrusters'>
878	<Transform DEF='StbdThruster' rotation='0 1 0 0.4' translation='14 -0.95 2.53'>
879	<Transform rotation='1 0 0 0.1'>
880	<Transform rotation='1 0 0 1.570796'>
881	<Shape>
882	<Appearance>
883	<Material ambientIntensity='.3' diffuseColor='.1 .1 .1' emissiveColor='.1 .1 .1' shininess='.5' specularColor='.1 .1 .1'/>
884	</Appearance>
885	<Cylinder height='.05' radius='.4'/>
886	</Shape>
887	</Transform>
888	<Transform scale='.26 .26 .26' translation='0 0 0.07'>
889	<!-- LOD BowThrusterImage is a DEF node that has 1 USE node: USE_1 --> <LOD DEF='BowThrusterImage' range='400'>
890	<Inline url=' "../../../Vrml2Sourcebook/Chapter18-TextureMapping/Figure18.27RotatingFanAnimatedTextureTransform.x3d" "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Chapter18-TextureMapping/Figure18.27RotatingFanAnimatedTextureTransform.x3d" "../../../Vrml2Sourcebook/Chapter18-TextureMapping/Figure18.27RotatingFanAnimatedTextureTransform.wrl" "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Chapter18-TextureMapping/Figure18.27RotatingFanAnimatedTextureTransform.wrl" '/>
891	<WorldInfo info='"null node"'/>
892	</LOD>
893	</Transform>
894	</Transform>
895	</Transform>
896	<Transform DEF='PortThruster' rotation='0 1 0 -0.4' translation='14 -0.95 -2.53'>
897	<Transform rotation='1 0 0 -0.1'>
898	<Transform rotation='1 0 0 1.570796'>
899	<Shape>
900	<Appearance>
901	<Material ambientIntensity='.3' diffuseColor='.1 .1 .1' emissiveColor='.1 .1 .1' shininess='.5' specularColor='.1 .1 .1'/>
902	</Appearance>
903	<Cylinder height='.05' radius='.4'/>
904	</Shape>
905	</Transform>
906	<Transform rotation='0 1 0 -3.14159' scale='.26 .26 .26' translation='0 0 -0.07'>
907	<LOD USE='BowThrusterImage'/>
908	</Transform>
909	</Transform>
910	</Transform>
911	</Transform>
912	<Transform DEF='ShipName' translation='15 2 0'>
913	<Transform DEF='PortShipName' rotation='0 1 0 0.4' translation='-0.6 -0.8 3'>
914	<!-- Shape ShipNameText is a DEF node that has 2 USE nodes: USE_1, USE_2 --> <Shape DEF='ShipNameText'>
915	<Text string='"-- EHIME MARU --"'>
916	<FontStyle justify='"BEGIN" "MIDDLE"' size='0.5' style='BOLD'/>
917	</Text>
918	<Appearance>
919	<Material diffuseColor='.1 .1 .4'/>
920	</Appearance>
921	</Shape>
922	</Transform>
923	<Transform DEF='StbdShipName' rotation='0 1 0 -3.54159' translation='0.8 -0.8 -2.5'>
924	<Shape USE='ShipNameText'/>
925	</Transform>
926	<Transform DEF='AftShipName' rotation='0 1 0 -1.570796' translation='-35.8 0.7 -1.8'>
927	<Shape USE='ShipNameText'/>
928	</Transform>
929	</Transform>
930	</Transform>
931	</Transform>
932	</Transform>
933	</Transform>
934	</Transform>
935	</Transform>
936	< ROUTE fromNode='TopRadarTImeSource' fromField='fraction_changed' toNode='TopRadarInterpolator' toField='set_fraction'/>
937	< ROUTE fromNode='TopRadarInterpolator' fromField='value_changed' toNode='RadarAntennaTop' toField='set_rotation'/>
938	< ROUTE fromNode='LowerRadarTimeSource' fromField='fraction_changed' toNode='LowerRadarInterpolator' toField='set_fraction'/>
939	< ROUTE fromNode='LowerRadarInterpolator' fromField='value_changed' toNode='RadarAntennaLower' toField='set_rotation'/>
940	< ROUTE fromNode='PropTimerSource' fromField='fraction_changed' toNode='PropRotationInterpolator' toField='set_fraction'/>
941	< ROUTE fromNode='PropRotationInterpolator' fromField='value_changed' toNode='PropAssembly' toField='set_rotation'/>
942	</Scene>
943	</X3D>

<!--

Event Graph ROUTE Table shows event connections.

-->
<!--

-->

X3D Tooltips element index: Appearance, Background, Box, Cone, Coordinate, Cylinder, Extrusion, FontStyle, head, ImageTexture, IndexedFaceSet, IndexedLineSet, Inline, LOD, Material, meta, NavigationInfo, OrientationInterpolator, ROUTE, Scene, Shape, Sphere, Text, TimeSensor, Transform, Viewpoint, WorldInfo, X3D, plus documentation for accessType definitions, type definitions, XML data types, and field types

Event Graph ROUTE Table entries with 6 ROUTE connections total, showing X3D event-model relationships for this scene.

Each row shows an event cascade that may occur during a single timestamp interval between frame renderings, as part of the X3D execution model.

LowerRadarTimeSource
TimeSensor
fraction_changed
SFFloat

→
ROUTE
event to
(1)

LowerRadarInterpolator
OrientationInterpolator
set_fraction
SFFloat

then

LowerRadarInterpolator
OrientationInterpolator
value_changed
SFRotation

→
ROUTE
event to
(2)

RadarAntennaLower
Transform
set_rotation
SFRotation

PropTimerSource
TimeSensor
fraction_changed
SFFloat

→
ROUTE
event to
(1)

PropRotationInterpolator
OrientationInterpolator
set_fraction
SFFloat

then

PropRotationInterpolator
OrientationInterpolator
value_changed
SFRotation

→
ROUTE
event to
(2)

PropAssembly
Transform
set_rotation
SFRotation

TopRadarTImeSource
TimeSensor
fraction_changed
SFFloat

→
ROUTE
event to
(1)

TopRadarInterpolator
OrientationInterpolator
set_fraction
SFFloat

then

TopRadarInterpolator
OrientationInterpolator
value_changed
SFRotation

→
ROUTE
event to
(2)

RadarAntennaTop
Transform
set_rotation
SFRotation

Additional guidance on X3D animation can be found in the 10-Step Animation Design Process and Event Tracing hint sheets. Have fun with X3D! 😀

-->
