X3D Model Documentation: CommandingOfficerStateroom.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
  3  <X3D profile='Immersive' version='3.0'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'>
  4       <head>
  5            <meta name='title' content=' CommandingOfficerStateroom.x3d '/>
  6            <meta name='creator' content='Georgios Stavritis'/>
  7            <meta name='description' content='An extruded room for CO room, part of S-Type Frigate in Hellenic Navy.'/>
  8            <meta name='created' content='28 February 2001'/>
  9            <meta name='modified' content='20 October 2019'/>
 10            <meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/Savage/ShipsMilitary/FrigateGreece/CommandingOfficerStateroom.x3d '/>
 11            <meta name='generator' content='X3D-Edit 3.2, https://www.web3d.org/x3d/tools/X3D-Edit'/>
 12            <meta name='license' content='../../license.html'/>
 13       </head>
<!--
<!-- to top DEF node index: Index for Viewpoint node: Viewpoint_1
-->
 14       <Scene>
 15            <WorldInfo title='CommandingOfficerStateroom.x3d'/>
 16            <Transform>

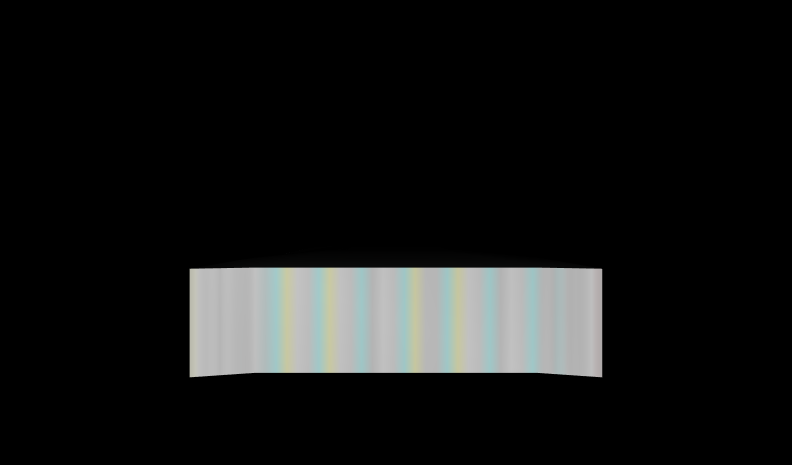

 17                 <Viewpoint description='From the CO room' position='0 4 35'/>
 18            </Transform>
 19            <Shape>
 20                 <Appearance>
 21                      <Material/>
 22                      <ImageTexture   url=' "faioLight.gif " "https://www.web3d.org/x3d/content/examples/Savage/ShipsMilitary/FrigateGreece/faioLight.gif " '/>
 23                 </Appearance>
 24                 <Extrusion convex='false' creaseAngle='0.785' crossSection='5.5 0 5.5 15 5.7 16 5.7 19.5 4.0 19 -4.0 19 -5.7 19.5 -5.7 16 -5.0 15 -5.5 0 5.5 0' scale='1 1 1 1 0.9 0.9 0.5 0.5' solid='false' spine='0 0 0 0 3 0 0 3.1 0 0 3.2 0'/>
 25            </Shape>
 26       </Scene>
 27  </X3D>
<!--
