<?xml version="1.0" encoding="UTF-8"?>
|
| 2 |
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.2//EN" "https://www.web3d.org/specifications/x3d-3.2.dtd">
|
| 3 | <X3D profile='Immersive' version='3.2' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.2.xsd'> |
| 4 | <head> |
| 5 | <meta name='title' content=' TightDoorMainDeckPort.x3d '/> |
| 6 | <meta name='description' content='Brazilian Naval Academy Training Ship'/> |
| 7 | <meta name='creator' content='Claudio Coreixas'/> |
| 8 | <meta name='created' content='20 October 2009'/> |
| 9 | <meta name='modified' content='20 October 2019'/> |
| 10 | <meta name='reference' content='http://www.en.mar.mil.br'/> |
| 11 | <meta name='subject' content='ships parts'/> |
| 12 | <meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/Savage/ShipsMilitary/PatrolCraftNavalAcademyBrazil/TightDoorMainDeckPort.x3d '/> |
| 13 | <meta name='generator' content='X3D-Edit, https://www.web3d.org/x3d/tools/X3D-Edit'/> |
| 14 | <meta name='license' content='../../license.html'/> |
| 15 | </head> |
DEF nodes index:
dog,
dogSensor,
dogSensor2,
dogTimer,
openDog,
openDogSpin,
openDogSpin2,
openDoor,
openDoorTransform,
pipeIFS,
spinTimer,
TightDoor
| 16 | <Scene> |
| 17 | <WorldInfo title='TightDoorMainDeckPort.x3d'/> |

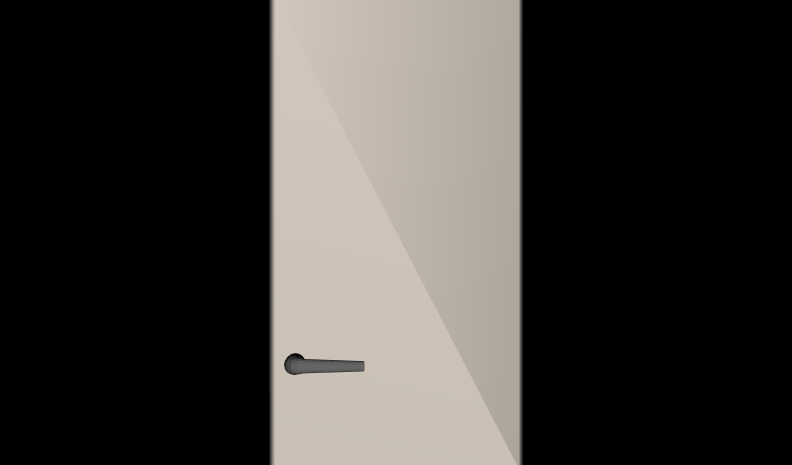

| 18 | <Viewpoint description='Door' fieldOfView='0.45' orientation='1 0 0 0' position='0 0 1'/> |
| 19 |
<!-- ROUTE information for spinTimer node:
[from dogSensor.touchTime to startTime
]
[from dogSensor2.touchTime to startTime
]
[from fraction_changed to openDoor.set_fraction
]
-->
<TimeSensor DEF='spinTimer' cycleInterval='3'/> |
| 20 |
<!-- ROUTE information for openDoor node:
[from spinTimer.fraction_changed to set_fraction
]
[from value_changed to openDoorTransform.rotation
]
-->
<OrientationInterpolator DEF='openDoor' key='0 0.25 0.5 0.75 1' keyValue='0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 -1.57 0 1 0 -2.8'/> |
| 21 | < ROUTE fromNode='spinTimer' fromField='fraction_changed' toNode='openDoor' toField='set_fraction'/> |
| 22 |
<!-- ROUTE information for dogTimer node:
[from dogSensor.touchTime to startTime
]
[from dogSensor2.touchTime to startTime
]
[from fraction_changed to openDog.set_fraction
]
-->
<TimeSensor DEF='dogTimer'/> |
| 23 |
<!-- ROUTE information for openDog node:
[from dogTimer.fraction_changed to set_fraction
]
[from value_changed to openDogSpin.rotation
]
[from value_changed to openDogSpin2.rotation
]
-->
<OrientationInterpolator DEF='openDog' key='0 1' keyValue='0 0 1 0 0 0 1 -1.3'/> |
| 24 | < ROUTE fromNode='dogTimer' fromField='fraction_changed' toNode='openDog' toField='set_fraction'/> |
| 25 |
<!-- ROUTE information for openDoorTransform node:
[from openDoor.value_changed to rotation
]
-->
<Transform DEF='openDoorTransform' center='0.13 0.01 0'> |
| 26 | < ROUTE fromNode='openDoor' fromField='value_changed' toNode='openDoorTransform' toField='rotation'/> |
| 27 |
<!-- ROUTE information for openDogSpin node:
[from openDog.value_changed to rotation
]
-->
<Transform DEF='openDogSpin' center='-0.1 0.13 -0.005'> |
| 28 | < ROUTE fromNode='openDog' fromField='value_changed' toNode='openDogSpin' toField='rotation'/> |
| 29 | <Transform translation='-0.1 0.13 -0.005'> |
| 30 | <Transform rotation='0 0 1 3.14'> |
| 31 | |
| 32 | <Appearance> |
| 33 | <Material diffuseColor='0.4 0.4 0.4'/> |
| 34 | </Appearance> |
| 35 | <Extrusion ccw='false' convex='false' crossSection='0.01 0 0.0092 0.0038 0.0071 0.0071 0.0038 0.0092 0 0.01 -0.0038 0.0092 -0.0071 0.0071 -0.0092 0.0038 -0.01 0 -0.0092 -0.0038 -0.0071 -0.0071 -0.0038 -0.0092 0 -0.01 0.0038 -0.0092 0.0071 -0.0071 0.0092 -0.0039 0.01 0' scale='0.3 0.5 0.4 0.7 0.55 0.8 0.7 0.85 0.85 0.95 1 1 1 1 0.85 0.95 0.7 0.85 0.55 0.8 0.4 0.7 0.3 0.5' solid='false' spine='-0.069 0 0.017 -0.01 0 0.017 -0.0062 0 0.0162 -0.0029 0 0.0141 -0.0008 0 0.0109 0 0 0.007 0 0 -0.007 -0.0008 0 -0.0108 -0.0029 0 -0.0141 -0.0062 0 -0.0162 -0.01 0 -0.017 -0.069 0 -0.017'/> |
| 36 | </Shape> |
| 37 | </Transform> |
| 38 |
<!-- ROUTE information for dogSensor node:
[from touchTime to spinTimer.startTime
]
[from touchTime to dogTimer.startTime
]
-->
<TouchSensor DEF='dogSensor' description='Touch to Open Hatch'/> |
| 39 | < ROUTE fromNode='dogSensor' fromField='touchTime' toNode='spinTimer' toField='startTime'/> |
| 40 | < ROUTE fromNode='dogSensor' fromField='touchTime' toNode='dogTimer' toField='startTime'/> |
| 41 | </Transform> |
| 42 | </Transform> |
| 43 |
<!-- ROUTE information for openDogSpin2 node:
[from openDog.value_changed to rotation
]
-->
<Transform DEF='openDogSpin2' center='-0.1 -0.13 -0.005'> |
| 44 | < ROUTE fromNode='openDog' fromField='value_changed' toNode='openDogSpin2' toField='rotation'/> |
| 45 | <Transform translation='-0.1 -0.13 -0.005'> |
| 46 | <Transform rotation='0 0 1 3.14'> |
| 47 | <Shape USE='dog'/> |
| 48 | </Transform> |
| 49 |
<!-- ROUTE information for dogSensor2 node:
[from touchTime to spinTimer.startTime
]
[from touchTime to dogTimer.startTime
]
-->
<TouchSensor DEF='dogSensor2' description='Touch to Open Hatch'/> |
| 50 | < ROUTE fromNode='dogSensor2' fromField='touchTime' toNode='spinTimer' toField='startTime'/> |
| 51 | < ROUTE fromNode='dogSensor2' fromField='touchTime' toNode='dogTimer' toField='startTime'/> |
| 52 | </Transform> |
| 53 | </Transform> |
| 54 | <Transform rotation='0 1 0 3.14'> |
| 55 | <Transform rotation='1 0 0 1.57'> |
| 56 | <Shape DEF='TightDoor'> |
| 57 | <Appearance> |
| 58 | <Material diffuseColor='0.82 0.78 0.74'/> |
| 59 | </Appearance> |
| 60 | <IndexedFaceSet DEF='pipeIFS' convex='false' creaseAngle='1.5' solid='false' coordIndex='1 2 22 21 -1 2 3 23 22 -1 3 4 24 23 -1 4 5 25 24 -1 5 6 26 25 -1 6 7 27 26 -1 7 8 28 27 -1 8 9 29 28 -1 9 10 30 29 -1 10 11 31 30 -1 11 12 32 31 -1 12 13 33 32 -1 13 14 34 33 -1 14 15 35 34 -1 15 16 36 35 -1 16 17 37 36 -1 17 18 38 37 -1 18 19 39 38 -1 19 20 40 39 -1 20 1 21 40 -1 21 22 42 41 -1 22 23 43 42 -1 23 24 44 43 -1 24 25 45 44 -1 25 26 46 45 -1 26 27 47 46 -1 27 28 48 47 -1 28 29 49 48 -1 29 30 50 49 -1 30 31 51 50 -1 31 32 52 51 -1 32 33 53 52 -1 33 34 54 53 -1 34 35 55 54 -1 35 36 56 55 -1 36 37 57 56 -1 37 38 58 57 -1 38 39 59 58 -1 39 40 60 59 -1 40 21 41 60 -1 41 42 62 61 -1 42 43 63 62 -1 43 44 64 63 -1 44 45 65 64 -1 45 46 66 65 -1 46 47 67 66 -1 47 48 68 67 -1 48 49 69 68 -1 49 50 70 69 -1 50 51 71 70 -1 51 52 72 71 -1 52 53 73 72 -1 53 54 74 73 -1 54 55 75 74 -1 55 56 76 75 -1 56 57 77 76 -1 57 58 78 77 -1 58 59 79 78 -1 59 60 80 79 -1 60 41 61 80 -1 61 62 81 -1 62 63 81 -1 63 64 81 -1 64 65 81 -1 65 66 82 81 -1 66 67 82 -1 67 68 82 -1 68 69 82 -1 69 70 82 -1 70 71 83 82 -1 71 72 83 -1 72 73 83 -1 73 74 83 -1 74 75 83 -1 75 76 84 83 -1 76 77 84 -1 77 78 84 -1 78 79 84 -1 79 80 84 -1 80 61 81 84 -1 81 82 83 84 -1'> |
| 61 | <Coordinate point='0.0000 0.0000 0.0000 0.1250 0.0000 0.2325 0.1246 0.0000 0.2344 0.1235 0.0000 0.2360 0.1219 0.0000 0.2371 0.1200 0.0000 0.2375 -0.1200 0.0000 0.2375 -0.1219 0.0000 0.2371 -0.1235 0.0000 0.2360 -0.1246 0.0000 0.2344 -0.1250 0.0000 0.2325 -0.1250 0.0000 -0.2325 -0.1246 0.0000 -0.2344 -0.1235 0.0000 -0.2360 -0.1219 0.0000 -0.2371 -0.1200 0.0000 -0.2375 0.1200 0.0000 -0.2375 0.1219 0.0000 -0.2371 0.1235 0.0000 -0.2360 0.1246 0.0000 -0.2344 0.1250 0.0000 -0.2325 0.1246 0.0038 0.2325 0.1243 0.0038 0.2343 0.1233 0.0038 0.2358 0.1218 0.0038 0.2368 0.1200 0.0038 0.2371 -0.1200 0.0038 0.2371 -0.1218 0.0038 0.2368 -0.1233 0.0038 0.2358 -0.1243 0.0038 0.2343 -0.1246 0.0038 0.2325 -0.1246 0.0038 -0.2325 -0.1243 0.0038 -0.2343 -0.1233 0.0038 -0.2358 -0.1218 0.0038 -0.2368 -0.1200 0.0038 -0.2371 0.1200 0.0038 -0.2371 0.1218 0.0038 -0.2368 0.1233 0.0038 -0.2358 0.1243 0.0038 -0.2343 0.1246 0.0038 -0.2325 0.1235 0.0071 0.2325 0.1233 0.0071 0.2339 0.1225 0.0071 0.2350 0.1214 0.0071 0.2358 0.1200 0.0071 0.2360 -0.1200 0.0071 0.2360 -0.1214 0.0071 0.2358 -0.1225 0.0071 0.2350 -0.1233 0.0071 0.2339 -0.1235 0.0071 0.2325 -0.1235 0.0071 -0.2325 -0.1233 0.0071 -0.2338 -0.1225 0.0071 -0.2350 -0.1214 0.0071 -0.2358 -0.1200 0.0071 -0.2360 0.1200 0.0071 -0.2360 0.1213 0.0071 -0.2358 0.1225 0.0071 -0.2350 0.1233 0.0071 -0.2339 0.1235 0.0071 -0.2325 0.1219 0.0092 0.2325 0.1218 0.0092 0.2332 0.1214 0.0092 0.2339 0.1207 0.0092 0.2343 0.1200 0.0092 0.2344 -0.1200 0.0092 0.2344 -0.1207 0.0092 0.2343 -0.1214 0.0092 0.2339 -0.1218 0.0092 0.2332 -0.1219 0.0092 0.2325 -0.1219 0.0092 -0.2325 -0.1218 0.0092 -0.2332 -0.1214 0.0092 -0.2339 -0.1207 0.0092 -0.2343 -0.1200 0.0092 -0.2344 0.1200 0.0092 -0.2344 0.1207 0.0092 -0.2343 0.1214 0.0092 -0.2339 0.1218 0.0092 -0.2332 0.1219 0.0092 -0.2325 0.1200 0.0100 0.2325 -0.1200 0.0100 0.2325 0.1200 0.0100 -0.2325 0.1200 0.0100 -0.2325'/> |
| 62 | </IndexedFaceSet> |
| 63 | </Shape> |
| 64 | </Transform> |
| 65 | </Transform> |
| 66 | </Transform> |
| 67 | </Scene> |
| 68 | </X3D> |
DEF nodes index:
dog,
dogSensor,
dogSensor2,
dogTimer,
openDog,
openDogSpin,
openDogSpin2,
openDoor,
openDoorTransform,
pipeIFS,
spinTimer,
TightDoor
Event Graph ROUTE Table entries with 9 ROUTE connections total, showing X3D event-model relationships for this scene.
Each row shows an event cascade that may occur during a single timestamp interval between frame renderings, as part of the X3D execution model.
|
dogSensor
TouchSensor touchTime SFTime |
spinTimer
TimeSensor startTime SFTime |
then
|
spinTimer
TimeSensor fraction_changed SFFloat |
openDoor
OrientationInterpolator set_fraction SFFloat |
then
|
openDoor
OrientationInterpolator value_changed SFRotation |
openDoorTransform
Transform rotation SFRotation |
|||
|
dogSensor
TouchSensor touchTime SFTime |
dogTimer
TimeSensor startTime SFTime |
then
|
dogTimer
TimeSensor fraction_changed SFFloat |
openDog
OrientationInterpolator set_fraction SFFloat |
then
|
openDog
OrientationInterpolator value_changed SFRotation |
openDogSpin
Transform rotation SFRotation |
|||
|
then
|
openDog
OrientationInterpolator value_changed SFRotation |
openDogSpin2
Transform rotation SFRotation |
||||||||
|
dogSensor2
TouchSensor touchTime SFTime |
spinTimer
TimeSensor startTime SFTime |
then
|
spinTimer
TimeSensor fraction_changed SFFloat |
openDoor
OrientationInterpolator set_fraction SFFloat |
then
|
openDoor
OrientationInterpolator value_changed SFRotation |
openDoorTransform
Transform rotation SFRotation |
|||
|
dogSensor2
TouchSensor touchTime SFTime |
dogTimer
TimeSensor startTime SFTime |
then
|
dogTimer
TimeSensor fraction_changed SFFloat |
openDog
OrientationInterpolator set_fraction SFFloat |
then
|
openDog
OrientationInterpolator value_changed SFRotation |
openDogSpin
Transform rotation SFRotation |
|||
|
then
|
openDog
OrientationInterpolator value_changed SFRotation |
openDogSpin2
Transform rotation SFRotation |
||||||||
<!--
