| 1 |
<?xml version="1.0" encoding="UTF-8"?>
|
| 2 |
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
|
| 3 | <X3D profile='Immersive' version='3.0' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'> |
| 4 | <head> |
| 5 | <meta name='title' content=' SingleTypeConversionExample.x3d '/> |
| 6 | <meta name='description' content='Converts from a single typed value to various other types of values.'/> |
| 7 | <meta name='creator' content='Don Brutzman, Mike Hunsberger, Jane Wu'/> |
| 8 | <meta name='created' content='8 June 2003'/> |
| 9 | <meta name='modified' content='28 November 2019'/> |
| 10 | <meta name='subject' content='type conversion'/> |
| 11 |

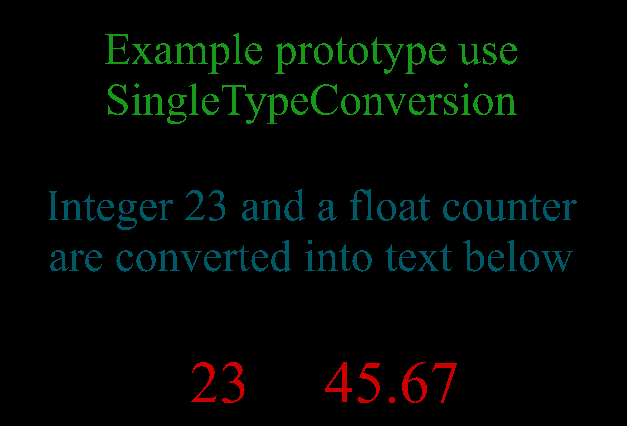

<meta name='Image' content='SingleTypeConversionExampleDisplayBegin.png' />
|
| 12 |

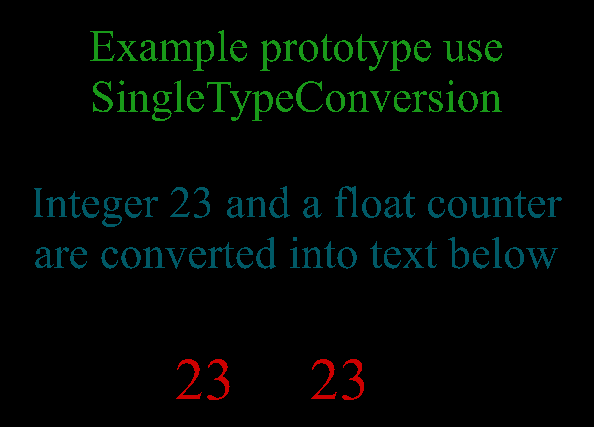

<meta name='Image' content='SingleTypeConversionExampleDisplayEnd.png' />
|
| 13 | <meta name='reference' content=' http://www.cs.brown.edu/~gss/VRML98/paper.rev.html '/> |
| 14 | <meta name='reference' content='http://www.cs.brown.edu/~gss/vrml/hprotos.wrl'/> |
| 15 | <meta name='reference' content='http://www.cs.brown.edu/~gss/vrml/hotpot.zip'/> |
| 16 | <meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/Savage/Tools/Authoring/SingleTypeConversionExample.x3d '/> |
| 17 | <meta name='generator' content='X3D-Edit 3.2, https://www.web3d.org/x3d/tools/X3D-Edit'/> |
| 18 | <meta name='license' content='../../license.html'/> |
| 19 | </head> |
DEF nodes index:
BEGIN_MIDDLE,
ClockTrigger,
ConvertTimeToBoolean,
FloatClock,
FloatConverter,
FloatCounter,
FloatText,
IntegerConverter,
IntegerText,
MIDDLE_MIDDLE,
TriggerNode
| 20 | <Scene> |
| 21 | <WorldInfo title='SingleTypeConversionExample.x3d'/> |
| 22 | <ExternProtoDeclare name='SingleTypeConversion' appinfo='SingleTypeConversion converts from a single typed value to various other types of values' url=' "SingleTypeConversionPrototype.x3d#SingleTypeConversion" "../../../Savage/Tools/Authoring/SingleTypeConversionPrototype.x3d#SingleTypeConversion" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Authoring/SingleTypeConversionPrototype.x3d#SingleTypeConversion" "SingleTypeConversionPrototype.wrl#SingleTypeConversion" "../../../Savage/Tools/Authoring/SingleTypeConversionPrototype.wrl#SingleTypeConversion" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Authoring/SingleTypeConversionPrototype.wrl#SingleTypeConversion" '> |
| 23 |
<field name='decimalPlaces' type='SFInt32' accessType='initializeOnly'
appinfo='decimalPlaces is the number of significant digits after the decimal point, use -1 to indicate no round off'/> |
| 24 | <field name='setDecimalPlaces' type='SFInt32' accessType='inputOnly'/> |
| 25 | <field name='BooleanValue' type='SFBool' accessType='inputOnly'/> |
| 26 | <field name='FloatValue' type='SFFloat' accessType='inputOnly'/> |
| 27 | <field name='IntegerValue' type='SFInt32' accessType='inputOnly'/> |
| 28 | <field name='TimeValue' type='SFTime' accessType='inputOnly'/> |
| 29 | <field name='BooleanResult' type='SFBool' accessType='outputOnly'/> |
| 30 | <field name='FloatResult' type='SFFloat' accessType='outputOnly'/> |
| 31 | <field name='IntegerResult' type='SFInt32' accessType='outputOnly'/> |
| 32 | <field name='TimeResult' type='SFTime' accessType='outputOnly'/> |
| 33 | <field name='StringResult' type='SFString' accessType='outputOnly'/> |
| 34 | <field name='StringsResult' type='MFString' accessType='outputOnly'/> |
| 35 | </ExternProtoDeclare> |
| 36 | <!-- ==================== --> |
| 37 | <Group> |
| 38 | <Transform translation='0 2 0'> |
| 39 | <Shape> |
| 40 | <Appearance> |
| 41 | <Material diffuseColor='0.1 0.6 0.1'/> |
| 42 | </Appearance> |
| 43 | <Text string='"Example prototype use" "SingleTypeConversion"'> |
| 44 |
<!-- FontStyle
MIDDLE_MIDDLE is a DEF node that has 1 USE node: USE_1 --> <FontStyle DEF='MIDDLE_MIDDLE' justify='"MIDDLE" "MIDDLE"' size='0.75'/> |
| 45 | </Text> |
| 46 | </Shape> |
| 47 | </Transform> |
| 48 | <Transform translation='0 -0.25 0'> |
| 49 | <Shape> |
| 50 | <Appearance> |
| 51 | <Material diffuseColor='0 0.35 0.4'/> |
| 52 | </Appearance> |
| 53 | <Text string='"Integer 23 and a float counter" "are converted into text below"'> |
| 54 | <FontStyle USE='MIDDLE_MIDDLE'/> |
| 55 | </Text> |
| 56 | </Shape> |
| 57 | </Transform> |
| 58 |
<!-- ROUTE information for ClockTrigger node:
[from cycleTime to ConvertTimeToBoolean.set_triggerTime
]
-->
<TimeSensor DEF='ClockTrigger' cycleInterval='0.5' loop='true'/> |
| 59 |
<!-- ROUTE information for ConvertTimeToBoolean node:
[from ClockTrigger.cycleTime to set_triggerTime
]
[from triggerTrue to TriggerNode.set_boolean
]
-->
<BooleanTrigger DEF='ConvertTimeToBoolean'/> |
| 60 |
<!-- ROUTE information for TriggerNode node:
[from ConvertTimeToBoolean.triggerTrue to set_boolean
]
[from triggerValue to IntegerConverter.IntegerValue
]
-->
<IntegerTrigger DEF='TriggerNode' integerKey='23'/> |
| 61 |
<!-- ROUTE information for IntegerConverter node:
[from TriggerNode.triggerValue to IntegerValue
]
[from StringsResult to IntegerText.set_string
]
-->
<ProtoInstance name='SingleTypeConversion' DEF='IntegerConverter'/> |
| 62 | < ROUTE fromNode='ClockTrigger' fromField='cycleTime' toNode='ConvertTimeToBoolean' toField='set_triggerTime'/> |
| 63 | < ROUTE fromNode='ConvertTimeToBoolean' fromField='triggerTrue' toNode='TriggerNode' toField='set_boolean'/> |
| 64 | < ROUTE fromNode='TriggerNode' fromField='triggerValue' toNode='IntegerConverter' toField='IntegerValue'/> |
| 65 | <Transform translation='-1.8 -2.5 0'> |
| 66 | <Shape> |
| 67 | <Appearance> |
| 68 | <Material diffuseColor='0.8 0 0'/> |
| 69 | </Appearance> |
| 70 |
<!-- ROUTE information for IntegerText node:
[from IntegerConverter.StringsResult to set_string
]
-->
<Text DEF='IntegerText' string='"__"'> |
| 71 |
<!-- FontStyle
BEGIN_MIDDLE is a DEF node that has 1 USE node: USE_1 --> <FontStyle DEF='BEGIN_MIDDLE' justify='"BEGIN" "MIDDLE"'/> |
| 72 | </Text> |
| 73 | </Shape> |
| 74 | < ROUTE fromNode='IntegerConverter' fromField='StringsResult' toNode='IntegerText' toField='set_string'/> |
| 75 | </Transform> |
| 76 | <Transform translation='0.2 -2.5 0'> |
| 77 | <Shape> |
| 78 | <Appearance> |
| 79 | <Material diffuseColor='0.8 0 0'/> |
| 80 | </Appearance> |
| 81 |
<!-- ROUTE information for FloatText node:
[from FloatConverter.StringsResult to set_string
]
-->
<Text DEF='FloatText' string='"_._"'> |
| 82 | <FontStyle USE='BEGIN_MIDDLE'/> |
| 83 | </Text> |
| 84 | </Shape> |
| 85 |
<!-- ROUTE information for FloatClock node:
[from fraction_changed to FloatCounter.set_fraction
]
-->
<TimeSensor DEF='FloatClock' cycleInterval='5' loop='true'/> |
| 86 |
<!-- ROUTE information for FloatCounter node:
[from FloatClock.fraction_changed to set_fraction
]
[from value_changed to FloatConverter.FloatValue
]
-->
<ScalarInterpolator DEF='FloatCounter' key='0 0.2 0.4 1' keyValue='23.000 23.000 45.67 45.67'/> |
| 87 |
<!-- ROUTE information for FloatConverter node:
[from FloatCounter.value_changed to FloatValue
]
[from StringsResult to FloatText.set_string
]
-->
<ProtoInstance name='SingleTypeConversion' DEF='FloatConverter'> |
| 88 | <fieldValue name='decimalPlaces' value='2'/> |
| 89 | </ProtoInstance> |
| 90 | < ROUTE fromNode='FloatClock' fromField='fraction_changed' toNode='FloatCounter' toField='set_fraction'/> |
| 91 | < ROUTE fromNode='FloatCounter' fromField='value_changed' toNode='FloatConverter' toField='FloatValue'/> |
| 92 | < ROUTE fromNode='FloatConverter' fromField='StringsResult' toNode='FloatText' toField='set_string'/> |
| 93 | </Transform> |
| 94 | </Group> |
| 95 | </Scene> |
| 96 | </X3D> |
DEF nodes index:
BEGIN_MIDDLE,
ClockTrigger,
ConvertTimeToBoolean,
FloatClock,
FloatConverter,
FloatCounter,
FloatText,
IntegerConverter,
IntegerText,
MIDDLE_MIDDLE,
TriggerNode
Event Graph ROUTE Table entries with 7 ROUTE connections total, showing X3D event-model relationships for this scene.
Each row shows an event cascade that may occur during a single timestamp interval between frame renderings, as part of the X3D execution model.
|
ClockTrigger
TimeSensor cycleTime SFTime |
ConvertTimeToBoolean
BooleanTrigger set_triggerTime SFTime |
then
|
ConvertTimeToBoolean
BooleanTrigger triggerTrue SFBool |
TriggerNode
IntegerTrigger set_boolean SFBool |
then
|
TriggerNode
IntegerTrigger triggerValue SFInt32 |
IntegerConverter
ProtoInstance IntegerValue SFInt32 |
then
|
IntegerConverter
ProtoInstance StringsResult MFString |
IntegerText
Text set_string MFString |
|
FloatClock
TimeSensor fraction_changed SFFloat |
FloatCounter
ScalarInterpolator set_fraction SFFloat |
then
|
FloatCounter
ScalarInterpolator value_changed SFFloat |
FloatConverter
ProtoInstance FloatValue SFFloat |
then
|
FloatConverter
ProtoInstance StringsResult MFString |
FloatText
Text set_string MFString |
|
FloatConverter
ProtoInstance StringsResult MFString |
FloatText
Text set_string MFString |
|
IntegerConverter
ProtoInstance StringsResult MFString |
IntegerText
Text set_string MFString |
<!--
Color-coding legend: X3D terminology
<X3dNode
DEF='idName' field='value'/>
matches XML terminology
<XmlElement
DEF='idName' attribute='value'/>
(Light-blue background: event-based behavior node or statement)
(Grey background inside box: inserted documentation)
(Magenta background: X3D Extensibility)
<ProtoInstance name='ProtoName'>
<field
name='fieldName'/> </ProtoInstance>
-->
<!--
For additional help information about X3D scenes, please see X3D Tooltips, X3D Resources, and X3D Scene Authoring Hints.
-->
