Schema SavageModelingAnalysisLanguage1.0.xsd

schema location:	https://savage.nps.edu/Savage/Tools/SMAL/SavageModelingAnalysisLanguage1.0.xsd
attribute form default:	unqualified
element form default:	qualified

Attributes	Elements	Complex types	Attr. groups
areaUnits	AirTemperatureCondition	AttributeExtensibleSMALElementType	attlist.SampleConfigurationParameters

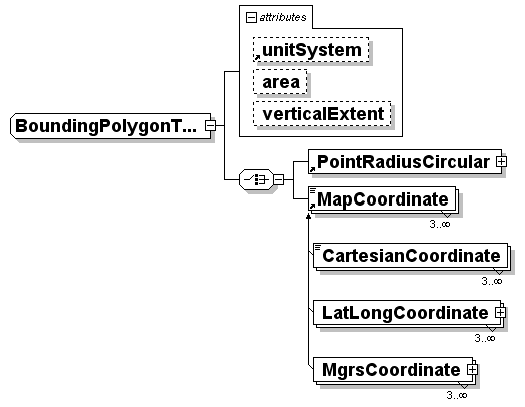

duration	AssociatedEntity	BoundingPolygonType

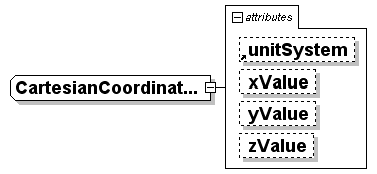

linearUnits	Association	CartesianCoordinateType
speedUnits	AssociationSet	ElementExtensibleSMALElementType
startTime	AttachmentPoint	FullyExtensibleSMALElementType

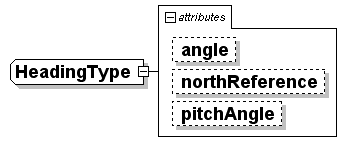

temperatureUnits	AttachmentPointLocation	HeadingType

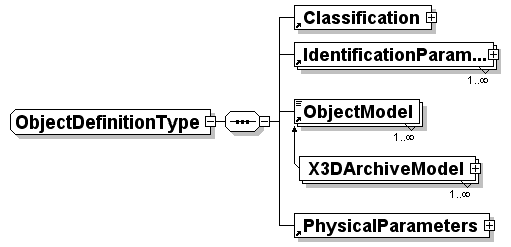

unitSystem	AttachmentPointSet	ObjectDefinitionType

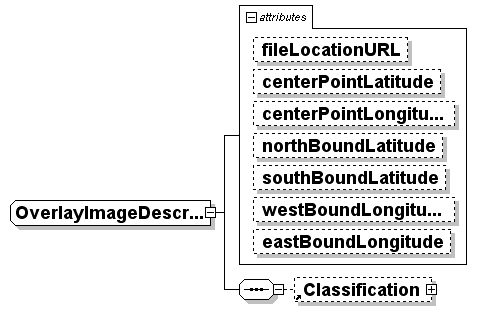

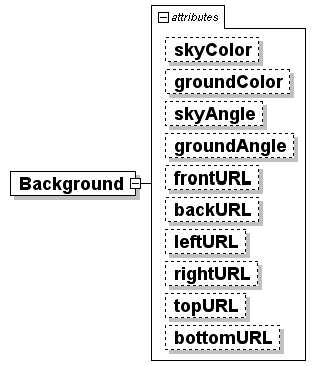

weightUnits	Background	OverlayImageDescriptorType

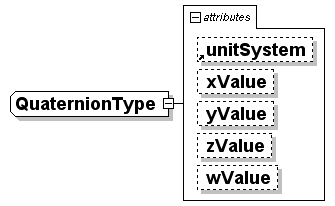

	BehaviorParameterSet	QuaternionType

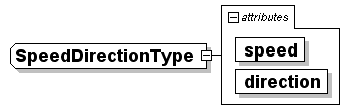

	CartesianCoordinate	SpeedDirectionType

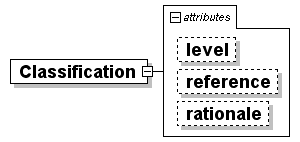

	Classification	TemperatureConditionType
	CloudConditionSet
	CloudLayer
	CurrentConditionParameters
	DirectionOfMotion
	DisConfiguration
	DynamicResponseConstraints
	EntityDefinition
	EntitySet
	EnvironmentalCondition
	EnvironmentalConditionSet

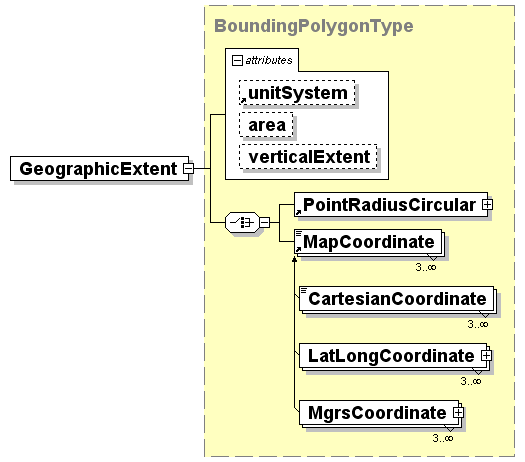

	GeographicExtent

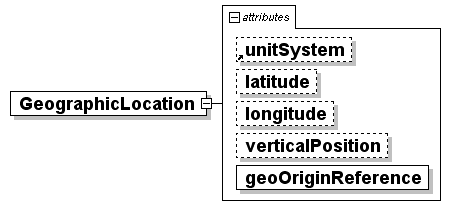

	GeographicLocation

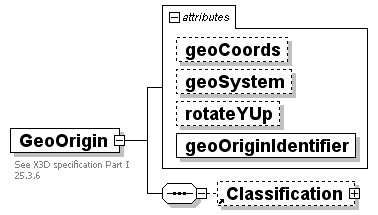

	GeoOrigin
	GlobalVirtualLocation
	head

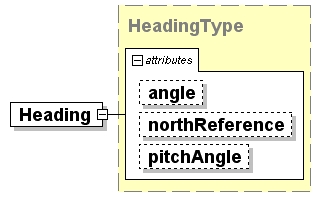

	Heading
	HlaConfiguration
	IdentificationParameters

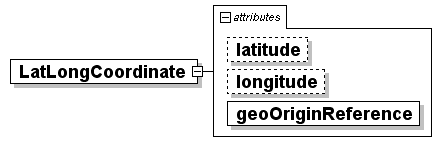

	LatLongCoordinate

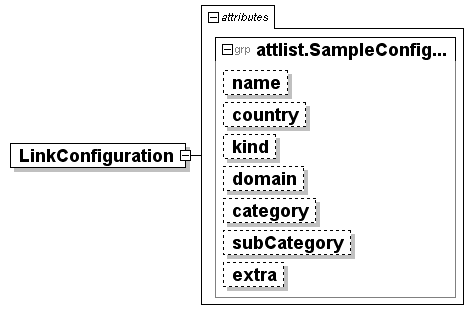

	LinkConfiguration

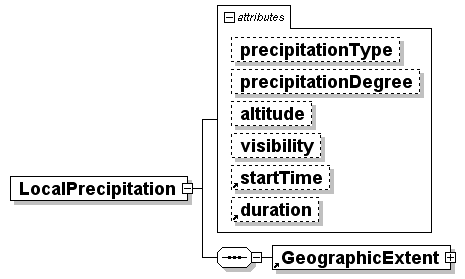

	LocalPrecipitation
	Location

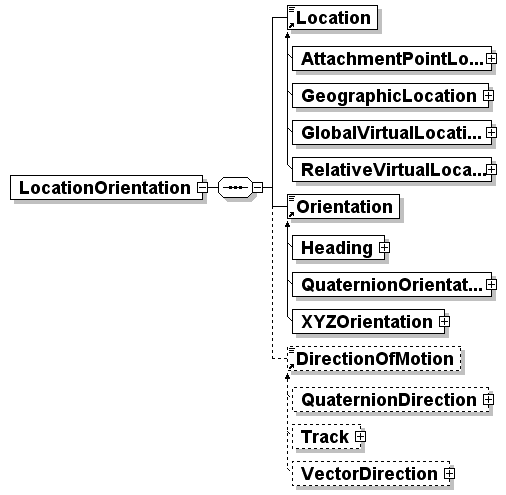

	LocationOrientation
	MapCoordinate
	meta
	MgrsCoordinate

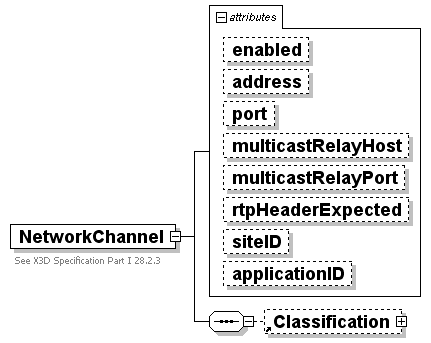

	NetworkChannel
	NetworkedCommunicationParameterSet
	ObjectModel
	Orientation
	OverlayImageDescriptor
	OverlaySet
	OverlaySetChart
	OverlaySetImagery

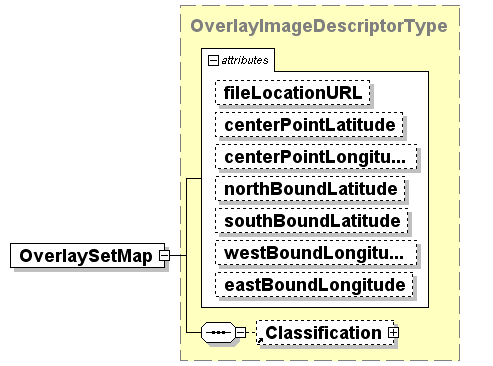

	OverlaySetMap
	Parameter
	PhysicalConstraints
	PhysicalParameters

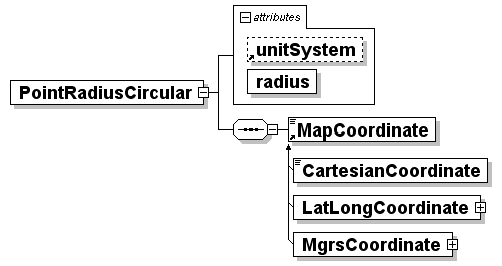

	PointRadiusCircular
	PrecipitationConditionSet
	QuaternionDirection
	QuaternionOrientation
	RelativeVirtualLocation
	SeaState

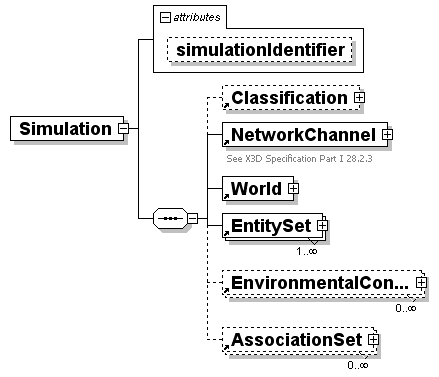

	Simulation

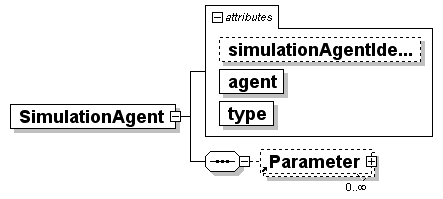

	SimulationAgent
	SMAL

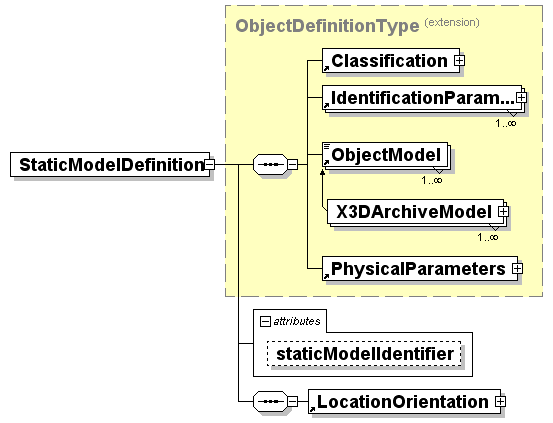

	StaticModelDefinition
	StaticModelSet
	TacticalConstraints

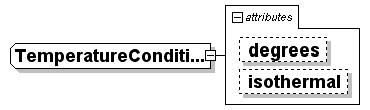

	TemperatureCondition

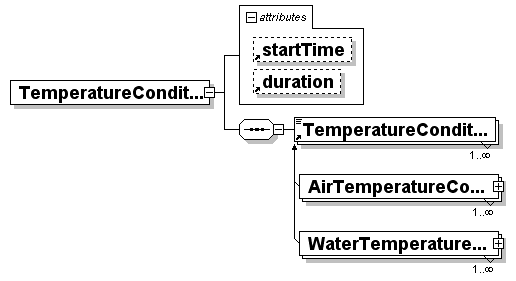

	TemperatureConditionSet

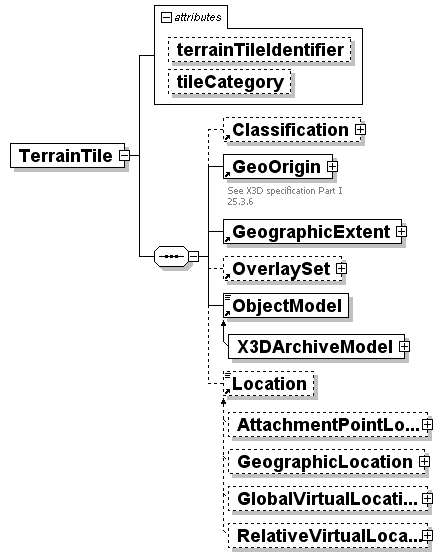

	TerrainTile
	TerrainTileSet

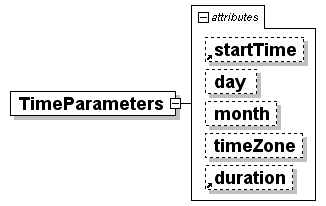

	TimeParameters
	Track
	VectorDirection

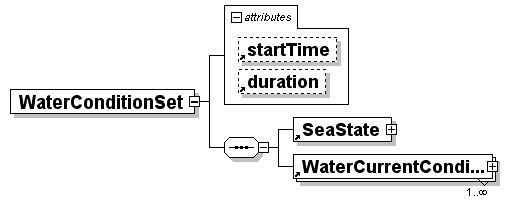

	WaterConditionSet

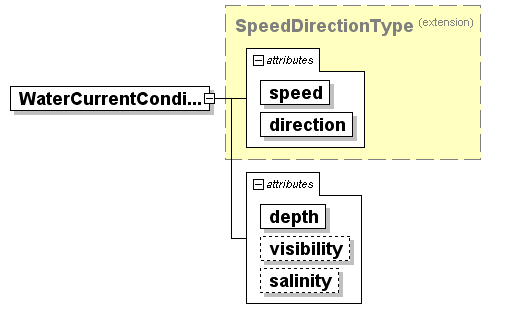

	WaterCurrentConditionAtDepth

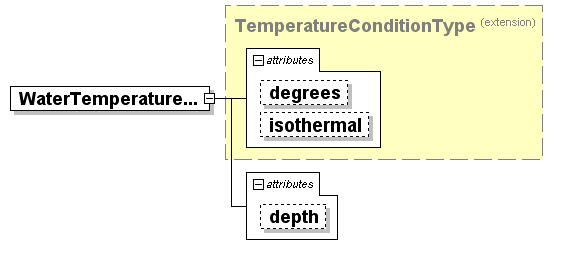

	WaterTemperatureCondition

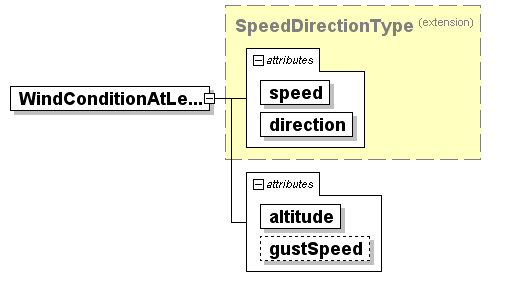

	WindConditionAtLevel
	WindConditionSet

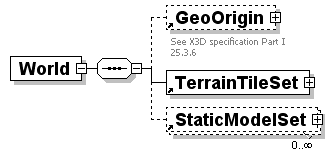

	World

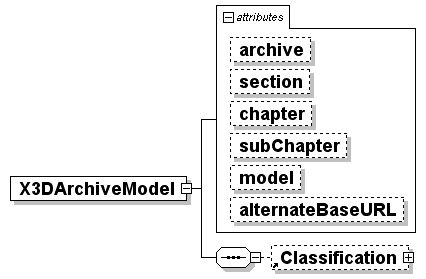

	X3DArchiveModel
	XYZOrientation

schema location:	https://savage.nps.edu/Savage/Tools/SMAL/SavageModelingAnalysisLanguageEnumerations1.0.xsd
attribute form default:	unqualified
element form default:	qualified

Simple types

accelerationUnitEnumeration

areaUnitEnumeration

attachmentCategoryEnumeration

classificationLevelEnumeration

cloudCoverageEnumeration

cloudTypeEnumeration

linearUnitEnumeration

modelArchiveEnumeration

northReferenceEnumeration

precipitationDegreeEnumeration

precipitationTypeEnumeration

simulationEngineEnumeration

speedUnitEnumeration

temperatureUnitEnumeration

tileCategoryEnumeration

transactionCategoryEnumeration

transactionDirectionEnumeration

unitSystemEnumeration

volumeUnitEnumeration

weightUnitEnumeration

schema location:	https://savage.nps.edu/Savage/Tools/SMAL/SavageModelingAnalysisLanguageDataTypes1.0.xsd
attribute form default:	unqualified
element form default:	qualified

Simple types

dayType

degreeType

fourTuplePattern

ipAddressPattern

latitudeOrdinatePattern

longitudeOrdinatePattern

mgrsCoordinatePattern

attribute areaUnits

enumeration	squareFeet
enumeration	squareMeters
enumeration	squareMiles
enumeration	squareKilometers
enumeration	squareNauticalMiles

source

<xs:attribute name="areaUnits" type="areaUnitEnumeration" default="squareKilometers"/>

<xs:attribute name="duration" type="xs:time" default="01:00:00"/>

attribute linearUnits

type

linearUnitEnumeration

enumeration	feet
enumeration	meters
enumeration	miles
enumeration	kilometers
enumeration	nauticalMiles

source

<xs:attribute name="linearUnits" type="linearUnitEnumeration" default="meters"/>

enumeration	feetPerSecond
enumeration	metersPerSecond
enumeration	milesPerHour
enumeration	kilometersPerHour
enumeration	knots

source

<xs:attribute name="speedUnits" type="speedUnitEnumeration" default="kilometersPerHour"/>

<xs:attribute name="startTime" type="xs:time" default="00:00:00"/>

attribute temperatureUnits

type

temperatureUnitEnumeration

enumeration	Celsius
enumeration	Fahrenheit

source

<xs:attribute name="temperatureUnits" type="temperatureUnitEnumeration" default="Celsius"/>

attribute unitSystem

type

unitSystemEnumeration

enumeration	English
enumeration	Metric

source

<xs:attribute name="unitSystem" type="unitSystemEnumeration" default="Metric"/>

attribute weightUnits

type

weightUnitEnumeration

enumeration	pounds
enumeration	kilograms
enumeration	shortTons
enumeration	metricTons

source

<xs:attribute name="weightUnits" type="weightUnitEnumeration" default="pounds"/>

element AirTemperatureCondition

diagram

type

extension of TemperatureConditionType

properties

content	complex
substGrp	TemperatureCondition

attributes

Name	Type	Use	Default	Fixed	Annotation
degrees	xs:float		15
isothermal	xs:boolean		false
altitude	nonNegativeFloat		0

annotation

appInfo

Holds the air temperature value and the base altitude at which this temperature begins. Temperature is assumed to decrease as altitude increases from the base altitude unless isothermal is set to true.

source

<xs:element name="AirTemperatureCondition" substitutionGroup="TemperatureCondition">
<xs:annotation>
    <xs:appinfo>Holds the air temperature value and the base altitude at which this temperature begins. Temperature is assumed to decrease as altitude increases from the base altitude unless isothermal is set to true.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="TemperatureConditionType">
        <xs:attribute name="altitude" type="nonNegativeFloat" default="0"/>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

attribute AirTemperatureCondition/@altitude

type

nonNegativeFloat

properties

isRef	0
default	0

<xs:attribute name="altitude" type="nonNegativeFloat" default="0"/>

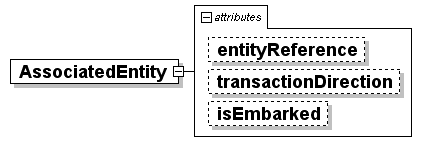

element AssociatedEntity

diagram

type

extension of FullyExtensibleSMALElementType

Name	Type	Use	Default	Fixed	Annotation
entityReference	xs:IDREF
transactionDirection	transactionDirectionEnumeration
isEmbarked	xs:boolean

source

<xs:element name="AssociatedEntity">
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:attribute name="entityReference" type="xs:IDREF"/>
        <xs:attribute name="transactionDirection" type="transactionDirectionEnumeration"/>
        <xs:attribute name="isEmbarked" type="xs:boolean"/>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

attribute AssociatedEntity/@entityReference

<xs:attribute name="entityReference" type="xs:IDREF"/>

attribute AssociatedEntity/@transactionDirection

type

transactionDirectionEnumeration

properties

isRef

facets

enumeration	SEND
enumeration	RECIEVE
enumeration	BIDIRECTIONAL

source

<xs:attribute name="transactionDirection" type="transactionDirectionEnumeration"/>

attribute AssociatedEntity/@isEmbarked

<xs:attribute name="isEmbarked" type="xs:boolean"/>

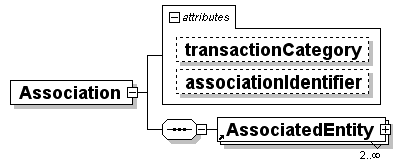

element Association

diagram

type

extension of FullyExtensibleSMALElementType

Name	Type	Use	Default	Fixed	Annotation
transactionCategory	transactionCategoryEnumeration
associationIdentifier	xs:ID

annotation

appInfo

Allows entities to be associated with each other by command relationship and/or as an embarking entity (onboard or attached to an entity).

source

<xs:element name="Association">
<xs:annotation>
    <xs:appinfo>Allows entities to be associated with each other by command relationship and/or as an embarking entity (onboard or attached to an entity).</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:sequence>
          <xs:element ref="AssociatedEntity" minOccurs="2" maxOccurs="unbounded"/>
        </xs:sequence>
        <xs:attribute name="transactionCategory" type="transactionCategoryEnumeration"/>
        <xs:attribute name="associationIdentifier" type="xs:ID"/>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

attribute Association/@transactionCategory

type

transactionCategoryEnumeration

properties

isRef

facets

enumeration	COMMAND
enumeration	SUPPORT
enumeration	COMMUNICATION

source

<xs:attribute name="transactionCategory" type="transactionCategoryEnumeration"/>

attribute Association/@associationIdentifier

<xs:attribute name="associationIdentifier" type="xs:ID"/>

element AssociationSet

diagram

type

extension of FullyExtensibleSMALElementType

Collects all Association elements for a Simulation.

source

<xs:element name="AssociationSet">
<xs:annotation>
    <xs:appinfo>Collects all Association elements for a Simulation.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:sequence>
          <xs:element ref="Association" maxOccurs="unbounded"/>
          <xs:element name="Assembly" minOccurs="0">
            <xs:complexType>
              <xs:attribute name="viskitAssembly" type="xs:anyURI"/>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

element AssociationSet/Assembly

diagram

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

attributes

Name	Type	Use	Default	Fixed	Annotation
viskitAssembly	xs:anyURI

source

<xs:element name="Assembly" minOccurs="0">
<xs:complexType>
<xs:attribute name="viskitAssembly" type="xs:anyURI"/>
</xs:complexType>
</xs:element>

attribute AssociationSet/Assembly/@viskitAssembly

<xs:attribute name="viskitAssembly" type="xs:anyURI"/>

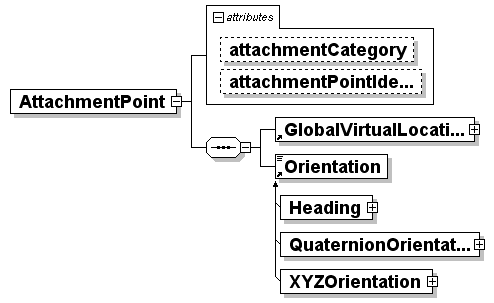

element AttachmentPoint

diagram

type

extension of FullyExtensibleSMALElementType

GlobalVirtualLocation Orientation

Name	Type	Use	Default	Fixed	Annotation
attachmentCategory	attachmentCategoryEnumeration
attachmentPointIdentifier	xs:ID

annotation

appInfo

Allows the attachment to this unit of independently operating entities by type and location. This AttachmentPoint can be uniquely identified using the attachmentPointIdentifier attribute.

source

<xs:element name="AttachmentPoint">
<xs:annotation>
    <xs:appinfo>Allows the attachment to this unit of independently operating entities by type and location. This AttachmentPoint can be uniquely identified using the attachmentPointIdentifier attribute.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:sequence>
          <xs:annotation>
            <xs:appinfo>The GlobalVirtualLocation is used to modify the position of the AttachmentPoint from the origin of the object to which it belongs.</xs:appinfo>
            <xs:appinfo>The Orientation element is used to modify the orientation of the AttachmentPoint from the orientation of the object to which it belongs.</xs:appinfo>
          </xs:annotation>
          <xs:element ref="GlobalVirtualLocation"/>
          <xs:element ref="Orientation"/>
        </xs:sequence>
        <xs:attribute name="attachmentCategory" type="attachmentCategoryEnumeration"/>
        <xs:attribute name="attachmentPointIdentifier" type="xs:ID"/>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

attribute AttachmentPoint/@attachmentCategory

type

attachmentCategoryEnumeration

properties

isRef

facets

enumeration	WEAPON_MOUNT
enumeration	SENSOR_MOUNT
enumeration	EMBARKING_POINT

source

<xs:attribute name="attachmentCategory" type="attachmentCategoryEnumeration"/>

attribute AttachmentPoint/@attachmentPointIdentifier

<xs:attribute name="attachmentPointIdentifier" type="xs:ID"/>

element AttachmentPointLocation

diagram

type

extension of AttributeExtensibleSMALElementType

properties

content	complex
substGrp	Location

attributes

Name	Type	Use	Default	Fixed	Annotation
attachmentPointReference	xs:IDREF

annotation

appInfo

Object AttachmentPoint reference-based location element. The @attachmentPointReference value is used to reference the @attachmentPointIdentifier value from an AttachmentPoint element.

source

<xs:element name="AttachmentPointLocation" substitutionGroup="Location">
<xs:annotation>
    <xs:appinfo>Object AttachmentPoint reference-based location element. The @attachmentPointReference value is used to reference the @attachmentPointIdentifier value from an AttachmentPoint element.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="AttributeExtensibleSMALElementType">
        <xs:attribute name="attachmentPointReference" type="xs:IDREF"/>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

attribute AttachmentPointLocation/@attachmentPointReference

<xs:attribute name="attachmentPointReference" type="xs:IDREF"/>

element AttachmentPointSet

diagram

type

extension of FullyExtensibleSMALElementType

Collects the set of locations at which other objects can be attached
to this one.

source

<xs:element name="AttachmentPointSet">
<xs:annotation>
    <xs:appinfo>Collects the set of locations at which other objects can be attached
to this one.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:sequence>
          <xs:element ref="AttachmentPoint" maxOccurs="unbounded"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

element Background

diagram

type

extension of FullyExtensibleSMALElementType

EnvironmentalCondition

attributes

Name	Type	Use	Default	Fixed	Annotation
skyColor	xs:string
groundColor	xs:string
skyAngle	xs:float
groundAngle	xs:float
frontURL	xs:anyURI
backURL	xs:anyURI
leftURL	xs:anyURI
rightURL	xs:anyURI
topURL	xs:anyURI
bottomURL	xs:anyURI

annotation

appInfo

Holds information for filling the X3D Background node which is used to set up a skybox or simple background colors.

source

attribute Background/@skyColor

<xs:attribute name="skyColor" type="xs:string"/>

attribute Background/@groundColor

<xs:attribute name="groundColor" type="xs:string"/>

attribute Background/@skyAngle

<xs:attribute name="skyAngle" type="xs:float"/>

attribute Background/@groundAngle

<xs:attribute name="groundAngle" type="xs:float"/>

attribute Background/@frontURL

<xs:attribute name="frontURL" type="xs:anyURI"/>

attribute Background/@backURL

<xs:attribute name="backURL" type="xs:anyURI"/>

attribute Background/@leftURL

<xs:attribute name="leftURL" type="xs:anyURI"/>

attribute Background/@rightURL

<xs:attribute name="rightURL" type="xs:anyURI"/>

attribute Background/@topURL

<xs:attribute name="topURL" type="xs:anyURI"/>

attribute Background/@bottomURL

<xs:attribute name="bottomURL" type="xs:anyURI"/>

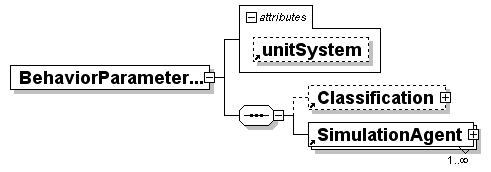

element BehaviorParameterSet

diagram

type

extension of FullyExtensibleSMALElementType

Classification SimulationAgent

Name	Type	Use	Default	Fixed	Annotation
unitSystem			Metric

annotation

appInfo

Data required for proper agent-based behavior simulation. NOTE: Knots
and nautical miles are not used in parameters or modeling, only Metric or English
units are used in SMAL files.

source

<xs:element name="BehaviorParameterSet">
<xs:annotation>
    <xs:appinfo>Data required for proper agent-based behavior simulation. NOTE: Knots
and nautical miles are not used in parameters or modeling, only Metric or English
units are used in SMAL files.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:sequence>
          <xs:element ref="Classification" minOccurs="0"/>
          <xs:element ref="SimulationAgent" maxOccurs="unbounded"/>
        </xs:sequence>
        <xs:attribute ref="unitSystem"/>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

element CartesianCoordinate

Cartesian coordinate system coordinate-value location element.

source

<xs:element name="CartesianCoordinate" substitutionGroup="MapCoordinate">
<xs:annotation>
<xs:appinfo>Cartesian coordinate system coordinate-value location element.</xs:appinfo>
</xs:annotation>
</xs:element>

element Classification

diagram

type

extension of FullyExtensibleSMALElementType

elements	BehaviorParameterSet GeoOrigin head NetworkChannel OverlaySet PhysicalParameters Simulation TerrainTile X3DArchiveModel
complexTypes	ObjectDefinitionType OverlayImageDescriptorType

attributes

Name	Type	Use	Default	Fixed	Annotation
level	classificationLevelEnumeration	optional	UNCLASSIFIED
reference	xs:string	optional
rationale	xs:string	optional

source

<xs:element name="Classification">
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:attribute name="level" type="classificationLevelEnumeration" use="optional" default="UNCLASSIFIED"/>
        <xs:attribute name="reference" type="xs:string" use="optional"/>
        <xs:attribute name="rationale" type="xs:string" use="optional"/>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

attribute Classification/@level

type

classificationLevelEnumeration

properties

isRef	0
default	UNCLASSIFIED
use	optional

facets

enumeration	UNCLASSIFIED
enumeration	FOUO
enumeration	CONFIDENTIAL
enumeration	SECRET
enumeration	TOPSECRET

source

<xs:attribute name="level" type="classificationLevelEnumeration" use="optional" default="UNCLASSIFIED"/>

attribute Classification/@reference

type

xs:string

properties

isRef	0
use	optional

source

<xs:attribute name="reference" type="xs:string" use="optional"/>

attribute Classification/@rationale

type

xs:string

properties

isRef	0
use	optional

source

<xs:attribute name="rationale" type="xs:string" use="optional"/>

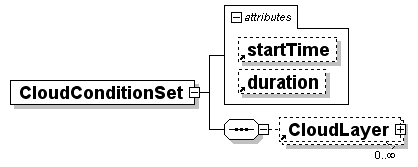

element CloudConditionSet

diagram

type

extension of FullyExtensibleSMALElementType

EnvironmentalCondition

attributes

Name	Type	Use	Default	Fixed	Annotation
startTime			00:00:00
duration			01:00:00

annotation

appInfo

Collects the cloud condition elements for a single EnvironmentalCondition element.

source

<xs:element name="CloudConditionSet">
<xs:annotation>
    <xs:appinfo>Collects the cloud condition elements for a single EnvironmentalCondition element.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:sequence>
          <xs:element ref="CloudLayer" minOccurs="0" maxOccurs="unbounded"/>
        </xs:sequence>
        <xs:attribute ref="startTime"/>
        <xs:attribute ref="duration"/>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

LocationOrientation GeographicExtent

Name	Type	Use	Default	Fixed	Annotation
altitude	xs:float
coverage	cloudCoverageEnumeration		CLR
cloudType	cloudTypeEnumeration		CUMULUS
visibility	nonNegativeFloat

annotation

appInfo

Clouds are defined in layers and can optionally be localized by using the LocationOrientation and GeographicExtent elements. Altitude represents the cloud base for that layer and its depth as defined in the GeographicExtent element extends upward. Cloud conditions by altitude are considered persistent in a given Environmental condition. Changes may be made using multiple CloudConditionSets.

source

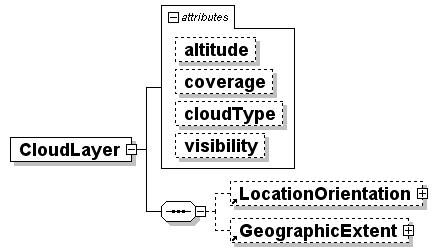

<xs:element name="CloudLayer">
<xs:annotation>
    <xs:appinfo>Clouds are defined in layers and can optionally be localized by using the LocationOrientation and GeographicExtent elements. Altitude represents the cloud base for that layer and its depth as defined in the GeographicExtent element extends upward. Cloud conditions by altitude are considered persistent in a given Environmental condition. Changes may be made using multiple CloudConditionSets.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:sequence>
      <xs:element ref="LocationOrientation" minOccurs="0"/>
      <xs:element ref="GeographicExtent" minOccurs="0"/>
    </xs:sequence>
    <xs:attribute name="altitude" type="xs:float"/>
    <xs:attribute name="coverage" type="cloudCoverageEnumeration" default="CLR"/>
    <xs:attribute name="cloudType" type="cloudTypeEnumeration" default="CUMULUS"/>
    <xs:attribute name="visibility" type="nonNegativeFloat"/>
</xs:complexType>
</xs:element>

attribute CloudLayer/@altitude

<xs:attribute name="altitude" type="xs:float"/>

attribute CloudLayer/@coverage

type

cloudCoverageEnumeration

properties

isRef	0
default	CLR

facets

enumeration	OVC
enumeration	BKN
enumeration	SCT
enumeration	CLR

source

<xs:attribute name="coverage" type="cloudCoverageEnumeration" default="CLR"/>

attribute CloudLayer/@cloudType

type

cloudTypeEnumeration

properties

isRef	0
default	CUMULUS

facets

enumeration	CUMULUS
enumeration	STRATUS
enumeration	CIRRUS

source

<xs:attribute name="cloudType" type="cloudTypeEnumeration" default="CUMULUS"/>

attribute CloudLayer/@visibility

<xs:attribute name="visibility" type="nonNegativeFloat"/>

element CurrentConditionParameters

diagram

type

extension of FullyExtensibleSMALElementType

Assumed to be along the current vehicle track.

Linear acceleration along global-aligned coordinate axes.

Degrees of heading change per second around global-aligned coordinate axes.

The volumetric amount of usable fuel aboard the vehicle.

All weight not attributable to the vehicle or internal fuel.

annotation

appInfo

Parameters used to describe the location, orientation, and state of an entity.

source

attribute CurrentConditionParameters/@currentSpeed

type

xs:float

properties

isRef	0
default	0

annotation

appInfo

Assumed to be along the current vehicle track.

source

<xs:attribute name="currentSpeed" type="xs:float" default="0">
<xs:annotation>
<xs:appinfo>Assumed to be along the current vehicle track.</xs:appinfo>
</xs:annotation>
</xs:attribute>

attribute CurrentConditionParameters/@currentAcceleration

type

threeTuplePattern

properties

isRef	0
use	optional

facets

pattern

(\+|\-)?([0-9]*.[0-9]*)( (\+|\-)?([0-9]*.[0-9]*)){2}

annotation

appInfo

Linear acceleration along global-aligned coordinate axes.

source

<xs:attribute name="currentAcceleration" type="threeTuplePattern" use="optional">
<xs:annotation>
<xs:appinfo>Linear acceleration along global-aligned coordinate axes.</xs:appinfo>
</xs:annotation>
</xs:attribute>

attribute CurrentConditionParameters/@currentTurnRate

type

xs:float

properties

isRef	0
use	optional

annotation

appInfo

Degrees of heading change per second around global-aligned coordinate axes.

source

<xs:attribute name="currentTurnRate" type="xs:float" use="optional">
<xs:annotation>
<xs:appinfo>Degrees of heading change per second around global-aligned coordinate axes.</xs:appinfo>
</xs:annotation>
</xs:attribute>

attribute CurrentConditionParameters/@currentFuelState

type

xs:float

properties

isRef	0
use	optional

annotation

appInfo

The volumetric amount of usable fuel aboard the vehicle.

source

<xs:attribute name="currentFuelState" type="xs:float" use="optional">
<xs:annotation>
<xs:appinfo>The volumetric amount of usable fuel aboard the vehicle.</xs:appinfo>
</xs:annotation>
</xs:attribute>

attribute CurrentConditionParameters/@currentPayloadWeight

type

xs:float

properties

isRef	0
use	optional

annotation

appInfo

All weight not attributable to the vehicle or internal fuel.

source

<xs:attribute name="currentPayloadWeight" type="xs:float" use="optional">
<xs:annotation>
<xs:appinfo>All weight not attributable to the vehicle or internal fuel.</xs:appinfo>
</xs:annotation>
</xs:attribute>

element DirectionOfMotion

<xs:element name="DirectionOfMotion" abstract="true"/>

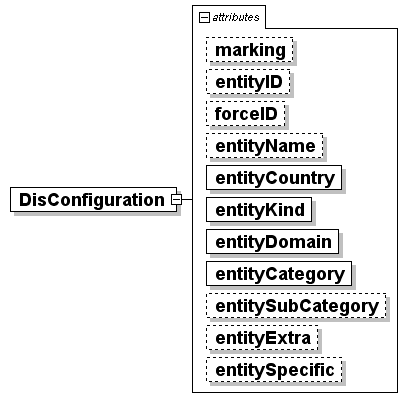

element DisConfiguration

diagram

type

extension of FullyExtensibleSMALElementType

NetworkedCommunicationParameterSet

attributes

Name	Type	Use	Default	Fixed	Annotation
marking	xs:string	optional
entityID	xs:nonNegativeInteger	optional
forceID	xs:nonNegativeInteger	optional
entityName	xs:NMTOKEN	optional
entityCountry	xs:nonNegativeInteger	required
entityKind	xs:nonNegativeInteger	required
entityDomain	xs:nonNegativeInteger	required
entityCategory	xs:nonNegativeInteger	required
entitySubCategory	xs:nonNegativeInteger	optional
entityExtra	xs:nonNegativeInteger	optional
entitySpecific	xs:nonNegativeInteger	optional

source

attribute DisConfiguration/@marking

type

xs:string

properties

isRef	0
use	optional

source

<xs:attribute name="marking" type="xs:string" use="optional"/>

attribute DisConfiguration/@entityID

type

xs:nonNegativeInteger

properties

isRef	0
use	optional

source

<xs:attribute name="entityID" type="xs:nonNegativeInteger" use="optional"/>

attribute DisConfiguration/@forceID

type

xs:nonNegativeInteger

properties

isRef	0
use	optional

source

<xs:attribute name="forceID" type="xs:nonNegativeInteger" use="optional"/>

attribute DisConfiguration/@entityName

type

xs:NMTOKEN

properties

isRef	0
use	optional

source

<xs:attribute name="entityName" type="xs:NMTOKEN" use="optional"/>

attribute DisConfiguration/@entityCountry

type

xs:nonNegativeInteger

properties

isRef	0
use	required

source

<xs:attribute name="entityCountry" type="xs:nonNegativeInteger" use="required"/>

attribute DisConfiguration/@entityKind

type

xs:nonNegativeInteger

properties

isRef	0
use	required

source

<xs:attribute name="entityKind" type="xs:nonNegativeInteger" use="required"/>

attribute DisConfiguration/@entityDomain

type

xs:nonNegativeInteger

properties

isRef	0
use	required

source

<xs:attribute name="entityDomain" type="xs:nonNegativeInteger" use="required"/>

attribute DisConfiguration/@entityCategory

type

xs:nonNegativeInteger

properties

isRef	0
use	required

source

<xs:attribute name="entityCategory" type="xs:nonNegativeInteger" use="required"/>

attribute DisConfiguration/@entitySubCategory

type

xs:nonNegativeInteger

properties

isRef	0
use	optional

source

<xs:attribute name="entitySubCategory" type="xs:nonNegativeInteger" use="optional"/>

attribute DisConfiguration/@entityExtra

type

xs:nonNegativeInteger

properties

isRef	0
use	optional

source

<xs:attribute name="entityExtra" type="xs:nonNegativeInteger" use="optional"/>

attribute DisConfiguration/@entitySpecific

type

xs:nonNegativeInteger

properties

isRef	0
use	optional

source

<xs:attribute name="entitySpecific" type="xs:nonNegativeInteger" use="optional"/>

element DynamicResponseConstraints

diagram

type

extension of FullyExtensibleSMALElementType

Tactical Radius for ships or Best Cornering Speed turn radius for aircraft.

Performance characteristics including speed, acceleration, and turn rate and radius.

source

attribute DynamicResponseConstraints/@centerOfGravity

type

threeTuplePattern

properties

isRef	0
default	0 0 0

facets

pattern

(\+|\-)?([0-9]*.[0-9]*)( (\+|\-)?([0-9]*.[0-9]*)){2}

source

<xs:attribute name="centerOfGravity" type="threeTuplePattern" default="0 0 0"/>

attribute DynamicResponseConstraints/@aerodynamicCenter

type

threeTuplePattern

properties

isRef	0
use	optional

facets

pattern

(\+|\-)?([0-9]*.[0-9]*)( (\+|\-)?([0-9]*.[0-9]*)){2}

source

<xs:attribute name="aerodynamicCenter" type="threeTuplePattern" use="optional"/>

attribute DynamicResponseConstraints/@centerOfBuoyancy

type

threeTuplePattern

properties

isRef	0
use	optional

facets

pattern

(\+|\-)?([0-9]*.[0-9]*)( (\+|\-)?([0-9]*.[0-9]*)){2}

source

<xs:attribute name="centerOfBuoyancy" type="threeTuplePattern" use="optional"/>

attribute DynamicResponseConstraints/@maximumSpeed

<xs:attribute name="maximumSpeed" type="xs:float"/>

attribute DynamicResponseConstraints/@cruiseSpeed

<xs:attribute name="cruiseSpeed" type="xs:float"/>

attribute DynamicResponseConstraints/@maximumAltitude

type

xs:float

properties

isRef	0
use	optional

source

<xs:attribute name="maximumAltitude" type="xs:float" use="optional"/>

attribute DynamicResponseConstraints/@cruiseAltitude

type

xs:float

properties

isRef	0
use	optional

source

<xs:attribute name="cruiseAltitude" type="xs:float" use="optional"/>

attribute DynamicResponseConstraints/@maximumDepth

type

xs:float

properties

isRef	0
use	optional

source

<xs:attribute name="maximumDepth" type="xs:float" use="optional"/>

attribute DynamicResponseConstraints/@cruiseDepth

type

xs:float

properties

isRef	0
use	optional

source

<xs:attribute name="cruiseDepth" type="xs:float" use="optional"/>

attribute DynamicResponseConstraints/@maximumAcceleration

type

xs:float

properties

isRef	0
use	optional

source

<xs:attribute name="maximumAcceleration" type="xs:float" use="optional"/>

attribute DynamicResponseConstraints/@maximumDeceleration

type

xs:float

properties

isRef	0
use	optional

source

<xs:attribute name="maximumDeceleration" type="xs:float" use="optional"/>

attribute DynamicResponseConstraints/@minimumTurnRadius

type

xs:float

properties

isRef	0
use	optional

annotation

appInfo

Tactical Radius for ships or Best Cornering Speed turn radius for aircraft.

source

<xs:attribute name="minimumTurnRadius" type="xs:float" use="optional">
<xs:annotation>
<xs:appinfo>Tactical Radius for ships or Best Cornering Speed turn radius for aircraft.</xs:appinfo>
</xs:annotation>
</xs:attribute>

attribute DynamicResponseConstraints/@maximumTurnRate

type

xs:float

properties

isRef	0
use	optional

source

<xs:attribute name="maximumTurnRate" type="xs:float" use="optional"/>

attribute DynamicResponseConstraints/@maximumFuelCapacity

type

xs:float

properties

isRef	0
use	optional

source

<xs:attribute name="maximumFuelCapacity" type="xs:float" use="optional"/>

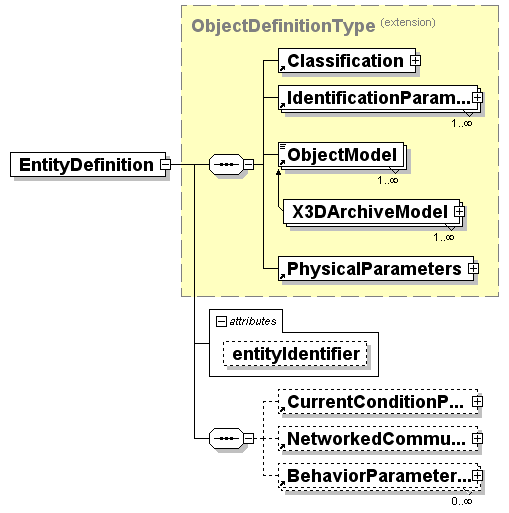

element EntityDefinition

diagram

type

extension of ObjectDefinitionType

Classification IdentificationParameters ObjectModel PhysicalParameters CurrentConditionParameters NetworkedCommunicationParameterSet BehaviorParameterSet

Name	Type	Use	Default	Fixed	Annotation
entityIdentifier	xs:ID

annotation

appInfo

Defines a single entity down to network identification. Also includes default physical parameters and behavioral data for that particular entity type

source

<xs:element name="EntityDefinition">
<xs:annotation>
    <xs:appinfo>Defines a single entity down to network identification. Also includes default physical parameters and behavioral data for that particular entity type</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="ObjectDefinitionType">
        <xs:sequence>
          <xs:element ref="CurrentConditionParameters" minOccurs="0"/>
          <xs:element ref="NetworkedCommunicationParameterSet" minOccurs="0"/>
          <xs:element ref="BehaviorParameterSet" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
              <xs:appinfo>Multiple BehaviorParameters sets allow for sensitivity analysis using different parameter settings or to provide unclassified and classified parameters for the purpose of creating unclassified products from otherwise classified datasets.</xs:appinfo>
            </xs:annotation>
          </xs:element>
        </xs:sequence>
        <xs:attribute name="entityIdentifier" type="xs:ID"/>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

attribute EntityDefinition/@entityIdentifier

<xs:attribute name="entityIdentifier" type="xs:ID"/>

element EntitySet

diagram

type

extension of FullyExtensibleSMALElementType

Contains the active entities which operate in the virtual environment.

source

<xs:element name="EntitySet">
<xs:annotation>
    <xs:appinfo>Contains the active entities which operate in the virtual environment.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:sequence>
          <xs:element ref="EntityDefinition" maxOccurs="unbounded"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

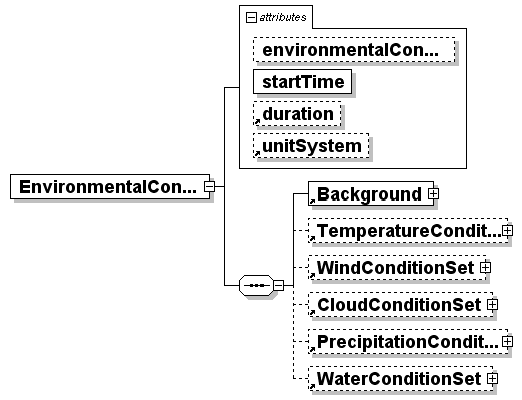

element EnvironmentalCondition

diagram

type

extension of FullyExtensibleSMALElementType

Background TemperatureConditionSet WindConditionSet CloudConditionSet PrecipitationConditionSet WaterConditionSet

used by

element

EnvironmentalConditionSet

attributes

Name	Type	Use	Default	Fixed	Annotation
environmentalConditionIdentifier	xs:ID
startTime	xs:time	required
duration		optional	01:00:00
unitSystem		optional	Metric

annotation

appInfo

Contains a list of weather conditions such as cloud layers, temperature, precipitation, winds, and water currents, as well as the start time and duration of this set of conditions. Multiple sets of conditions can be established to create complex weather patterns.

source

<xs:element name="EnvironmentalCondition">
<xs:annotation>
    <xs:appinfo>Contains a list of weather conditions such as cloud layers, temperature, precipitation, winds, and water currents, as well as the start time and duration of this set of conditions. Multiple sets of conditions can be established to create complex weather patterns.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:sequence>
          <xs:element ref="Background"/>
          <xs:element ref="TemperatureConditionSet" minOccurs="0"/>
          <xs:element ref="WindConditionSet" minOccurs="0"/>
          <xs:element ref="CloudConditionSet" minOccurs="0"/>
          <xs:element ref="PrecipitationConditionSet" minOccurs="0"/>
          <xs:element ref="WaterConditionSet" minOccurs="0"/>
        </xs:sequence>
        <xs:attribute name="environmentalConditionIdentifier" type="xs:ID"/>
        <xs:attribute name="startTime" type="xs:time" use="required"/>
        <xs:attribute ref="duration" use="optional"/>
        <xs:attribute ref="unitSystem" use="optional"/>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

attribute EnvironmentalCondition/@environmentalConditionIdentifier

<xs:attribute name="environmentalConditionIdentifier" type="xs:ID"/>

attribute EnvironmentalCondition/@startTime

type

xs:time

properties

isRef	0
use	required

source

<xs:attribute name="startTime" type="xs:time" use="required"/>

element EnvironmentalConditionSet

diagram

type

extension of FullyExtensibleSMALElementType

TimeParameters EnvironmentalCondition

Holds information about changeable world conditions such as time of day and weather.

source

<xs:element name="EnvironmentalConditionSet">
<xs:annotation>
    <xs:appinfo>Holds information about changeable world conditions such as time of day and weather.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:sequence>
          <xs:element ref="TimeParameters"/>
          <xs:element ref="EnvironmentalCondition" maxOccurs="unbounded"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

element GeographicExtent

PointRadiusCircular MapCoordinate

used by

elements

CloudLayer LocalPrecipitation TerrainTile

attributes

Name	Type	Use	Default	Fixed	Annotation
unitSystem			Metric
area	xs:float	optional	0.0
verticalExtent	xs:float	optional	0.0

annotation

appInfo

A BoundingPolygonType element used to describe the boundaries of a geographic element such as a TerrainTile.

source

<xs:element name="GeographicExtent" type="BoundingPolygonType">
<xs:annotation>
<xs:appinfo>A BoundingPolygonType element used to describe the boundaries of a geographic element such as a TerrainTile.</xs:appinfo>
</xs:annotation>
</xs:element>

element GeographicLocation

diagram

type

extension of FullyExtensibleSMALElementType

properties

content	complex
substGrp	Location

attributes

Name	Type	Use	Default	Fixed	Annotation
unitSystem			Metric
latitude	latitudeOrdinatePattern
longitude	longitudeOrdinatePattern
verticalPosition	xs:float
geoOriginReference	xs:IDREF	required

annotation

appInfo

Global geographic reference based geographic location element. References a GeoOrigin element.

source

<xs:element name="GeographicLocation" substitutionGroup="Location">
<xs:annotation>
    <xs:appinfo>Global geographic reference based geographic location element. References a GeoOrigin element.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:attribute ref="unitSystem"/>
        <xs:attribute name="latitude" type="latitudeOrdinatePattern"/>
        <xs:attribute name="longitude" type="longitudeOrdinatePattern"/>
        <xs:attribute name="verticalPosition" type="xs:float"/>
        <xs:attribute name="geoOriginReference" type="xs:IDREF" use="required"/>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

attribute GeographicLocation/@latitude

type

latitudeOrdinatePattern

(((N|n)|(S|s))(([0-8]?[0-9])|90) ([0-5]?[0-9])?(\.[0-9]*))

source

<xs:attribute name="latitude" type="latitudeOrdinatePattern"/>

attribute GeographicLocation/@longitude

type

longitudeOrdinatePattern

(((E|e)|(W|w))([0-9]?[0-9]|1[0-8][0-9]) ([0-5]?[0-9])?(\.[0-9]*))

source

<xs:attribute name="longitude" type="longitudeOrdinatePattern"/>

attribute GeographicLocation/@verticalPosition

<xs:attribute name="verticalPosition" type="xs:float"/>

attribute GeographicLocation/@geoOriginReference

type

xs:IDREF

properties

isRef	0
use	required

source

<xs:attribute name="geoOriginReference" type="xs:IDREF" use="required"/>

element GeoOrigin

diagram

type

extension of FullyExtensibleSMALElementType

Two enumerations, one for spatial reference frames, the other for earth ellipsoid i.e. ["GD", "WE"] See X3D specification 25.2.3.

The GeoOrigin node defines an absolute geographic location and an implicit local coordinate frame against which geometry is referenced. This node is used to translate from geographical coordinates into a local Cartesian coordinate system which can be managed by the browser.

documentation

See X3D specification Part I 25.3.6

source

<xs:element name="GeoOrigin">
<xs:annotation>
    <xs:appinfo>The GeoOrigin node defines an absolute geographic location and an implicit local coordinate frame against which geometry is referenced. This node is used to translate from geographical coordinates into a local Cartesian coordinate system which can be managed by the browser.</xs:appinfo>
    <xs:documentation source="http://www.web3d.org/x3d/specifications/ISO-IEC-19775-FDIS-X3dAbstractSpecification/Part01/components/geodata.html">See X3D specification Part I 25.3.6</xs:documentation>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:sequence>
          <xs:element ref="Classification" minOccurs="0"/>
        </xs:sequence>
        <xs:attribute name="geoCoords" type="xs:string" use="optional" default="N00 0.0 W00 0.0"/>
        <xs:attribute name="geoSystem" type="xs:string" use="optional" default="'GD', 'WE'">
          <xs:annotation>
            <xs:appinfo>Two enumerations, one for spatial reference frames, the other for earth ellipsoid i.e. ["GD", "WE"] See X3D specification 25.2.3.</xs:appinfo>
          </xs:annotation>
        </xs:attribute>
        <xs:attribute name="rotateYUp" type="xs:boolean" use="optional" default="true"/>
        <xs:attribute name="geoOriginIdentifier" type="xs:ID" use="required"/>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

attribute GeoOrigin/@geoCoords

type

xs:string

properties

isRef	0
default	N00 0.0 W00 0.0
use	optional

source

<xs:attribute name="geoCoords" type="xs:string" use="optional" default="N00 0.0 W00 0.0"/>

attribute GeoOrigin/@geoSystem

type

xs:string

properties

isRef	0
default	'GD', 'WE'
use	optional

annotation

appInfo

Two enumerations, one for spatial reference frames, the other for earth ellipsoid i.e. ["GD", "WE"] See X3D specification 25.2.3.

source

<xs:attribute name="geoSystem" type="xs:string" use="optional" default="'GD', 'WE'">
<xs:annotation>
<xs:appinfo>Two enumerations, one for spatial reference frames, the other for earth ellipsoid i.e. ["GD", "WE"] See X3D specification 25.2.3.</xs:appinfo>
</xs:annotation>
</xs:attribute>

attribute GeoOrigin/@rotateYUp

type

xs:boolean

properties

isRef	0
default	true
use	optional

source

<xs:attribute name="rotateYUp" type="xs:boolean" use="optional" default="true"/>

attribute GeoOrigin/@geoOriginIdentifier

type

xs:ID

properties

isRef	0
use	required

source

<xs:attribute name="geoOriginIdentifier" type="xs:ID" use="required"/>

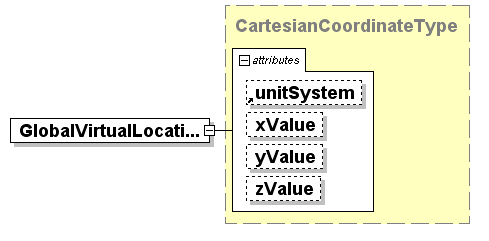

element GlobalVirtualLocation

diagram

type

CartesianCoordinateType

properties

content	complex
substGrp	Location

Name	Type	Use	Default	Fixed	Annotation
unitSystem			Metric
xValue	xs:float		0
yValue	xs:float		0
zValue	xs:float		0

annotation

appInfo

Current point of origin based virtual location element.

source

<xs:element name="GlobalVirtualLocation" type="CartesianCoordinateType" substitutionGroup="Location">
<xs:annotation>
<xs:appinfo>Current point of origin based virtual location element.</xs:appinfo>
</xs:annotation>
</xs:element>

<xs:element name="head">
<xs:complexType>
    <xs:sequence>
      <xs:element ref="Classification" minOccurs="0"/>
      <xs:element ref="meta" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
</xs:complexType>
</xs:element>

content	complex
substGrp	Orientation

attributes

Name	Type	Use	Default	Fixed	Annotation
angle	xs:float		0
northReference	northReferenceEnumeration		MAGNETIC
pitchAngle	xs:float		0

source

<xs:element name="Heading" type="HeadingType" substitutionGroup="Orientation"/>

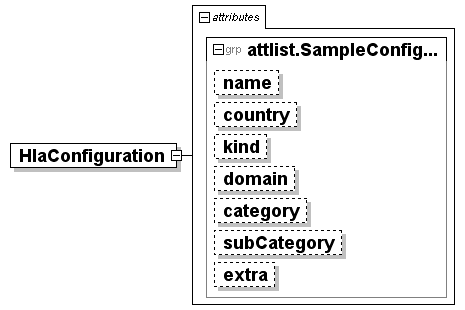

element HlaConfiguration

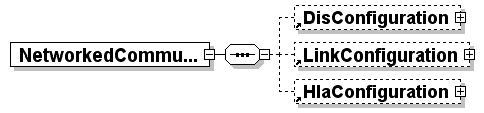

NetworkedCommunicationParameterSet

attributes

Name	Type	Use	Default	Fixed	Annotation
name	xs:NMTOKEN
country	xs:NMTOKEN
kind	xs:NMTOKEN
domain	xs:NMTOKEN
category	xs:NMTOKEN
subCategory	xs:NMTOKEN
extra	xs:NMTOKEN

source

<xs:element name="HlaConfiguration">

<xs:complexType>
<xs:attributeGroup ref="attlist.SampleConfigurationParameters"/>
</xs:complexType>
</xs:element>

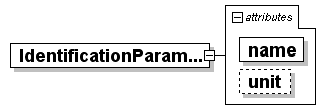

element IdentificationParameters

diagram

type

extension of FullyExtensibleSMALElementType

Name	Type	Use	Default	Fixed	Annotation
name	xs:string	required
unit	xs:string	optional

annotation

appInfo

Human-readable identifying data for model. NOTE: Identification parameters are distinct from DIS enumerations.

source

<xs:element name="IdentificationParameters">
<xs:annotation>
    <xs:appinfo>Human-readable identifying data for model. NOTE: Identification parameters are distinct from DIS enumerations.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:attribute name="name" type="xs:string" use="required"/>
        <xs:attribute name="unit" type="xs:string" use="optional"/>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

attribute IdentificationParameters/@name

type

xs:string

properties

isRef	0
use	required

source

<xs:attribute name="name" type="xs:string" use="required"/>

attribute IdentificationParameters/@unit

type

xs:string

properties

isRef	0
use	optional

source

<xs:attribute name="unit" type="xs:string" use="optional"/>

element LatLongCoordinate

diagram

type

extension of AttributeExtensibleSMALElementType

properties

content	complex
substGrp	MapCoordinate

attributes

Name	Type	Use	Default	Fixed	Annotation
latitude	latitudeOrdinatePattern		N00 00.0
longitude	longitudeOrdinatePattern		W00 00.0
geoOriginReference	xs:IDREF	required

annotation

appInfo

Latitude-Longitude coordinate system coordinate-value location element. References a GeoOrigin element.

source

<xs:element name="LatLongCoordinate" substitutionGroup="MapCoordinate">
<xs:annotation>
    <xs:appinfo>Latitude-Longitude coordinate system coordinate-value location element. References a GeoOrigin element.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="AttributeExtensibleSMALElementType">
        <xs:attribute name="latitude" type="latitudeOrdinatePattern" default="N00 00.0"/>
        <xs:attribute name="longitude" type="longitudeOrdinatePattern" default="W00 00.0"/>
        <xs:attribute name="geoOriginReference" type="xs:IDREF" use="required"/>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

attribute LatLongCoordinate/@latitude

type

latitudeOrdinatePattern

properties

isRef	0
default	N00 00.0

facets

pattern

(((N|n)|(S|s))(([0-8]?[0-9])|90) ([0-5]?[0-9])?(\.[0-9]*))

source

<xs:attribute name="latitude" type="latitudeOrdinatePattern" default="N00 00.0"/>

attribute LatLongCoordinate/@longitude

type

longitudeOrdinatePattern

properties

isRef	0
default	W00 00.0

facets

pattern

(((E|e)|(W|w))([0-9]?[0-9]|1[0-8][0-9]) ([0-5]?[0-9])?(\.[0-9]*))

source

<xs:attribute name="longitude" type="longitudeOrdinatePattern" default="W00 00.0"/>

attribute LatLongCoordinate/@geoOriginReference

type

xs:IDREF

properties

isRef	0
use	required

source

<xs:attribute name="geoOriginReference" type="xs:IDREF" use="required"/>

element LinkConfiguration

NetworkedCommunicationParameterSet

attributes

Name	Type	Use	Default	Fixed	Annotation
name	xs:NMTOKEN
country	xs:NMTOKEN
kind	xs:NMTOKEN
domain	xs:NMTOKEN
category	xs:NMTOKEN
subCategory	xs:NMTOKEN
extra	xs:NMTOKEN

source

<xs:element name="LinkConfiguration">

<xs:complexType>
<xs:attributeGroup ref="attlist.SampleConfigurationParameters"/>
</xs:complexType>
</xs:element>

element LocalPrecipitation

diagram

type

extension of FullyExtensibleSMALElementType

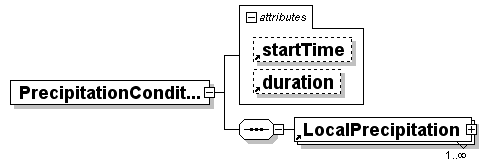

PrecipitationConditionSet

attributes

Name	Type	Use	Default	Fixed	Annotation
precipitationType	precipitationTypeEnumeration
precipitationDegree	precipitationDegreeEnumeration
altitude	xs:float
visibility	nonNegativeFloat
startTime			00:00:00
duration			01:00:00

annotation

appInfo

Describes a local precipitation event with Location, GeographicExtent, type, degree, starting altitued, and associated visibility. Precipitation may change over the course of an EnvironmentalCondition, so there is a duration attribute.

source

<xs:element name="LocalPrecipitation">
<xs:annotation>
    <xs:appinfo>Describes a local precipitation event with Location, GeographicExtent, type, degree, starting altitued, and associated visibility. Precipitation may change over the course of an EnvironmentalCondition, so there is a duration attribute.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:sequence>
          <xs:element ref="GeographicExtent"/>
        </xs:sequence>
        <xs:attribute name="precipitationType" type="precipitationTypeEnumeration"/>
        <xs:attribute name="precipitationDegree" type="precipitationDegreeEnumeration"/>
        <xs:attribute name="altitude" type="xs:float"/>
        <xs:attribute name="visibility" type="nonNegativeFloat"/>
        <xs:attribute ref="startTime"/>
        <xs:attribute ref="duration"/>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

attribute LocalPrecipitation/@precipitationType

type

precipitationTypeEnumeration

properties

isRef

facets

enumeration	RAIN
enumeration	SNOW
enumeration	SLEET
enumeration	HAIL

source

<xs:attribute name="precipitationType" type="precipitationTypeEnumeration"/>

attribute LocalPrecipitation/@precipitationDegree

type

precipitationDegreeEnumeration

properties

isRef

facets

enumeration	HEAVY
enumeration	LIGHT

source

<xs:attribute name="precipitationDegree" type="precipitationDegreeEnumeration"/>

attribute LocalPrecipitation/@altitude

<xs:attribute name="altitude" type="xs:float"/>

attribute LocalPrecipitation/@visibility

<xs:attribute name="visibility" type="nonNegativeFloat"/>

LocationOrientation TerrainTile

annotation

appInfo

Abstract placeholder for specific locator element.

source

<xs:element name="Location" abstract="true">
<xs:annotation>
<xs:appinfo>Abstract placeholder for specific locator element.</xs:appinfo>
</xs:annotation>
</xs:element>

element LocationOrientation

diagram

type

extension of FullyExtensibleSMALElementType

Location Orientation DirectionOfMotion

used by

elements

CloudLayer CurrentConditionParameters StaticModelDefinition

annotation

appInfo

Contains data on position, orientation, and (optionally) direction of motion for the object it is describing.

source

<xs:element name="LocationOrientation">
<xs:annotation>
    <xs:appinfo>Contains data on position, orientation, and (optionally) direction of motion for the object it is describing.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:sequence>
          <xs:element ref="Location"/>
          <xs:element ref="Orientation"/>
          <xs:element ref="DirectionOfMotion" minOccurs="0"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

element MapCoordinate

element	PointRadiusCircular
complexType	BoundingPolygonType

annotation

appInfo

Abstract placeholder for coordinate-reference-system-specific location value element.

source

<xs:element name="MapCoordinate" abstract="true">
<xs:annotation>
<xs:appinfo>Abstract placeholder for coordinate-reference-system-specific location value element.</xs:appinfo>
</xs:annotation>
</xs:element>

element meta

diagram

properties

content	complex
mixed	false

Name	Type	Use	Default	Fixed	Annotation
name	xs:string	required
content	xs:string	required
http-equiv	xs:string
lang	xs:string

source

<xs:element name="meta">
<xs:annotation>
    <xs:appinfo/>
    <xs:appinfo source="http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd"/>
</xs:annotation>
<xs:complexType mixed="false">
    <xs:attribute name="name" type="xs:string" use="required"/>
    <xs:attribute name="content" type="xs:string" use="required"/>
    <xs:attribute name="http-equiv" type="xs:string"/>
    <xs:attribute name="lang" type="xs:string"/>
</xs:complexType>
</xs:element>

isRef	0
use	required

source

<xs:attribute name="name" type="xs:string" use="required"/>

attribute meta/@content

type

xs:string

properties

isRef	0
use	required

source

<xs:attribute name="content" type="xs:string" use="required"/>

attribute meta/@http-equiv

<xs:attribute name="http-equiv" type="xs:string"/>

<xs:attribute name="lang" type="xs:string"/>

element MgrsCoordinate

diagram

type

extension of AttributeExtensibleSMALElementType

properties

content	complex
substGrp	MapCoordinate

attributes

Name	Type	Use	Default	Fixed	Annotation
coordinate	mgrsCoordinatePattern

annotation

appInfo

Military Grid Reference System coordinate location value element.

source

<xs:element name="MgrsCoordinate" substitutionGroup="MapCoordinate">
<xs:annotation>
    <xs:appinfo>Military Grid Reference System coordinate location value element.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="AttributeExtensibleSMALElementType">
        <xs:attribute name="coordinate" type="mgrsCoordinatePattern"/>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

attribute MgrsCoordinate/@coordinate

type

mgrsCoordinatePattern

(([0-9]?[0-9]([A-H,J-N,P-Z])?)|([0-9]?[0-9][A-H,J-N,P-Z]([A-H,J-N,P-Z][A-H,J-N,P-Z])(([0-9][0-9]){0,5})))

source

<xs:attribute name="coordinate" type="mgrsCoordinatePattern"/>

element NetworkChannel

diagram

type

extension of FullyExtensibleSMALElementType

Name	Type	Use	Default	Fixed	Annotation
enabled	xs:boolean	optional	true
address	ipAddressPattern	optional	127.0.0.1
port	xs:nonNegativeInteger	optional	62040
multicastRelayHost	ipAddressPattern	optional	127.0.0.1
multicastRelayPort	xs:nonNegativeInteger	optional	62040
rtpHeaderExpected	xs:boolean		false
siteID	xs:nonNegativeInteger	optional
applicationID	xs:nonNegativeInteger	optional

annotation

appInfo

Contains all data necessary to define the multicast port address, simulation, and local computer ID. A single Simulation has only one network channel.

documentation

See X3D Specification Part I 28.2.3

source

attribute NetworkChannel/@enabled

type

xs:boolean

properties

isRef	0
default	true
use	optional

source

<xs:attribute name="enabled" type="xs:boolean" use="optional" default="true"/>

attribute NetworkChannel/@address

type

ipAddressPattern

properties

isRef	0
default	127.0.0.1
use	optional

facets

pattern

(([0-1]?[0-9]?[0-9]|2[0-4][0-9])|25[0-5])((.(([0-1]?[0-9]?[0-9]|2[0-4][0-9])|25[0-5])){3})

source

<xs:attribute name="address" type="ipAddressPattern" use="optional" default="127.0.0.1"/>

attribute NetworkChannel/@port

type

xs:nonNegativeInteger

properties

isRef	0
default	62040
use	optional

source

<xs:attribute name="port" type="xs:nonNegativeInteger" use="optional" default="62040"/>

attribute NetworkChannel/@multicastRelayHost

type

ipAddressPattern

properties

isRef	0
default	127.0.0.1
use	optional

facets

pattern

(([0-1]?[0-9]?[0-9]|2[0-4][0-9])|25[0-5])((.(([0-1]?[0-9]?[0-9]|2[0-4][0-9])|25[0-5])){3})

source

<xs:attribute name="multicastRelayHost" type="ipAddressPattern" use="optional" default="127.0.0.1"/>

attribute NetworkChannel/@multicastRelayPort

type

xs:nonNegativeInteger

properties

isRef	0
default	62040
use	optional

source

<xs:attribute name="multicastRelayPort" type="xs:nonNegativeInteger" use="optional" default="62040"/>

attribute NetworkChannel/@rtpHeaderExpected

type

xs:boolean

properties

isRef	0
default	false

source

<xs:attribute name="rtpHeaderExpected" type="xs:boolean" default="false"/>

attribute NetworkChannel/@siteID

type

xs:nonNegativeInteger

properties

isRef	0
use	optional

source

<xs:attribute name="siteID" type="xs:nonNegativeInteger" use="optional"/>

attribute NetworkChannel/@applicationID

type

xs:nonNegativeInteger

properties

isRef	0
use	optional

source

<xs:attribute name="applicationID" type="xs:nonNegativeInteger" use="optional"/>

element NetworkedCommunicationParameterSet

diagram

type

extension of FullyExtensibleSMALElementType

DisConfiguration LinkConfiguration HlaConfiguration

Entity-specific network communication parameters for use in message
construction. Parameters common to all entities are held in the ancestor
NetworkChannel element. The protocol-specific tags will eventually be replaced by
namespace references.

source

<xs:element name="NetworkedCommunicationParameterSet">
<xs:annotation>
    <xs:appinfo>Entity-specific network communication parameters for use in message
construction. Parameters common to all entities are held in the ancestor
NetworkChannel element. The protocol-specific tags will eventually be replaced by
namespace references.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:sequence>
          <xs:element ref="DisConfiguration" minOccurs="0"/>
          <xs:element ref="LinkConfiguration" minOccurs="0"/>
          <xs:element ref="HlaConfiguration" minOccurs="0"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

element	TerrainTile
complexType	ObjectDefinitionType

source

<xs:element name="ObjectModel" abstract="true"/>

AttachmentPoint LocationOrientation

source

<xs:element name="Orientation" abstract="true">
<xs:annotation>
<xs:appinfo/>
</xs:annotation>
</xs:element>

element OverlayImageDescriptor

Abstract placeholder for specific overlay elements in an OverlaySet element.

source

<xs:element name="OverlayImageDescriptor" abstract="true">
<xs:annotation>
<xs:appinfo>Abstract placeholder for specific overlay elements in an OverlaySet element.</xs:appinfo>
</xs:annotation>
</xs:element>

element OverlaySet

diagram

type

extension of FullyExtensibleSMALElementType

Classification OverlayImageDescriptor

Collects all imagery overlays associated with a TerrainTile.

source

<xs:element name="OverlaySet">
<xs:annotation>
    <xs:appinfo>Collects all imagery overlays associated with a TerrainTile.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:sequence>
          <xs:element ref="Classification"/>
          <xs:element ref="OverlayImageDescriptor" minOccurs="0" maxOccurs="unbounded"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

element OverlaySetChart

diagram

type

OverlayImageDescriptorType

properties

content	complex
substGrp	OverlayImageDescriptor

children

Classification

attributes

Name	Type	Use	Default	Fixed	Annotation
fileLocationURL	xs:anyURI		http://www.web3d.org/x3d/content/examples/
centerPointLatitude	latitudeOrdinatePattern	optional	N00 00.0
centerPointLongitude	longitudeOrdinatePattern	optional	W00 00.0
northBoundLatitude	latitudeOrdinatePattern	optional	N00 00.0
southBoundLatitude	latitudeOrdinatePattern	optional	N00 00.0
westBoundLongitude	longitudeOrdinatePattern	optional	W00 00.0
eastBoundLongitude	longitudeOrdinatePattern	optional	W00 00.0

annotation

appInfo

A chart image used as a TerrainTile overlay.

source

<xs:element name="OverlaySetChart" type="OverlayImageDescriptorType" substitutionGroup="OverlayImageDescriptor">
<xs:annotation>
<xs:appinfo>A chart image used as a TerrainTile overlay.</xs:appinfo>
</xs:annotation>
</xs:element>

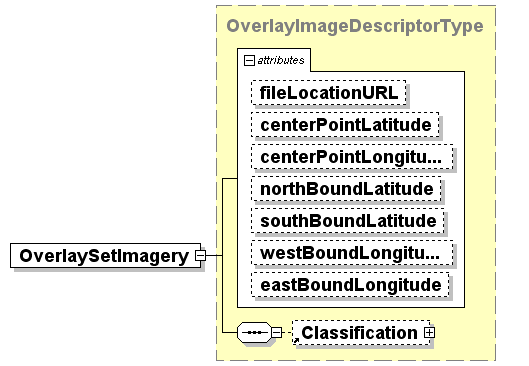

element OverlaySetImagery

diagram

type

OverlayImageDescriptorType

properties

content	complex
substGrp	OverlayImageDescriptor

children

Classification

attributes

Name	Type	Use	Default	Fixed	Annotation
fileLocationURL	xs:anyURI		http://www.web3d.org/x3d/content/examples/
centerPointLatitude	latitudeOrdinatePattern	optional	N00 00.0
centerPointLongitude	longitudeOrdinatePattern	optional	W00 00.0
northBoundLatitude	latitudeOrdinatePattern	optional	N00 00.0
southBoundLatitude	latitudeOrdinatePattern	optional	N00 00.0
westBoundLongitude	longitudeOrdinatePattern	optional	W00 00.0
eastBoundLongitude	longitudeOrdinatePattern	optional	W00 00.0

annotation

appInfo

A satellite image or graphic used as a TerrainTile overlay.

source

<xs:element name="OverlaySetImagery" type="OverlayImageDescriptorType" substitutionGroup="OverlayImageDescriptor">
<xs:annotation>
<xs:appinfo>A satellite image or graphic used as a TerrainTile overlay.</xs:appinfo>
</xs:annotation>
</xs:element>

element OverlaySetMap

diagram

type

OverlayImageDescriptorType

properties

content	complex
substGrp	OverlayImageDescriptor

children

Classification

attributes

Name	Type	Use	Default	Fixed	Annotation
fileLocationURL	xs:anyURI		http://www.web3d.org/x3d/content/examples/
centerPointLatitude	latitudeOrdinatePattern	optional	N00 00.0
centerPointLongitude	longitudeOrdinatePattern	optional	W00 00.0
northBoundLatitude	latitudeOrdinatePattern	optional	N00 00.0
southBoundLatitude	latitudeOrdinatePattern	optional	N00 00.0
westBoundLongitude	longitudeOrdinatePattern	optional	W00 00.0
eastBoundLongitude	longitudeOrdinatePattern	optional	W00 00.0

annotation

appInfo

A map image used as a TerrainTile overlay.

source

<xs:element name="OverlaySetMap" type="OverlayImageDescriptorType" substitutionGroup="OverlayImageDescriptor">
<xs:annotation>
<xs:appinfo>A map image used as a TerrainTile overlay.</xs:appinfo>
</xs:annotation>
</xs:element>

element Parameter

diagram

type

extension of FullyExtensibleSMALElementType

Name	Type	Use	Default	Fixed	Annotation
name	xs:NMTOKEN	required
value	xs:string	required

source

<xs:element name="Parameter">
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:attribute name="name" type="xs:NMTOKEN" use="required"/>
        <xs:attribute name="value" type="xs:string" use="required"/>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

attribute Parameter/@name

type

xs:NMTOKEN

properties

isRef	0
use	required

source

<xs:attribute name="name" type="xs:NMTOKEN" use="required"/>

attribute Parameter/@value

type

xs:string

properties

isRef	0
use	required

source

<xs:attribute name="value" type="xs:string" use="required"/>

element PhysicalConstraints

diagram

type

extension of FullyExtensibleSMALElementType

Name	Type	Use	Default	Fixed	Annotation
unitSystem			Metric
height	xs:float
width	xs:float
length	xs:float
grossWeight	xs:float
draft	xs:float	optional
trackWidth	xs:float	optional
wheelbase	xs:float	optional

annotation

appInfo

Physics modeling data for collision detection and physics engine use. NOTE: AVCL parameters can be included optionally here.

source

attribute PhysicalConstraints/@height

<xs:attribute name="height" type="xs:float"/>

attribute PhysicalConstraints/@width

<xs:attribute name="width" type="xs:float"/>

attribute PhysicalConstraints/@length

<xs:attribute name="length" type="xs:float"/>

attribute PhysicalConstraints/@grossWeight

<xs:attribute name="grossWeight" type="xs:float"/>

attribute PhysicalConstraints/@draft

type

xs:float

properties

isRef	0
use	optional

source

<xs:attribute name="draft" type="xs:float" use="optional"/>

attribute PhysicalConstraints/@trackWidth

type

xs:float

properties

isRef	0
use	optional

source

<xs:attribute name="trackWidth" type="xs:float" use="optional"/>

attribute PhysicalConstraints/@wheelbase

type

xs:float

properties

isRef	0
use	optional

source

<xs:attribute name="wheelbase" type="xs:float" use="optional"/>

element PhysicalParameters

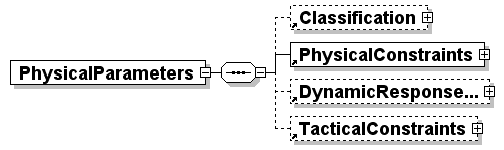

diagram

type

extension of FullyExtensibleSMALElementType

Classification PhysicalConstraints DynamicResponseConstraints TacticalConstraints

Contains all parameters which are dependent on the physical characteristics and performance of the model.

source

<xs:element name="PhysicalParameters">
<xs:annotation>
    <xs:appinfo>Contains all parameters which are dependent on the physical characteristics and performance of the model.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:sequence>
          <xs:element ref="Classification" minOccurs="0"/>
          <xs:element ref="PhysicalConstraints"/>
          <xs:element ref="DynamicResponseConstraints" minOccurs="0"/>
          <xs:element ref="TacticalConstraints" minOccurs="0"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

element PointRadiusCircular

diagram

type

extension of FullyExtensibleSMALElementType

Name	Type	Use	Default	Fixed	Annotation
unitSystem			Metric
radius	nonNegativeFloat	required

annotation

appInfo

A shape descriptor used to specify circular shapes in BoundingPolygonType elements.

source

<xs:element name="PointRadiusCircular">
<xs:annotation>
    <xs:appinfo>A shape descriptor used to specify circular shapes in BoundingPolygonType elements.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:sequence>
          <xs:element ref="MapCoordinate"/>
        </xs:sequence>
        <xs:attribute ref="unitSystem"/>
        <xs:attribute name="radius" type="nonNegativeFloat" use="required"/>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

attribute PointRadiusCircular/@radius

type

nonNegativeFloat

properties

isRef	0
use	required

<xs:attribute name="radius" type="nonNegativeFloat" use="required"/>

element PrecipitationConditionSet

diagram

type

extension of FullyExtensibleSMALElementType

EnvironmentalCondition

attributes

Name	Type	Use	Default	Fixed	Annotation
startTime			00:00:00
duration			01:00:00

annotation

appInfo

Collects the precipitation elements for a single EnvironmentalCondition element.

source

<xs:element name="PrecipitationConditionSet">
<xs:annotation>
    <xs:appinfo>Collects the precipitation elements for a single EnvironmentalCondition element.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:sequence>
          <xs:element ref="LocalPrecipitation" maxOccurs="unbounded"/>
        </xs:sequence>
        <xs:attribute ref="startTime"/>
        <xs:attribute ref="duration"/>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

element QuaternionDirection

content	complex
substGrp	DirectionOfMotion

attributes

Name	Type	Use	Default	Fixed	Annotation
unitSystem			Metric
xValue	unitValueFloat		0
yValue	unitValueFloat		0
zValue	unitValueFloat		0
wValue	nonNegativeFloat		0

source

<xs:element name="QuaternionDirection" type="QuaternionType" substitutionGroup="DirectionOfMotion"/>

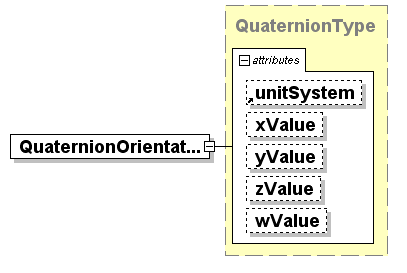

element QuaternionOrientation

content	complex
substGrp	Orientation

attributes

Name	Type	Use	Default	Fixed	Annotation
unitSystem			Metric
xValue	unitValueFloat		0
yValue	unitValueFloat		0
zValue	unitValueFloat		0
wValue	nonNegativeFloat		0

annotation

appInfo

A set of four values based on the current reference coordinate axes.
Use fractional values -1 to 1 for the first three numbers and a radian value for the
fourth.

source

<xs:element name="QuaternionOrientation" type="QuaternionType" substitutionGroup="Orientation">
<xs:annotation>
<xs:appinfo>A set of four values based on the current reference coordinate axes.
Use fractional values -1 to 1 for the first three numbers and a radian value for the
fourth.</xs:appinfo>
</xs:annotation>
</xs:element>

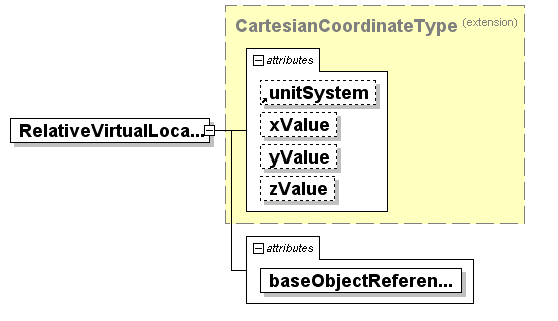

element RelativeVirtualLocation

diagram

type

extension of CartesianCoordinateType

properties

content	complex
substGrp	Location

attributes

Name	Type	Use	Default	Fixed	Annotation
unitSystem			Metric
xValue	xs:float		0
yValue	xs:float		0
zValue	xs:float		0
baseObjectReference	xs:IDREF	required

annotation

appInfo

Object-reference based location element used when there is no specific attachment point specified on that object. The @baseLocationObject IDREF value is used to reference the @entityIdentifier ID value of an EntityDefinition element.

source

<xs:element name="RelativeVirtualLocation" substitutionGroup="Location">
<xs:annotation>
    <xs:appinfo>Object-reference based location element used when there is no specific attachment point specified on that object. The @baseLocationObject IDREF value is used to reference the @entityIdentifier ID value of an EntityDefinition element.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="CartesianCoordinateType">
        <xs:attribute name="baseObjectReference" type="xs:IDREF" use="required"/>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

attribute RelativeVirtualLocation/@baseObjectReference

type

xs:IDREF

properties

isRef	0
use	required

source

<xs:attribute name="baseObjectReference" type="xs:IDREF" use="required"/>

element SeaState

diagram

type

extension of FullyExtensibleSMALElementType

Name	Type	Use	Default	Fixed	Annotation
beaufortScaleEquivalent	xs:nonNegativeInteger	optional
waveHeight	nonNegativeFloat	optional
wavePeriod	nonNegativeFloat	optional
waveLength	nonNegativeFloat	optional
crest	xs:NMTOKEN	optional

annotation

appInfo

Describes water surface conditions to optionally include the Beaufort Scale equivalent condition for winds and wave action, and/or specific wave conditions such as crest conditions and wave height, length, and period. Sea state is considered persistent and for a given EnvironmentCondition so there is no duration attribute.

source

<xs:element name="SeaState">
<xs:annotation>
    <xs:appinfo>Describes water surface conditions to optionally include the Beaufort Scale equivalent condition for winds and wave action, and/or specific wave conditions such as crest conditions and wave height, length, and period. Sea state is considered persistent and for a given EnvironmentCondition so there is no duration attribute.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:attribute name="beaufortScaleEquivalent" type="xs:nonNegativeInteger" use="optional"/>
        <xs:attribute name="waveHeight" type="nonNegativeFloat" use="optional"/>
        <xs:attribute name="wavePeriod" type="nonNegativeFloat" use="optional"/>
        <xs:attribute name="waveLength" type="nonNegativeFloat" use="optional"/>
        <xs:attribute name="crest" type="xs:NMTOKEN" use="optional"/>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

attribute SeaState/@beaufortScaleEquivalent

type

xs:nonNegativeInteger

properties

isRef	0
use	optional

source

<xs:attribute name="beaufortScaleEquivalent" type="xs:nonNegativeInteger" use="optional"/>

attribute SeaState/@waveHeight

type

nonNegativeFloat

properties

isRef	0
use	optional

<xs:attribute name="waveHeight" type="nonNegativeFloat" use="optional"/>

attribute SeaState/@wavePeriod

type

nonNegativeFloat

properties

isRef	0
use	optional

<xs:attribute name="wavePeriod" type="nonNegativeFloat" use="optional"/>

attribute SeaState/@waveLength

type

nonNegativeFloat

properties

isRef	0
use	optional

<xs:attribute name="waveLength" type="nonNegativeFloat" use="optional"/>

attribute SeaState/@crest

type

xs:NMTOKEN

properties

isRef	0
use	optional

source

<xs:attribute name="crest" type="xs:NMTOKEN" use="optional"/>

element Simulation

diagram

type

extension of FullyExtensibleSMALElementType

Classification NetworkChannel World EntitySet EnvironmentalConditionSet AssociationSet

Name	Type	Use	Default	Fixed	Annotation
simulationIdentifier	xs:ID	optional

annotation

appInfo

Top level tag for a single simulation. Allows multiple simulations to be run separately, but at the same time under the root SMAL tag.

source

<xs:element name="Simulation">
<xs:annotation>
    <xs:appinfo>Top level tag for a single simulation. Allows multiple simulations to be run separately, but at the same time under the root SMAL tag.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:sequence>
          <xs:element ref="Classification" minOccurs="0"/>
          <xs:element ref="NetworkChannel"/>
          <xs:element ref="World"/>
          <xs:element ref="EntitySet" maxOccurs="unbounded"/>
          <xs:element ref="EnvironmentalConditionSet" minOccurs="0" maxOccurs="unbounded"/>
          <xs:element ref="AssociationSet" minOccurs="0" maxOccurs="unbounded"/>
        </xs:sequence>
        <xs:attribute name="simulationIdentifier" type="xs:ID" use="optional"/>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

attribute Simulation/@simulationIdentifier

type

xs:ID

properties

isRef	0
use	optional

source

<xs:attribute name="simulationIdentifier" type="xs:ID" use="optional"/>

element SimulationAgent

diagram

type

extension of FullyExtensibleSMALElementType

simulationAgentIdentifier

xs:ID

optional

agent

simulationEngineEnumeration

The filename or other identifier for the agent to be
attached to this entity.

annotation

appInfo

Agent-specific information required to run the simulation. Includes
behavioral probability parameters and similar information not specifically
enumerated in the tactical or dynamic response constraints.

source

<xs:element name="SimulationAgent">
<xs:annotation>
    <xs:appinfo>Agent-specific information required to run the simulation. Includes
behavioral probability parameters and similar information not specifically
enumerated in the tactical or dynamic response constraints.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:annotation>
      <xs:appinfo>The entity name should be found in the parent
EntityDefinition/@entityIdentifier attribute.</xs:appinfo>
    </xs:annotation>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:sequence>
          <xs:element ref="Parameter" minOccurs="0" maxOccurs="unbounded"/>
        </xs:sequence>
        <xs:attribute name="simulationAgentIdentifier" type="xs:ID" use="optional"/>
        <xs:attribute name="agent" type="simulationEngineEnumeration" use="required"/>
        <xs:attribute name="type" type="xs:anyURI" use="required">
          <xs:annotation>
            <xs:appinfo>The filename or other identifier for the agent to be
attached to this entity.</xs:appinfo>
          </xs:annotation>
        </xs:attribute>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

attribute SimulationAgent/@simulationAgentIdentifier

type

xs:ID

properties

isRef	0
use	optional

source

<xs:attribute name="simulationAgentIdentifier" type="xs:ID" use="optional"/>

attribute SimulationAgent/@agent

type

simulationEngineEnumeration

properties

isRef	0
use	required

facets

enumeration	Simkit
enumeration	Viskit
enumeration	HilesMultiAgent
enumeration	Other

source

<xs:attribute name="agent" type="simulationEngineEnumeration" use="required"/>

attribute SimulationAgent/@type

type

xs:anyURI

properties

isRef	0
use	required

annotation

appInfo

The filename or other identifier for the agent to be
attached to this entity.

source

<xs:attribute name="type" type="xs:anyURI" use="required">
<xs:annotation>
<xs:appinfo>The filename or other identifier for the agent to be
attached to this entity.</xs:appinfo>
</xs:annotation>
</xs:attribute>

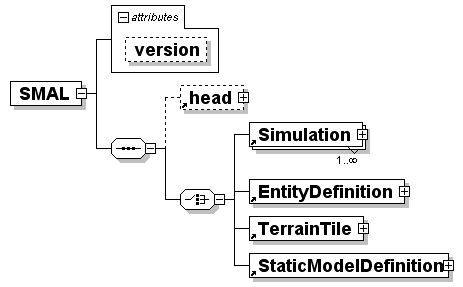

element SMAL

diagram

type

extension of FullyExtensibleSMALElementType

head Simulation EntityDefinition TerrainTile StaticModelDefinition

attributes

Name	Type	Use	Default	Fixed	Annotation
version	xs:string			1.0

annotation

appInfo

SAVAGE Model Analysis Language: collects data necessary to create a 3D scene out of disparate elements

source

<xs:element name="SMAL">
<xs:annotation>
    <xs:appinfo>SAVAGE Model Analysis Language: collects data necessary to create a 3D scene out of disparate elements</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:sequence>
          <xs:element ref="head" minOccurs="0"/>
          <xs:choice>
            <xs:annotation>
              <xs:appinfo>A SMAL file will contain either a full-fledged Simulation or a partial/default metadata corresponding to a simulation component file such as an entity, static model, or terrain tile.</xs:appinfo>
            </xs:annotation>
            <xs:element ref="Simulation" maxOccurs="unbounded"/>
            <xs:element ref="EntityDefinition"/>
            <xs:element ref="TerrainTile"/>
            <xs:element ref="StaticModelDefinition"/>
          </xs:choice>
        </xs:sequence>
        <xs:attribute name="version" type="xs:string" fixed="1.0"/>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

attribute SMAL/@version

type

xs:string

properties

isRef	0
fixed	1.0

source

<xs:attribute name="version" type="xs:string" fixed="1.0"/>

element StaticModelDefinition

diagram

type

extension of ObjectDefinitionType

Classification IdentificationParameters ObjectModel PhysicalParameters LocationOrientation

Name	Type	Use	Default	Fixed	Annotation
staticModelIdentifier	xs:ID

annotation

appInfo

Defines a single static model.

source

<xs:element name="StaticModelDefinition">
<xs:annotation>
    <xs:appinfo>Defines a single static model.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="ObjectDefinitionType">
        <xs:sequence>
          <xs:element ref="LocationOrientation"/>
        </xs:sequence>
        <xs:attribute name="staticModelIdentifier" type="xs:ID"/>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

attribute StaticModelDefinition/@staticModelIdentifier

<xs:attribute name="staticModelIdentifier" type="xs:ID"/>

element StaticModelSet

diagram

type

extension of FullyExtensibleSMALElementType

StaticModelDefinition

These models are not entities, but rather unchanging objects in the X3D scene: buildings, signs, roads, bridges, etc.

source

<xs:element name="StaticModelSet">
<xs:annotation>
    <xs:appinfo>These models are not entities, but rather unchanging objects in the X3D scene: buildings, signs, roads, bridges, etc.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:sequence>
          <xs:element ref="StaticModelDefinition" maxOccurs="unbounded"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

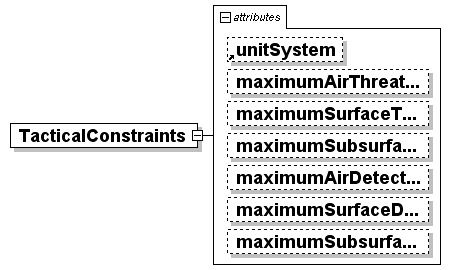

element TacticalConstraints

diagram

type

extension of FullyExtensibleSMALElementType

Name	Type	Use	Default	Fixed	Annotation
unitSystem			Metric
maximumAirThreatRange	xs:float	optional
maximumSurfaceThreatRange	xs:float	optional
maximumSubsurfaceThreatRange	xs:float	optional
maximumAirDetectionRange	xs:float	optional
maximumSurfaceDetectionRange	xs:float	optional
maximumSubsurfaceDetectionRange	xs:float	optional

annotation

appInfo

Domain-specific threat and detection ranges for attack and defense capabilities.

source

<xs:element name="TacticalConstraints">
<xs:annotation>
    <xs:appinfo>Domain-specific threat and detection ranges for attack and defense capabilities.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:attribute ref="unitSystem"/>
        <xs:attribute name="maximumAirThreatRange" type="xs:float" use="optional"/>
        <xs:attribute name="maximumSurfaceThreatRange" type="xs:float" use="optional"/>
        <xs:attribute name="maximumSubsurfaceThreatRange" type="xs:float" use="optional"/>
        <xs:attribute name="maximumAirDetectionRange" type="xs:float" use="optional"/>
        <xs:attribute name="maximumSurfaceDetectionRange" type="xs:float" use="optional"/>
        <xs:attribute name="maximumSubsurfaceDetectionRange" type="xs:float" use="optional"/>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

attribute TacticalConstraints/@maximumAirThreatRange

type

xs:float

properties

isRef	0
use	optional

source

<xs:attribute name="maximumAirThreatRange" type="xs:float" use="optional"/>

attribute TacticalConstraints/@maximumSurfaceThreatRange

type

xs:float

properties

isRef	0
use	optional

source

<xs:attribute name="maximumSurfaceThreatRange" type="xs:float" use="optional"/>

attribute TacticalConstraints/@maximumSubsurfaceThreatRange

type

xs:float

properties

isRef	0
use	optional

source

<xs:attribute name="maximumSubsurfaceThreatRange" type="xs:float" use="optional"/>

attribute TacticalConstraints/@maximumAirDetectionRange

type

xs:float

properties

isRef	0
use	optional

source

<xs:attribute name="maximumAirDetectionRange" type="xs:float" use="optional"/>

attribute TacticalConstraints/@maximumSurfaceDetectionRange

type

xs:float

properties

isRef	0
use	optional

source

<xs:attribute name="maximumSurfaceDetectionRange" type="xs:float" use="optional"/>

attribute TacticalConstraints/@maximumSubsurfaceDetectionRange

type

xs:float

properties

isRef	0
use	optional

source

<xs:attribute name="maximumSubsurfaceDetectionRange" type="xs:float" use="optional"/>

element TemperatureCondition

TemperatureConditionSet

annotation

appInfo

Abstract placeholder for specific temperature elements in a TemperatureConditionSet element.

source

<xs:element name="TemperatureCondition" abstract="true">
<xs:annotation>
<xs:appinfo>Abstract placeholder for specific temperature elements in a TemperatureConditionSet element.</xs:appinfo>
</xs:annotation>
</xs:element>

element TemperatureConditionSet

diagram

type

extension of FullyExtensibleSMALElementType

EnvironmentalCondition

attributes

Name	Type	Use	Default	Fixed	Annotation
startTime			00:00:00
duration			01:00:00

annotation

appInfo

Air and water temperatures can be established based on altitude and depth. Includes a duration attribute to allow for changes over time.

source

<xs:element name="TemperatureConditionSet">
<xs:annotation>
    <xs:appinfo>Air and water temperatures can be established based on altitude and depth. Includes a duration attribute to allow for changes over time.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:sequence>
          <xs:element ref="TemperatureCondition" maxOccurs="unbounded"/>
        </xs:sequence>
        <xs:attribute ref="startTime"/>
        <xs:attribute ref="duration"/>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

element TerrainTile

diagram

type

extension of FullyExtensibleSMALElementType

Classification GeoOrigin GeographicExtent OverlaySet ObjectModel Location

Name	Type	Use	Default	Fixed	Annotation
terrainTileIdentifier	xs:ID	optional
tileCategory	tileCategoryEnumeration		landTerrain

annotation

appInfo

A single terrain model containing size, vertical extent information, and references to the charts, maps, and/or image overlays associated with it.

source

<xs:element name="TerrainTile">
<xs:annotation>
    <xs:appinfo>A single terrain model containing size, vertical extent information, and references to the charts, maps, and/or image overlays associated with it.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:sequence>
          <xs:element ref="Classification" minOccurs="0"/>
          <xs:element ref="GeoOrigin"/>
          <xs:element ref="GeographicExtent"/>
          <xs:element ref="OverlaySet" minOccurs="0"/>
          <xs:element ref="ObjectModel"/>
          <xs:element ref="Location" minOccurs="0"/>
        </xs:sequence>
        <xs:attribute name="terrainTileIdentifier" type="xs:ID" use="optional"/>
        <xs:attribute name="tileCategory" type="tileCategoryEnumeration" default="landTerrain"/>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

attribute TerrainTile/@terrainTileIdentifier

type

xs:ID

properties

isRef	0
use	optional

source

<xs:attribute name="terrainTileIdentifier" type="xs:ID" use="optional"/>

attribute TerrainTile/@tileCategory

type

tileCategoryEnumeration

properties

isRef	0
default	landTerrain

facets

enumeration	landTerrain
enumeration	bathymetry
enumeration	planetarySurface

source

<xs:attribute name="tileCategory" type="tileCategoryEnumeration" default="landTerrain"/>

element TerrainTileSet

diagram

type

extension of ElementExtensibleSMALElementType

Contains the set of all Topography and Bathymetry models and their associated chart/imagery overlays.

source

<xs:element name="TerrainTileSet">
<xs:annotation>
    <xs:appinfo>Contains the set of all Topography and Bathymetry models and their associated chart/imagery overlays.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="ElementExtensibleSMALElementType">
        <xs:sequence>
          <xs:element ref="TerrainTile" maxOccurs="unbounded"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

element TimeParameters

diagram

type

extension of FullyExtensibleSMALElementType

EnvironmentalConditionSet

attributes

Name	Type	Use	Default	Fixed	Annotation
startTime		optional	00:00:00
day	dayType	optional	1
month	monthType	optional	1
timeZone	xs:int	optional	-7
duration		optional	01:00:00

annotation

appInfo

Holds temporal data about the scenario such as start time, time of year, time zone, and duration of the simulation.

source

<xs:element name="TimeParameters">
<xs:annotation>
    <xs:appinfo>Holds temporal data about the scenario such as start time, time of year, time zone, and duration of the simulation.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:attribute ref="startTime" use="optional"/>
        <xs:attribute name="day" type="dayType" use="optional" default="1"/>
        <xs:attribute name="month" type="monthType" use="optional" default="1"/>
        <xs:attribute name="timeZone" type="xs:int" use="optional" default="-7"/>
        <xs:attribute ref="duration" use="optional"/>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

attribute TimeParameters/@day

type

dayType

properties

isRef	0
default	1
use	optional

facets

minInclusive	1
maxInclusive	31

source

<xs:attribute name="day" type="dayType" use="optional" default="1"/>

attribute TimeParameters/@month

type

monthType

properties

isRef	0
default	1
use	optional

facets

minInclusive	1
maxInclusive	12

source

<xs:attribute name="month" type="monthType" use="optional" default="1"/>

attribute TimeParameters/@timeZone

type

xs:int

properties

isRef	0
default	-7
use	optional

source

<xs:attribute name="timeZone" type="xs:int" use="optional" default="-7"/>

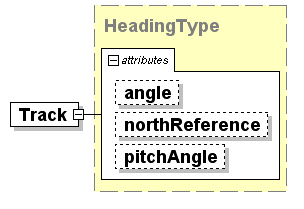

content	complex
substGrp	DirectionOfMotion

attributes

Name	Type	Use	Default	Fixed	Annotation
angle	xs:float		0
northReference	northReferenceEnumeration		MAGNETIC
pitchAngle	xs:float		0

annotation

appInfo

The current direction of travel of this object.

source

<xs:element name="Track" type="HeadingType" substitutionGroup="DirectionOfMotion">
<xs:annotation>
<xs:appinfo>The current direction of travel of this object.</xs:appinfo>
</xs:annotation>
</xs:element>

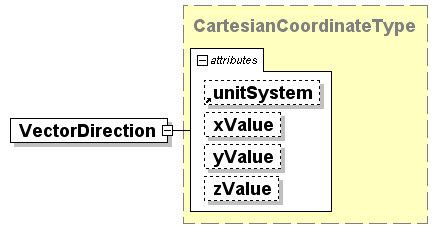

element VectorDirection

diagram

type

CartesianCoordinateType

properties

content	complex
substGrp	DirectionOfMotion

attributes

Name	Type	Use	Default	Fixed	Annotation
unitSystem			Metric
xValue	xs:float		0
yValue	xs:float		0
zValue	xs:float		0

source

<xs:element name="VectorDirection" type="CartesianCoordinateType" substitutionGroup="DirectionOfMotion"/>

element WaterConditionSet

diagram

type

extension of FullyExtensibleSMALElementType

SeaState WaterCurrentConditionAtDepth

used by

element

EnvironmentalCondition

attributes

Name	Type	Use	Default	Fixed	Annotation
startTime			00:00:00
duration			01:00:00

annotation

appInfo

Collects the sea state and all water current condition elements for a single EnvironmentalCondition element. Currents may change over the course of a single EnvironmentCondition, so there is a duration attribute.

source

<xs:element name="WaterConditionSet">
<xs:annotation>
    <xs:appinfo>Collects the sea state and all water current condition elements for a single EnvironmentalCondition element. Currents may change over the course of a single EnvironmentCondition, so there is a duration attribute.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:sequence>
          <xs:element ref="SeaState"/>
          <xs:element ref="WaterCurrentConditionAtDepth" maxOccurs="unbounded"/>
        </xs:sequence>
        <xs:attribute ref="startTime"/>
        <xs:attribute ref="duration"/>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

element WaterCurrentConditionAtDepth

diagram

type

extension of SpeedDirectionType

Name	Type	Use	Default	Fixed	Annotation
speed	nonNegativeFloat	required
direction	degreeType	required
depth	nonNegativeFloat	required
visibility	nonNegativeFloat	optional	0.0
salinity	nonNegativeFloat	optional	0.0

annotation

appInfo

Water currents are defined by depth, speed, and direction. Additional data for salinity and visibility are included. The value for depth represents the shallowest depth at which this condition exists. Water currents, salinity, and visibility by depth are considered persistent over the course of an EnvironmentalCondition. Changes can be made by using multiple WaterCurrentConditionSets.

source

<xs:element name="WaterCurrentConditionAtDepth">
<xs:annotation>
    <xs:appinfo>Water currents are defined by depth, speed, and direction. Additional data for salinity and visibility are included. The value for depth represents the shallowest depth at which this condition exists. Water currents, salinity, and visibility by depth are considered persistent over the course of an EnvironmentalCondition. Changes can be made by using multiple WaterCurrentConditionSets.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="SpeedDirectionType">
        <xs:attribute name="depth" type="nonNegativeFloat" use="required"/>
        <xs:attribute name="visibility" type="nonNegativeFloat" use="optional" default="0.0"/>
        <xs:attribute name="salinity" type="nonNegativeFloat" use="optional" default="0.0"/>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

attribute WaterCurrentConditionAtDepth/@depth

type

nonNegativeFloat

properties

isRef	0
use	required

<xs:attribute name="depth" type="nonNegativeFloat" use="required"/>

attribute WaterCurrentConditionAtDepth/@visibility

type

nonNegativeFloat

properties

isRef	0
default	0.0
use	optional

<xs:attribute name="visibility" type="nonNegativeFloat" use="optional" default="0.0"/>

attribute WaterCurrentConditionAtDepth/@salinity

type

nonNegativeFloat

properties

isRef	0
default	0.0
use	optional

<xs:attribute name="salinity" type="nonNegativeFloat" use="optional" default="0.0"/>

element WaterTemperatureCondition

diagram

type

extension of TemperatureConditionType

properties

content	complex
substGrp	TemperatureCondition

attributes

Name	Type	Use	Default	Fixed	Annotation
degrees	xs:float		15
isothermal	xs:boolean		false
depth	nonNegativeFloat		0

annotation

appInfo

Holds the water temperature and the depth at which this temperature occurs. Temperature is assumed to decrease as depth increases unless isothermal is set to true.

source

<xs:element name="WaterTemperatureCondition" substitutionGroup="TemperatureCondition">
<xs:annotation>
    <xs:appinfo>Holds the water temperature and the depth at which this temperature occurs. Temperature is assumed to decrease as depth increases unless isothermal is set to true.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="TemperatureConditionType">
        <xs:attribute name="depth" type="nonNegativeFloat" default="0"/>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

attribute WaterTemperatureCondition/@depth

type

nonNegativeFloat

properties

isRef	0
default	0

<xs:attribute name="depth" type="nonNegativeFloat" default="0"/>

element WindConditionAtLevel

diagram

type

extension of SpeedDirectionType

Name	Type	Use	Default	Fixed	Annotation
speed	nonNegativeFloat	required
direction	degreeType	required
altitude	nonNegativeFloat	required
gustSpeed	nonNegativeFloat	optional	0.0

annotation

appInfo

Winds are defined by altitude, speed, maximum gust speed, and direction. The value for altitude represents the lowest altitude at which this condition exists. Wind conditions at a given altitude are considered persistent over the course of an EnvironmentCondition. Changes are made using multiple WindConditionSets.

source

<xs:element name="WindConditionAtLevel">
<xs:annotation>
    <xs:appinfo>Winds are defined by altitude, speed, maximum gust speed, and direction. The value for altitude represents the lowest altitude at which this condition exists. Wind conditions at a given altitude are considered persistent over the course of an EnvironmentCondition. Changes are made using multiple WindConditionSets.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="SpeedDirectionType">
        <xs:attribute name="altitude" type="nonNegativeFloat" use="required"/>
        <xs:attribute name="gustSpeed" type="nonNegativeFloat" use="optional" default="0.0"/>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

attribute WindConditionAtLevel/@altitude

type

nonNegativeFloat

properties

isRef	0
use	required

<xs:attribute name="altitude" type="nonNegativeFloat" use="required"/>

attribute WindConditionAtLevel/@gustSpeed

type

nonNegativeFloat

properties

isRef	0
default	0.0
use	optional

<xs:attribute name="gustSpeed" type="nonNegativeFloat" use="optional" default="0.0"/>

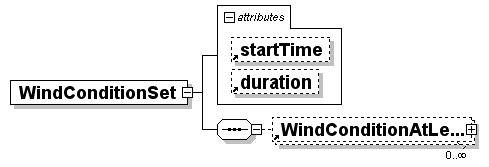

element WindConditionSet

diagram

type

extension of FullyExtensibleSMALElementType

EnvironmentalCondition

attributes

Name	Type	Use	Default	Fixed	Annotation
startTime			00:00:00
duration			01:00:00

source

<xs:element name="WindConditionSet">
<xs:complexType>
    <xs:annotation>
      <xs:appinfo>Collects all wind condition elements for a single EnvironmentalCondition element.</xs:appinfo>
    </xs:annotation>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:sequence>
          <xs:element ref="WindConditionAtLevel" minOccurs="0" maxOccurs="unbounded"/>
        </xs:sequence>
        <xs:attribute ref="startTime"/>
        <xs:attribute ref="duration"/>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

element World

diagram

type

extension of FullyExtensibleSMALElementType

GeoOrigin TerrainTileSet StaticModelSet

Defines the largely static environment in which the simulation will run. It will contain all terrain features (terrain and bathymetry), associated charts or maps, and any buildings or other significant model data which will not be tracked for movement or other actions.

source

<xs:element name="World">
<xs:annotation>
    <xs:appinfo>Defines the largely static environment in which the simulation will run. It will contain all terrain features (terrain and bathymetry), associated charts or maps, and any buildings or other significant model data which will not be tracked for movement or other actions.</xs:appinfo>
</xs:annotation>
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:sequence>
          <xs:element ref="GeoOrigin" minOccurs="0"/>
          <xs:element ref="TerrainTileSet"/>
          <xs:element ref="StaticModelSet" minOccurs="0" maxOccurs="unbounded"/>
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

element X3DArchiveModel

diagram

type

extension of FullyExtensibleSMALElementType

properties

content	complex
substGrp	ObjectModel

modelArchiveEnumeration

http://www.web3d.org/x3d/content/examples/

appInfo

Required only when using non-SAVAGE archive x3d
models.

source

<xs:element name="X3DArchiveModel" substitutionGroup="ObjectModel">
<xs:complexType>
    <xs:complexContent>
      <xs:extension base="FullyExtensibleSMALElementType">
        <xs:sequence>
          <xs:element ref="Classification" minOccurs="0"/>
        </xs:sequence>
        <xs:attribute name="archive" type="modelArchiveEnumeration" default="Savage"/>
        <xs:attribute name="section" type="xs:NMTOKEN"/>
        <xs:attribute name="chapter" type="xs:NMTOKEN"/>
        <xs:attribute name="subChapter" type="xs:NMTOKEN"/>
        <xs:attribute name="model" type="xs:NMTOKEN"/>
        <xs:attribute name="alternateBaseURL" type="xs:anyURI" default="http://www.web3d.org/x3d/content/examples/">
          <xs:annotation>
            <xs:appinfo>Required only when using non-SAVAGE archive x3d
models.</xs:appinfo>
          </xs:annotation>
        </xs:attribute>
      </xs:extension>
    </xs:complexContent>
</xs:complexType>
</xs:element>

attribute X3DArchiveModel/@archive

type

modelArchiveEnumeration

properties

isRef	0
default	Savage

facets

enumeration	Savage
enumeration	SavageDefense
enumeration	X3dExamples
enumeration	X3dConformanceNist
enumeration	Other

source

<xs:attribute name="archive" type="modelArchiveEnumeration" default="Savage"/>

attribute X3DArchiveModel/@section

<xs:attribute name="section" type="xs:NMTOKEN"/>

attribute X3DArchiveModel/@chapter

<xs:attribute name="chapter" type="xs:NMTOKEN"/>

attribute X3DArchiveModel/@subChapter

<xs:attribute name="subChapter" type="xs:NMTOKEN"/>

attribute X3DArchiveModel/@model

<xs:attribute name="model" type="xs:NMTOKEN"/>

attribute X3DArchiveModel/@alternateBaseURL

type

xs:anyURI

properties

isRef	0
default	http://www.web3d.org/x3d/content/examples/

annotation

appInfo

Required only when using non-SAVAGE archive x3d
models.

source

<xs:attribute name="alternateBaseURL" type="xs:anyURI" default="http://www.web3d.org/x3d/content/examples/">
<xs:annotation>
<xs:appinfo>Required only when using non-SAVAGE archive x3d
models.</xs:appinfo>
</xs:annotation>
</xs:attribute>

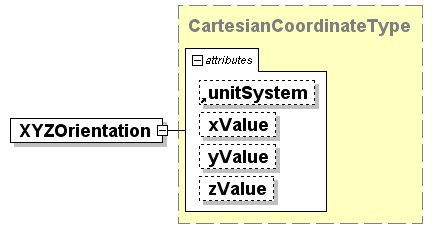

element XYZOrientation

diagram

type

CartesianCoordinateType

properties

content	complex
substGrp	Orientation

attributes

Name	Type	Use	Default	Fixed	Annotation
unitSystem			Metric
xValue	xs:float		0
yValue	xs:float		0
zValue	xs:float		0

annotation

appInfo

A simple set of orthogonal angles based on the current reference
coordinate axes. Use fractional degree measurements for the angles vice
radians.

source

<xs:element name="XYZOrientation" type="CartesianCoordinateType" substitutionGroup="Orientation">
<xs:annotation>
<xs:appinfo>A simple set of orthogonal angles based on the current reference
coordinate axes. Use fractional degree measurements for the angles vice
radians.</xs:appinfo>
</xs:annotation>
</xs:element>

complexType AttributeExtensibleSMALElementType

elements	AttachmentPointLocation LatLongCoordinate MgrsCoordinate
complexTypes	CartesianCoordinateType TemperatureConditionType

source

<xs:complexType name="AttributeExtensibleSMALElementType" abstract="true">

</xs:complexType>

complexType BoundingPolygonType

diagram

type

extension of FullyExtensibleSMALElementType

properties

base	FullyExtensibleSMALElementType

children

PointRadiusCircular MapCoordinate

Name	Type	Use	Default	Fixed	Annotation
unitSystem			Metric
area	xs:float	optional	0.0
verticalExtent	xs:float	optional	0.0

annotation

appInfo

A base complexType used to describe a two-and-a-half dimensional shape for the purposes of establishing boundaries. Description of the shape is either by defining the points of a polygon or by establishing a centerpoint and radius for a circular boundary.

source

<xs:complexType name="BoundingPolygonType">
<xs:annotation>
    <xs:appinfo>A base complexType used to describe a two-and-a-half dimensional shape for the purposes of establishing boundaries. Description of the shape is either by defining the points of a polygon or by establishing a centerpoint and radius for a circular boundary.</xs:appinfo>
</xs:annotation>
<xs:complexContent>
    <xs:extension base="FullyExtensibleSMALElementType">
      <xs:choice>
        <xs:element ref="PointRadiusCircular"/>
        <xs:element ref="MapCoordinate" minOccurs="3" maxOccurs="unbounded"/>
      </xs:choice>
      <xs:attribute ref="unitSystem"/>
      <xs:attribute name="area" type="xs:float" use="optional" default="0.0"/>
      <xs:attribute name="verticalExtent" type="xs:float" use="optional" default="0.0"/>
    </xs:extension>
</xs:complexContent>
</xs:complexType>

attribute BoundingPolygonType/@area

type

xs:float

properties

isRef	0
default	0.0
use	optional

source

<xs:attribute name="area" type="xs:float" use="optional" default="0.0"/>

attribute BoundingPolygonType/@verticalExtent

type

xs:float

properties

isRef	0
default	0.0
use	optional

source

<xs:attribute name="verticalExtent" type="xs:float" use="optional" default="0.0"/>

complexType CartesianCoordinateType

diagram

type

extension of AttributeExtensibleSMALElementType

properties

base	AttributeExtensibleSMALElementType
final	restriction

used by

elements

GlobalVirtualLocation RelativeVirtualLocation VectorDirection XYZOrientation

attributes

Name	Type	Use	Default	Fixed	Annotation
unitSystem			Metric
xValue	xs:float		0
yValue	xs:float		0
zValue	xs:float		0

annotation

appInfo

A complexType used to describe a three-value coordinate location.

source

<xs:complexType name="CartesianCoordinateType" final="restriction">
<xs:annotation>
    <xs:appinfo>A complexType used to describe a three-value coordinate location.</xs:appinfo>
</xs:annotation>
<xs:complexContent>
    <xs:extension base="AttributeExtensibleSMALElementType">
      <xs:attribute ref="unitSystem"/>
      <xs:attribute name="xValue" type="xs:float" default="0"/>
      <xs:attribute name="yValue" type="xs:float" default="0"/>
      <xs:attribute name="zValue" type="xs:float" default="0"/>
    </xs:extension>
</xs:complexContent>
</xs:complexType>

attribute CartesianCoordinateType/@xValue

type

xs:float

properties

isRef	0
default	0

source

<xs:attribute name="xValue" type="xs:float" default="0"/>

attribute CartesianCoordinateType/@yValue

type

xs:float

properties

isRef	0
default	0

source

<xs:attribute name="yValue" type="xs:float" default="0"/>

attribute CartesianCoordinateType/@zValue

type

xs:float

properties

isRef	0
default	0

source

<xs:attribute name="zValue" type="xs:float" default="0"/>

complexType ElementExtensibleSMALElementType

<xs:complexType name="ElementExtensibleSMALElementType" abstract="true">

</xs:complexType>

complexType FullyExtensibleSMALElementType

AssociatedEntity Association AssociationSet AttachmentPoint AttachmentPointSet Background BehaviorParameterSet Classification CloudConditionSet CurrentConditionParameters DisConfiguration DynamicResponseConstraints EntitySet EnvironmentalCondition EnvironmentalConditionSet GeographicLocation GeoOrigin IdentificationParameters LocalPrecipitation LocationOrientation NetworkChannel NetworkedCommunicationParameterSet OverlaySet Parameter PhysicalConstraints PhysicalParameters PointRadiusCircular PrecipitationConditionSet SeaState Simulation SimulationAgent SMAL StaticModelSet TacticalConstraints TemperatureConditionSet TerrainTile TimeParameters WaterConditionSet WindConditionSet World X3DArchiveModel

complexTypes

BoundingPolygonType HeadingType ObjectDefinitionType OverlayImageDescriptorType QuaternionType SpeedDirectionType

source

<xs:complexType name="FullyExtensibleSMALElementType" abstract="true">

</xs:complexType>

complexType HeadingType

diagram

type

extension of FullyExtensibleSMALElementType

properties

base	FullyExtensibleSMALElementType

Name	Type	Use	Default	Fixed	Annotation
angle	xs:float		0
northReference	northReferenceEnumeration		MAGNETIC
pitchAngle	xs:float		0

source

<xs:complexType name="HeadingType">
<xs:complexContent>
    <xs:extension base="FullyExtensibleSMALElementType">
      <xs:attribute name="angle" type="xs:float" default="0"/>
      <xs:attribute name="northReference" type="northReferenceEnumeration" default="MAGNETIC"/>
      <xs:attribute name="pitchAngle" type="xs:float" default="0"/>
    </xs:extension>
</xs:complexContent>
</xs:complexType>

attribute HeadingType/@angle

type

xs:float

properties

isRef	0
default	0

source

<xs:attribute name="angle" type="xs:float" default="0"/>

attribute HeadingType/@northReference

type

northReferenceEnumeration

properties

isRef	0
default	MAGNETIC

facets

enumeration	TRUE
enumeration	MAGNETIC

source

<xs:attribute name="northReference" type="northReferenceEnumeration" default="MAGNETIC"/>

attribute HeadingType/@pitchAngle

type

xs:float

properties

isRef	0
default	0

source

<xs:attribute name="pitchAngle" type="xs:float" default="0"/>

complexType ObjectDefinitionType

diagram

type

extension of FullyExtensibleSMALElementType

properties

base	FullyExtensibleSMALElementType

children

Classification IdentificationParameters ObjectModel PhysicalParameters

used by

elements

EntityDefinition StaticModelDefinition

annotation

appInfo

Super-type which contains the base elements for all non-terrain models, including identification, 3D model, and physical parameters.

source

<xs:complexType name="ObjectDefinitionType">
<xs:annotation>
    <xs:appinfo>Super-type which contains the base elements for all non-terrain models, including identification, 3D model, and physical parameters.</xs:appinfo>
</xs:annotation>
<xs:complexContent>
    <xs:extension base="FullyExtensibleSMALElementType">
      <xs:sequence>
        <xs:element ref="Classification"/>
        <xs:element ref="IdentificationParameters" maxOccurs="unbounded"/>
        <xs:element ref="ObjectModel" maxOccurs="unbounded"/>
        <xs:element ref="PhysicalParameters"/>
      </xs:sequence>
    </xs:extension>
</xs:complexContent>
</xs:complexType>

complexType OverlayImageDescriptorType

diagram

type

extension of FullyExtensibleSMALElementType

properties

base	FullyExtensibleSMALElementType

OverlaySetChart OverlaySetImagery OverlaySetMap

attributes

Name	Type	Use	Default	Fixed	Annotation
fileLocationURL	xs:anyURI		http://www.web3d.org/x3d/content/examples/
centerPointLatitude	latitudeOrdinatePattern	optional	N00 00.0
centerPointLongitude	longitudeOrdinatePattern	optional	W00 00.0
northBoundLatitude	latitudeOrdinatePattern	optional	N00 00.0
southBoundLatitude	latitudeOrdinatePattern	optional	N00 00.0
westBoundLongitude	longitudeOrdinatePattern	optional	W00 00.0
eastBoundLongitude	longitudeOrdinatePattern	optional	W00 00.0
