<?xml version="1.0" encoding="UTF-8"?>
|
| 2 |
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
|
| 3 | <X3D profile='Immersive' version='3.0' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'> |
| 4 | <head> |
| 5 | <meta name='title' content=' NTDSExternProtoExamples.x3d '/> |
| 6 | <meta name='description' content='Standard Naval Tactical Display Symbology icons'/> |
| 7 | <meta name='creator' content='LT Patrick Sullivan'/> |
| 8 | <meta name='created' content='11 February 2006'/> |
| 9 | <meta name='modified' content='28 November 2019'/> |
| 10 | <meta name='reference' content=' NTDSPrototypes.x3d '/> |
| 11 | <meta name=' TODO ' content=' Rename to NTDSExamples and modify SavageStudio accordingly '/> |
| 12 | <meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/Savage/Tools/Symbology/NTDSExternProtoExamples.x3d '/> |
| 13 | <meta name='generator' content='X3D-Edit 3.2, https://www.web3d.org/x3d/tools/X3D-Edit'/> |
| 14 | <meta name='license' content='../../license.html'/> |
| 15 | </head> |
DEF nodes index:
AirAssumedFriendExample,
AirFriendExample,
AirHostileExample,
AirNeutralExample,
AirPendingExample,
AirSuspectExample,
AirUnknownExample,
GroundEquipmentAssumedFriendExample,
GroundEquipmentFriendExample,
GroundEquipmentHostileExample,
GroundEquipmentNeutralExample,
GroundEquipmentPendingExample,
GroundEquipmentSuspectExample,
GroundEquipmentUnknownExample,
SubSurfaceAssumedFriendExample,
SubSurfaceFriendExample,
SubSurfaceHostileExample,
SubSurfaceNeutralExample,
SubSurfacePendingExample,
SubSurfaceSuspectExample,
SubSurfaceUnknownExample,
SurfaceAssumedFriendExample,
SurfaceFriendExample,
SurfaceHostileExample,
SurfaceNeutralExample,
SurfacePendingExample,
SurfaceSuspectExample,
SurfaceUnknownExample
| 16 | <Scene> |
| 17 | <WorldInfo title='NTDSExternProtoExamples.x3d'/> |

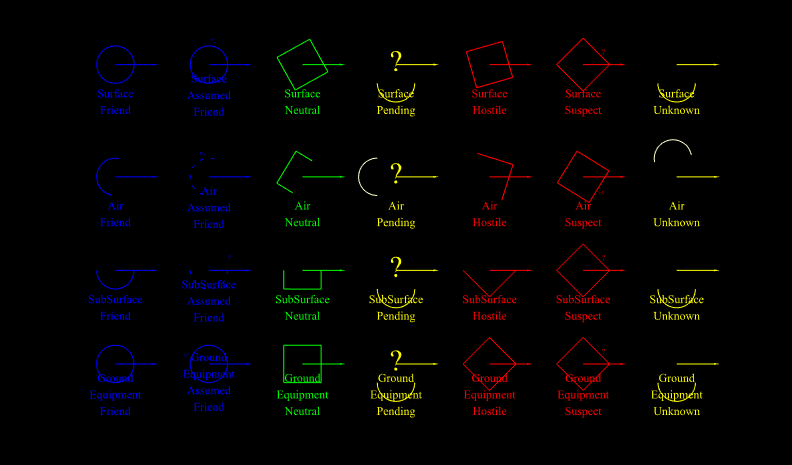

| 18 | <Viewpoint description='Unit Symbology Prototype Examples' orientation='-1 0 0 1.57' position='0 30 8'/> |
| 19 | <!-- Common proto to all symbols --> |
| 20 | <ExternProtoDeclare name='SymbolLabel' url=' "NTDSPrototypes.x3d#SymbolLabel" "../../../Savage/Tools/Symbology/NTDSPrototypes.x3d#SymbolLabel" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Symbology/NTDSPrototypes.x3d#SymbolLabel" '> |
| 21 |
<field name='labelColor' type='SFColor' accessType='inputOutput'
appinfo='Color for labels'/> |
| 22 |
<field name='trackLabel' type='MFString' accessType='inputOutput'
appinfo='Additional information for the track (i.e. track number entityID entity name)'/> |
| 23 | </ExternProtoDeclare> |
| 24 | <!-- Surface Extern Protos --> |
| 25 | <ExternProtoDeclare name='SurfaceUnknown' url=' "NTDSPrototypes.x3d#SurfaceUnknown" "../../../Savage/Tools/Symbology/NTDSPrototypes.x3d#SurfaceUnknown" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Symbology/NTDSPrototypes.x3d#SurfaceUnknown" '> |
| 26 |
<field name='color' type='SFColor' accessType='inputOutput'
appinfo='Single color value for symbol'/> |
| 27 | </ExternProtoDeclare> |
| 28 | <ExternProtoDeclare name='SurfaceFriend' url=' "NTDSPrototypes.x3d#SurfaceFriend" "../../../Savage/Tools/Symbology/NTDSPrototypes.x3d#SurfaceFriend" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Symbology/NTDSPrototypes.x3d#SurfaceFriend" '> |
| 29 |
<field name='color' type='MFColor' accessType='inputOutput'
appinfo='Single color value for symbol'/> |
| 30 | </ExternProtoDeclare> |
| 31 | <ExternProtoDeclare name='SurfaceAssumedFriend' url=' "NTDSPrototypes.x3d#SurfaceAssumedFriend" "../../../Savage/Tools/Symbology/NTDSPrototypes.x3d#SurfaceAssumedFriend" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Symbology/NTDSPrototypes.x3d#SurfaceAssumedFriend" '> |
| 32 |
<field name='color' type='MFColor' accessType='inputOutput'
appinfo='Single color value for symbol'/> |
| 33 |
<field name='labelColor' type='SFColor' accessType='inputOutput'
appinfo='Color for labels'/> |
| 34 |
<field name='symbolModifier' type='MFString' accessType='inputOutput'
appinfo='Symbol modifier (i.e. unknown suspect)'/> |
| 35 | </ExternProtoDeclare> |
| 36 | <ExternProtoDeclare name='SurfaceNeutral' url=' "NTDSPrototypes.x3d#SurfaceNeutral" "../../../Savage/Tools/Symbology/NTDSPrototypes.x3d#SurfaceNeutral" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Symbology/NTDSPrototypes.x3d#SurfaceNeutral" '> |
| 37 |
<field name='color' type='MFColor' accessType='inputOutput'
appinfo='Single color value for symbol'/> |
| 38 | </ExternProtoDeclare> |
| 39 | <ExternProtoDeclare name='SurfacePending' url=' "NTDSPrototypes.x3d#SurfacePending" "../../../Savage/Tools/Symbology/NTDSPrototypes.x3d#SurfacePending" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Symbology/NTDSPrototypes.x3d#SurfacePending" '> |
| 40 |
<field name='color' type='SFColor' accessType='inputOutput'
appinfo='Single color value for symbol'/> |
| 41 |
<field name='labelColor' type='SFColor' accessType='inputOutput'
appinfo='Color for labels'/> |
| 42 |
<field name='symbolModifier' type='MFString' accessType='inputOutput'
appinfo='Symbol modifier (i.e. unknown suspect)'/> |
| 43 | </ExternProtoDeclare> |
| 44 | <ExternProtoDeclare name='SurfaceHostile' url=' "NTDSPrototypes.x3d#SurfaceHostile" "../../../Savage/Tools/Symbology/NTDSPrototypes.x3d#SurfaceHostile" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Symbology/NTDSPrototypes.x3d#SurfaceHostile" '> |
| 45 |
<field name='color' type='MFColor' accessType='inputOutput'
appinfo='Single color value for symbol'/> |
| 46 | </ExternProtoDeclare> |

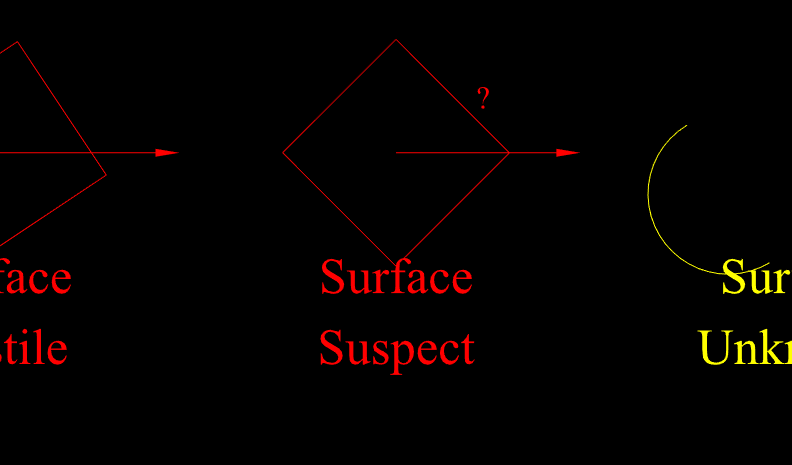

| 47 | <ExternProtoDeclare name='SurfaceSuspect' url=' "NTDSPrototypes.x3d#SurfaceSuspect" "../../../Savage/Tools/Symbology/NTDSPrototypes.x3d#SurfaceSuspect" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Symbology/NTDSPrototypes.x3d#SurfaceSuspect" '> |
| 48 |
<field name='color' type='MFColor' accessType='inputOutput'
appinfo='Single color value for symbol'/> |
| 49 |
<field name='labelColor' type='SFColor' accessType='inputOutput'
appinfo='Color for labels'/> |
| 50 |
<field name='symbolModifier' type='MFString' accessType='inputOutput'
appinfo='Symbol modifier (i.e. unknown suspect)'/> |
| 51 | </ExternProtoDeclare> |
| 52 | <!-- Air Extern Protos --> |
| 53 | <ExternProtoDeclare name='AirUnknown' url=' "NTDSPrototypes.x3d#AirUnknown" "../../../Savage/Tools/Symbology/NTDSPrototypes.x3d#AirUnknown" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Symbology/NTDSPrototypes.x3d#AirUnknown" '> |
| 54 |
<field name='color' type='SFColor' accessType='inputOutput'
appinfo='Single color value for symbol'/> |
| 55 | </ExternProtoDeclare> |
| 56 | <ExternProtoDeclare name='AirFriend' url=' "NTDSPrototypes.x3d#AirFriend" "../../../Savage/Tools/Symbology/NTDSPrototypes.x3d#AirFriend" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Symbology/NTDSPrototypes.x3d#AirFriend" '> |
| 57 |
<field name='color' type='MFColor' accessType='inputOutput'
appinfo='Single color value for symbol'/> |
| 58 | </ExternProtoDeclare> |
| 59 | <ExternProtoDeclare name='AirAssumedFriend' url=' "NTDSPrototypes.x3d#AirAssumedFriend" "../../../Savage/Tools/Symbology/NTDSPrototypes.x3d#AirAssumedFriend" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Symbology/NTDSPrototypes.x3d#AirAssumedFriend" '> |
| 60 |
<field name='color' type='MFColor' accessType='inputOutput'
appinfo='Single color value for symbol'/> |
| 61 |
<field name='labelColor' type='SFColor' accessType='inputOutput'
appinfo='Color for labels'/> |
| 62 |
<field name='symbolModifier' type='MFString' accessType='inputOutput'
appinfo='Symbol modifier (i.e. unknown suspect)'/> |
| 63 | </ExternProtoDeclare> |
| 64 | <ExternProtoDeclare name='AirNeutral' url=' "NTDSPrototypes.x3d#AirNeutral" "../../../Savage/Tools/Symbology/NTDSPrototypes.x3d#AirNeutral" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Symbology/NTDSPrototypes.x3d#AirNeutral" '> |
| 65 |
<field name='color' type='MFColor' accessType='inputOutput'
appinfo='Single color value for symbol'/> |
| 66 | </ExternProtoDeclare> |
| 67 | <ExternProtoDeclare name='AirPending' url=' "NTDSPrototypes.x3d#AirPending" "../../../Savage/Tools/Symbology/NTDSPrototypes.x3d#AirPending" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Symbology/NTDSPrototypes.x3d#AirPending" '> |
| 68 |
<field name='color' type='SFColor' accessType='inputOutput'
appinfo='Single color value for symbol'/> |
| 69 |
<field name='labelColor' type='SFColor' accessType='inputOutput'
appinfo='Color for labels'/> |
| 70 |
<field name='symbolModifier' type='MFString' accessType='inputOutput'
appinfo='Symbol modifier (i.e. unknown suspect)'/> |
| 71 | </ExternProtoDeclare> |
| 72 | <ExternProtoDeclare name='AirHostile' url=' "NTDSPrototypes.x3d#AirHostile" "../../../Savage/Tools/Symbology/NTDSPrototypes.x3d#AirHostile" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Symbology/NTDSPrototypes.x3d#AirHostile" '> |
| 73 |
<field name='color' type='MFColor' accessType='inputOutput'
appinfo='Single color value for symbol'/> |
| 74 | </ExternProtoDeclare> |

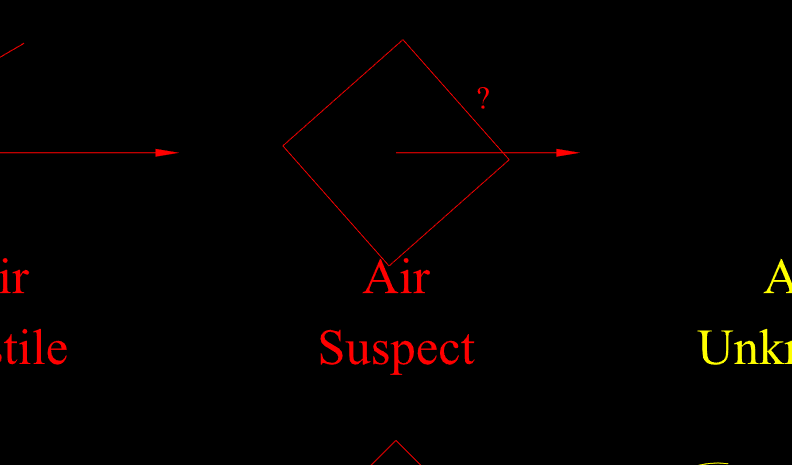

| 75 | <ExternProtoDeclare name='AirSuspect' url=' "NTDSPrototypes.x3d#AirSuspect" "../../../Savage/Tools/Symbology/NTDSPrototypes.x3d#AirSuspect" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Symbology/NTDSPrototypes.x3d#AirSuspect" '> |
| 76 |
<field name='color' type='MFColor' accessType='inputOutput'
appinfo='Single color value for symbol'/> |
| 77 |
<field name='labelColor' type='SFColor' accessType='inputOutput'
appinfo='Color for labels'/> |
| 78 |
<field name='symbolModifier' type='MFString' accessType='inputOutput'
appinfo='Symbol modifier (i.e. unknown suspect)'/> |
| 79 | </ExternProtoDeclare> |
| 80 | <!-- SubSurface Extern Protos --> |

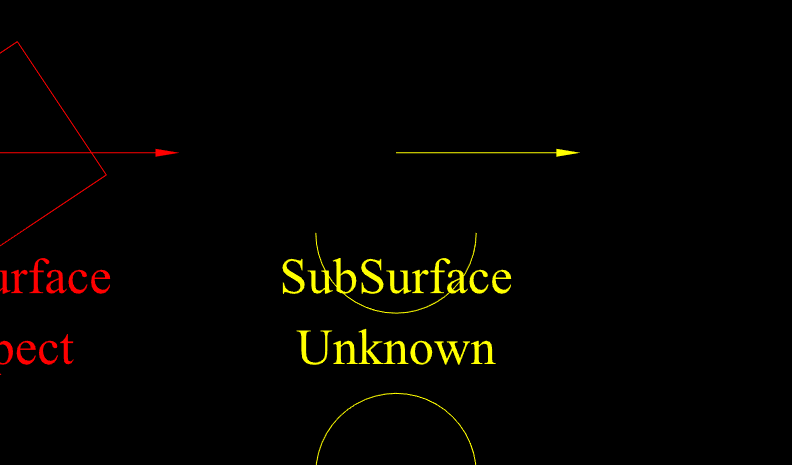

| 81 | <ExternProtoDeclare name='SubSurfaceUnknown' url=' "NTDSPrototypes.x3d#SubSurfaceUnknown" "../../../Savage/Tools/Symbology/NTDSPrototypes.x3d#SubSurfaceUnknown" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Symbology/NTDSPrototypes.x3d#SubSurfaceUnknown" '> |
| 82 |
<field name='color' type='SFColor' accessType='inputOutput'
appinfo='Single color value for symbol'/> |
| 83 | </ExternProtoDeclare> |
| 84 | <ExternProtoDeclare name='SubSurfaceFriend' url=' "NTDSPrototypes.x3d#SubSurfaceFriend" "../../../Savage/Tools/Symbology/NTDSPrototypes.x3d#SubSurfaceFriend" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Symbology/NTDSPrototypes.x3d#SubSurfaceFriend" '> |
| 85 |
<field name='color' type='MFColor' accessType='inputOutput'
appinfo='Single color value for symbol'/> |
| 86 | </ExternProtoDeclare> |
| 87 | <ExternProtoDeclare name='SubSurfaceAssumedFriend' url=' "NTDSPrototypes.x3d#SubSurfaceAssumedFriend" "../../../Savage/Tools/Symbology/NTDSPrototypes.x3d#SubSurfaceAssumedFriend" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Symbology/NTDSPrototypes.x3d#SubSurfaceAssumedFriend" '> |
| 88 |
<field name='color' type='MFColor' accessType='inputOutput'
appinfo='Single color value for symbol'/> |
| 89 |
<field name='labelColor' type='SFColor' accessType='inputOutput'
appinfo='Color for labels'/> |
| 90 |
<field name='symbolModifier' type='MFString' accessType='inputOutput'
appinfo='Symbol modifier (i.e. unknown suspect)'/> |
| 91 | </ExternProtoDeclare> |
| 92 | <ExternProtoDeclare name='SubSurfaceNeutral' url=' "NTDSPrototypes.x3d#SubSurfaceNeutral" "../../../Savage/Tools/Symbology/NTDSPrototypes.x3d#SubSurfaceNeutral" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Symbology/NTDSPrototypes.x3d#SubSurfaceNeutral" '> |
| 93 |
<field name='color' type='MFColor' accessType='inputOutput'
appinfo='Single color value for symbol'/> |
| 94 | </ExternProtoDeclare> |

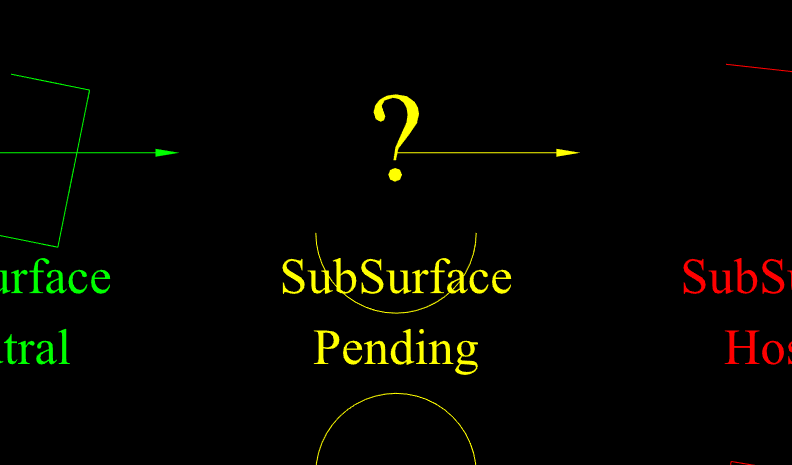

| 95 | <ExternProtoDeclare name='SubSurfacePending' url=' "NTDSPrototypes.x3d#SubSurfacePending" "../../../Savage/Tools/Symbology/NTDSPrototypes.x3d#SubSurfacePending" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Symbology/NTDSPrototypes.x3d#SubSurfacePending" '> |
| 96 |
<field name='color' type='SFColor' accessType='inputOutput'
appinfo='Single color value for symbol'/> |
| 97 |
<field name='labelColor' type='SFColor' accessType='inputOutput'
appinfo='Color for labels'/> |
| 98 |
<field name='symbolModifier' type='MFString' accessType='inputOutput'
appinfo='Symbol modifier (i.e. unknown suspect)'/> |
| 99 | </ExternProtoDeclare> |

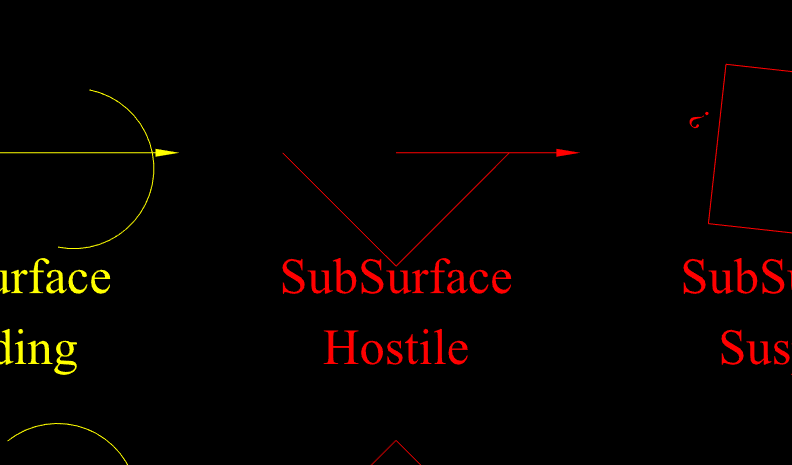

| 100 | <ExternProtoDeclare name='SubSurfaceHostile' url=' "NTDSPrototypes.x3d#SubSurfaceHostile" "../../../Savage/Tools/Symbology/NTDSPrototypes.x3d#SubSurfaceHostile" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Symbology/NTDSPrototypes.x3d#SubSurfaceHostile" '> |
| 101 |
<field name='color' type='MFColor' accessType='inputOutput'
appinfo='Single color value for symbol'/> |
| 102 | </ExternProtoDeclare> |
| 103 | <ExternProtoDeclare name='SubSurfaceSuspect' url=' "NTDSPrototypes.x3d#SubSurfaceSuspect" "../../../Savage/Tools/Symbology/NTDSPrototypes.x3d#SubSurfaceSuspect" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Symbology/NTDSPrototypes.x3d#SubSurfaceSuspect" '> |
| 104 |
<field name='color' type='MFColor' accessType='inputOutput'
appinfo='Single color value for symbol'/> |
| 105 |
<field name='labelColor' type='SFColor' accessType='inputOutput'
appinfo='Color for labels'/> |
| 106 |
<field name='symbolModifier' type='MFString' accessType='inputOutput'
appinfo='Symbol modifier (i.e. unknown suspect)'/> |
| 107 | </ExternProtoDeclare> |
| 108 | <!-- GroundUnit Extern Protos --> |
| 109 | <ExternProtoDeclare name='GroundEquipmentPending' url=' "NTDSPrototypes.x3d#GroundEquipmentPending" "../../../Savage/Tools/Symbology/NTDSPrototypes.x3d#GroundEquipmentPending" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Symbology/NTDSPrototypes.x3d#GroundEquipmentPending" '/> |
| 110 | <ExternProtoDeclare name='GroundEquipmentUnknown' url=' "NTDSPrototypes.x3d#GroundEquipmentUnknown" "../../../Savage/Tools/Symbology/NTDSPrototypes.x3d#GroundEquipmentUnknown" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Symbology/NTDSPrototypes.x3d#GroundEquipmentUnknown" '/> |
| 111 | <ExternProtoDeclare name='GroundEquipmentFriend' url=' "NTDSPrototypes.x3d#GroundEquipmentFriend" "../../../Savage/Tools/Symbology/NTDSPrototypes.x3d#GroundEquipmentFriend" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Symbology/NTDSPrototypes.x3d#GroundEquipmentFriend" '/> |
| 112 | <ExternProtoDeclare name='GroundEquipmentNeutral' url=' "NTDSPrototypes.x3d#GroundEquipmentNeutral" "../../../Savage/Tools/Symbology/NTDSPrototypes.x3d#GroundEquipmentNeutral" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Symbology/NTDSPrototypes.x3d#GroundEquipmentNeutral" '/> |
| 113 | <ExternProtoDeclare name='GroundEquipmentHostile' url=' "NTDSPrototypes.x3d#GroundEquipmentHostile" "../../../Savage/Tools/Symbology/NTDSPrototypes.x3d#GroundEquipmentHostile" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Symbology/NTDSPrototypes.x3d#GroundEquipmentHostile" '/> |
| 114 | <ExternProtoDeclare name='GroundEquipmentAssumedFriend' url=' "NTDSPrototypes.x3d#GroundEquipmentAssumedFriend" "../../../Savage/Tools/Symbology/NTDSPrototypes.x3d#GroundEquipmentAssumedFriend" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Symbology/NTDSPrototypes.x3d#GroundEquipmentAssumedFriend" '/> |

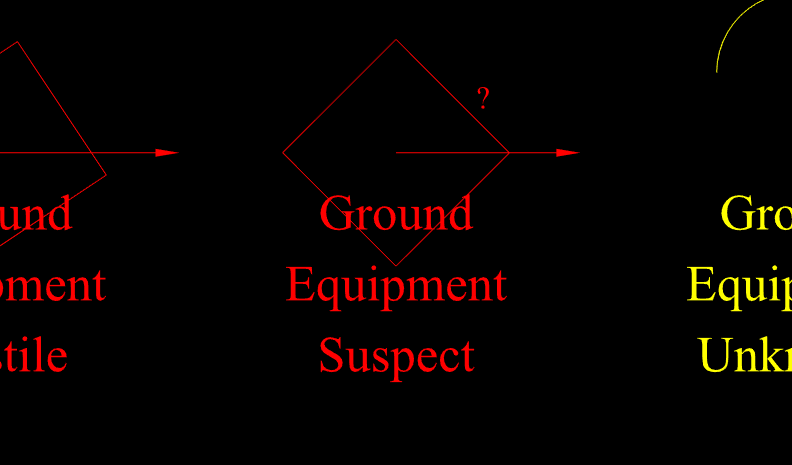

| 115 | <ExternProtoDeclare name='GroundEquipmentSuspect' url=' "NTDSPrototypes.x3d#GroundEquipmentSuspect" "../../../Savage/Tools/Symbology/NTDSPrototypes.x3d#GroundEquipmentSuspect" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Symbology/NTDSPrototypes.x3d#GroundEquipmentSuspect" '/> |
| 116 | <!-- Surface Examples --> |
| 117 | <Transform DEF='SurfaceFriendExample' translation='-15 0 -1'> |
| 118 | <Viewpoint description='Surface Friend' orientation='-1 0 0 1.57' position='0 7 1'/> |
| 119 | <ProtoInstance name='SurfaceFriend'> |
| 120 | <fieldValue name='color' value='0 0 1'/> |
| 121 | </ProtoInstance> |
| 122 | <ProtoInstance name='SymbolLabel'> |
| 123 | <fieldValue name='labelColor' value='0 0 1'/> |
| 124 | <fieldValue name='trackLabel' value='"Surface" "Friend"'/> |
| 125 | </ProtoInstance> |
| 126 | </Transform> |

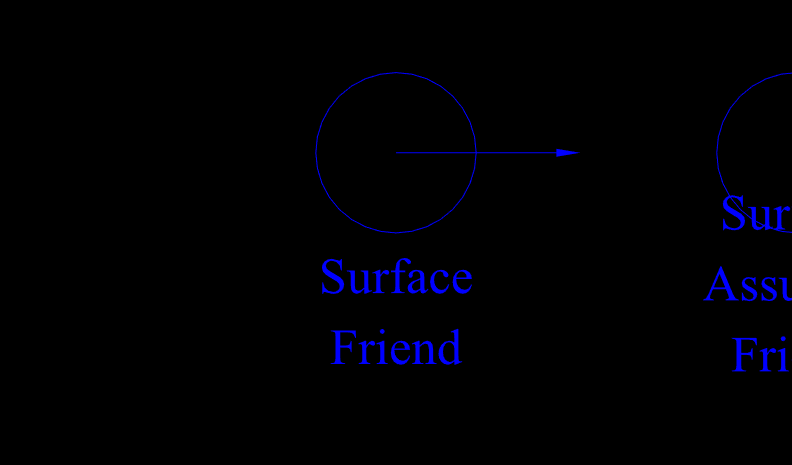

| 127 | <Transform DEF='SurfaceAssumedFriendExample' translation='-10 0 -1'> |
| 128 | <Viewpoint description='Surface Assumed Friend' orientation='-1 0 0 1.57' position='0 7 1'/> |
| 129 | <ProtoInstance name='SurfaceAssumedFriend'> |
| 130 | <fieldValue name='color' value='0 0 1'/> |
| 131 | <fieldValue name='labelColor' value='0 0 1'/> |
| 132 | <fieldValue name='symbolModifier' value='"?"'/> |
| 133 | </ProtoInstance> |
| 134 | <ProtoInstance name='SymbolLabel'> |
| 135 | <fieldValue name='labelColor' value='0 0 1'/> |
| 136 | <fieldValue name='trackLabel' value='"Surface" "Assumed" "Friend"'/> |
| 137 | </ProtoInstance> |
| 138 | </Transform> |

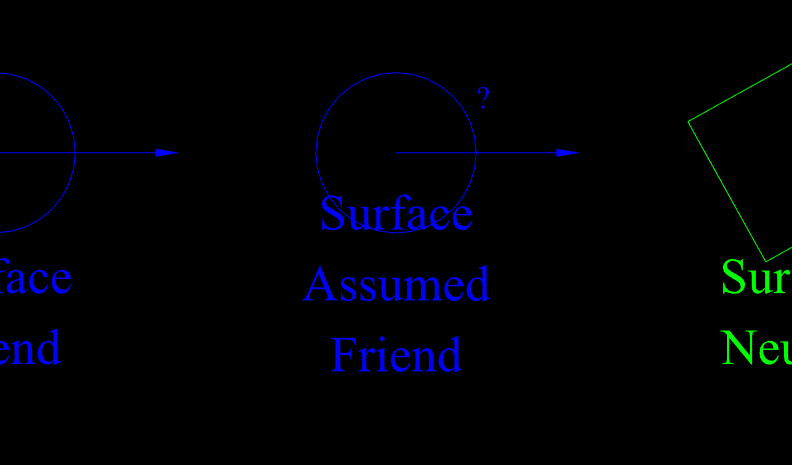

| 139 | <Transform DEF='SurfaceNeutralExample' translation='-5 0 -1'> |
| 140 | <Viewpoint description='Surface Neutral' orientation='-1 0 0 1.57' position='0 7 1'/> |
| 141 | <ProtoInstance name='SurfaceNeutral'> |
| 142 | <fieldValue name='color' value='0 1 0'/> |
| 143 | </ProtoInstance> |
| 144 | <ProtoInstance name='SymbolLabel'> |
| 145 | <fieldValue name='labelColor' value='0 1 0'/> |
| 146 | <fieldValue name='trackLabel' value='"Surface" "Neutral"'/> |
| 147 | </ProtoInstance> |
| 148 | </Transform> |
| 149 | <Transform DEF='SurfacePendingExample' translation='0 0 -1'> |
| 150 | <Viewpoint description='Surface Pending' orientation='-1 0 0 1.57' position='0 7 1'/> |
| 151 | <ProtoInstance name='SurfacePending'> |
| 152 | <fieldValue name='color' value='1 1 0'/> |
| 153 | <fieldValue name='labelColor' value='1 1 0'/> |
| 154 | <fieldValue name='symbolModifier' value='"?"'/> |
| 155 | </ProtoInstance> |
| 156 | <ProtoInstance name='SymbolLabel'> |
| 157 | <fieldValue name='labelColor' value='1 1 0'/> |
| 158 | <fieldValue name='trackLabel' value='"Surface" "Pending"'/> |
| 159 | </ProtoInstance> |
| 160 | </Transform> |
| 161 | <Transform DEF='SurfaceHostileExample' translation='5 0 -1'> |
| 162 | <Viewpoint description='Surface Hostile' orientation='-1 0 0 1.57' position='0 7 1'/> |
| 163 | <ProtoInstance name='SurfaceHostile'> |
| 164 | <fieldValue name='color' value='1 0 0'/> |
| 165 | </ProtoInstance> |
| 166 | <ProtoInstance name='SymbolLabel'> |
| 167 | <fieldValue name='labelColor' value='1 0 0'/> |
| 168 | <fieldValue name='trackLabel' value='"Surface" "Hostile"'/> |
| 169 | </ProtoInstance> |
| 170 | </Transform> |

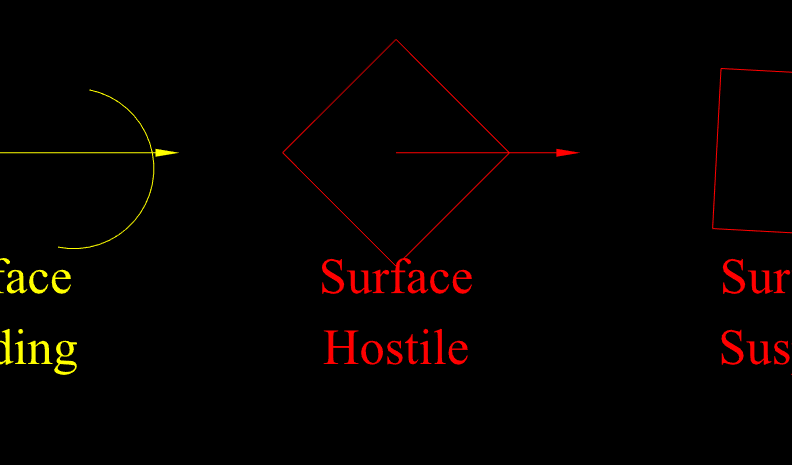

| 171 | <Transform DEF='SurfaceSuspectExample' translation='10 0 -1'> |
| 172 | <Viewpoint description='Surface Suspect' orientation='-1 0 0 1.57' position='0 7 1'/> |
| 173 | <ProtoInstance name='SurfaceSuspect'> |
| 174 | <fieldValue name='color' value='1 0 0'/> |
| 175 | <fieldValue name='labelColor' value='1 0 0'/> |
| 176 | <fieldValue name='symbolModifier' value='"?"'/> |
| 177 | </ProtoInstance> |
| 178 | <ProtoInstance name='SymbolLabel'> |
| 179 | <fieldValue name='labelColor' value='1 0 0'/> |
| 180 | <fieldValue name='trackLabel' value='"Surface" "Suspect"'/> |
| 181 | </ProtoInstance> |
| 182 | </Transform> |
| 183 | <Transform DEF='SurfaceUnknownExample' translation='15 0 -1'> |
| 184 | <Viewpoint description='Surface Unknown' orientation='-1 0 0 1.57' position='0 7 1'/> |
| 185 | <ProtoInstance name='SurfaceUnknown'> |
| 186 | <fieldValue name='color' value='1 1 0'/> |
| 187 | </ProtoInstance> |
| 188 | <ProtoInstance name='SymbolLabel'> |
| 189 | <fieldValue name='labelColor' value='1 1 0'/> |
| 190 | <fieldValue name='trackLabel' value='"Surface" "Unknown"'/> |
| 191 | </ProtoInstance> |
| 192 | </Transform> |
| 193 | <!-- Air Examples --> |

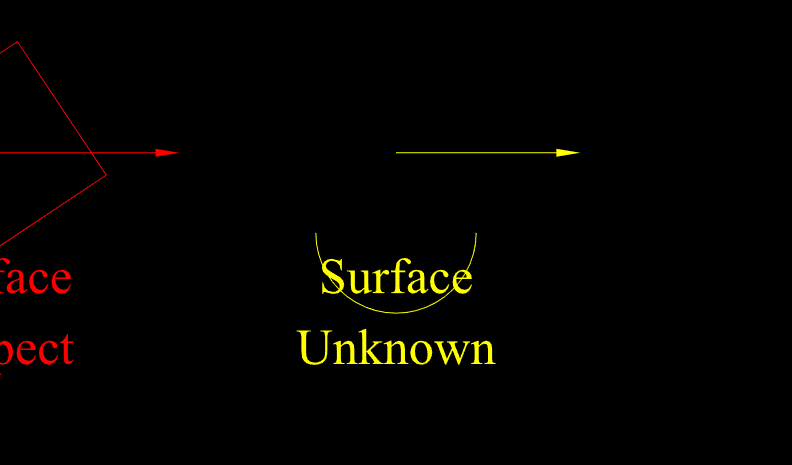

| 194 | <Transform DEF='AirFriendExample' translation='-15 0 5'> |
| 195 | <Viewpoint description='Air Friend' orientation='-1 0 0 1.57' position='0 7 1'/> |
| 196 | <ProtoInstance name='AirFriend'> |
| 197 | <fieldValue name='color' value='0 0 1'/> |
| 198 | </ProtoInstance> |
| 199 | <ProtoInstance name='SymbolLabel'> |
| 200 | <fieldValue name='labelColor' value='0 0 1'/> |
| 201 | <fieldValue name='trackLabel' value='"Air" "Friend"'/> |
| 202 | </ProtoInstance> |
| 203 | </Transform> |

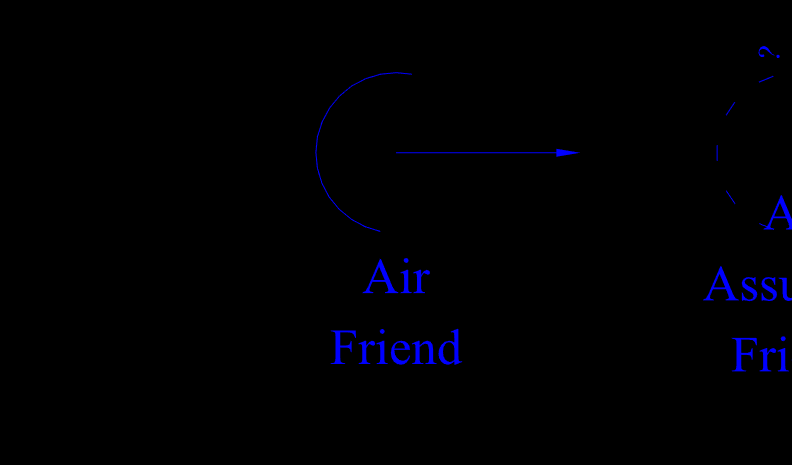

| 204 | <Transform DEF='AirAssumedFriendExample' translation='-10 0 5'> |
| 205 | <Viewpoint description='Air Assumed Friend' orientation='-1 0 0 1.57' position='0 7 1'/> |
| 206 | <ProtoInstance name='AirAssumedFriend'> |
| 207 | <fieldValue name='color' value='0 0 1'/> |
| 208 | <fieldValue name='labelColor' value='0 0 1'/> |
| 209 | <fieldValue name='symbolModifier' value='"?"'/> |
| 210 | </ProtoInstance> |
| 211 | <ProtoInstance name='SymbolLabel'> |
| 212 | <fieldValue name='labelColor' value='0 0 1'/> |
| 213 | <fieldValue name='trackLabel' value='"Air" "Assumed" "Friend"'/> |
| 214 | </ProtoInstance> |
| 215 | </Transform> |

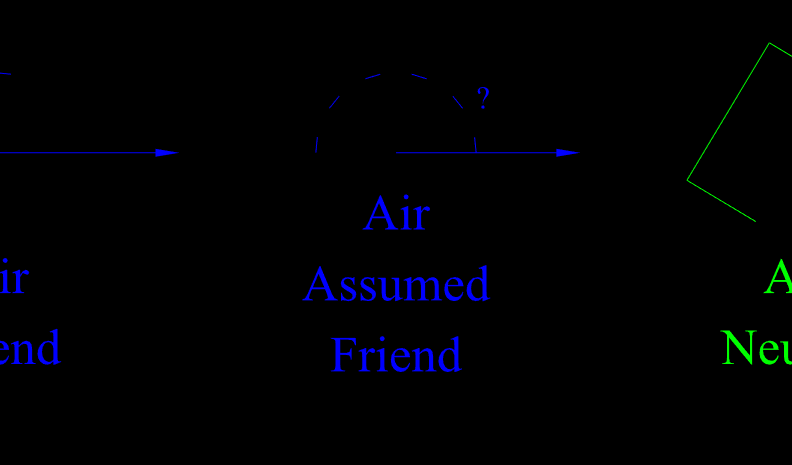

| 216 | <Transform DEF='AirNeutralExample' translation='-5 0 5'> |
| 217 | <Viewpoint description='Air Neutral' orientation='-1 0 0 1.57' position='0 7 1'/> |
| 218 | <ProtoInstance name='AirNeutral'> |
| 219 | <fieldValue name='color' value='0 1 0'/> |
| 220 | </ProtoInstance> |
| 221 | <ProtoInstance name='SymbolLabel'> |
| 222 | <fieldValue name='labelColor' value='0 1 0'/> |
| 223 | <fieldValue name='trackLabel' value='"Air" "Neutral"'/> |
| 224 | </ProtoInstance> |
| 225 | </Transform> |

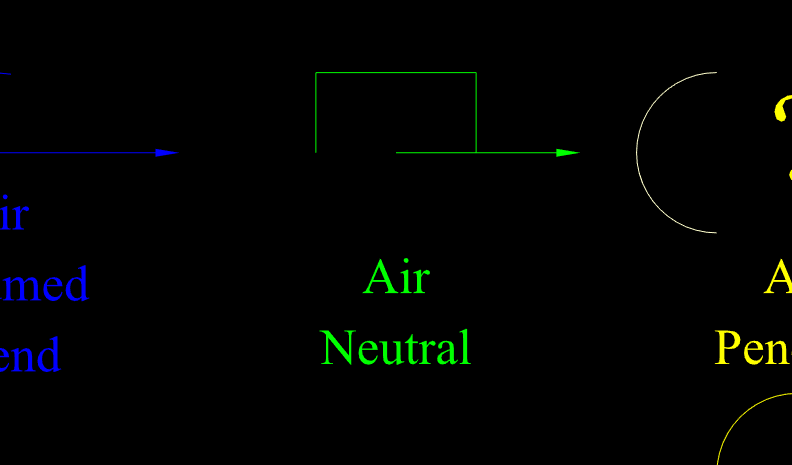

| 226 | <Transform DEF='AirPendingExample' translation='0 0 5'> |
| 227 | <Viewpoint description='Air Pending' orientation='-1 0 0 1.57' position='0 7 1'/> |
| 228 | <ProtoInstance name='AirPending'> |
| 229 | <fieldValue name='color' value='1 1 0'/> |
| 230 | <fieldValue name='labelColor' value='1 1 0'/> |
| 231 | <fieldValue name='symbolModifier' value='"?"'/> |
| 232 | </ProtoInstance> |
| 233 | <ProtoInstance name='SymbolLabel'> |
| 234 | <fieldValue name='labelColor' value='1 1 0'/> |
| 235 | <fieldValue name='trackLabel' value='"Air" "Pending"'/> |
| 236 | </ProtoInstance> |
| 237 | </Transform> |
| 238 | <Transform DEF='AirHostileExample' translation='5 0 5'> |
| 239 | <Viewpoint description='Air Hostile' orientation='-1 0 0 1.57' position='0 7 1'/> |
| 240 | <ProtoInstance name='AirHostile'> |
| 241 | <fieldValue name='color' value='1 0 0'/> |
| 242 | </ProtoInstance> |
| 243 | <ProtoInstance name='SymbolLabel'> |
| 244 | <fieldValue name='labelColor' value='1 0 0'/> |
| 245 | <fieldValue name='trackLabel' value='"Air" "Hostile"'/> |
| 246 | </ProtoInstance> |
| 247 | </Transform> |

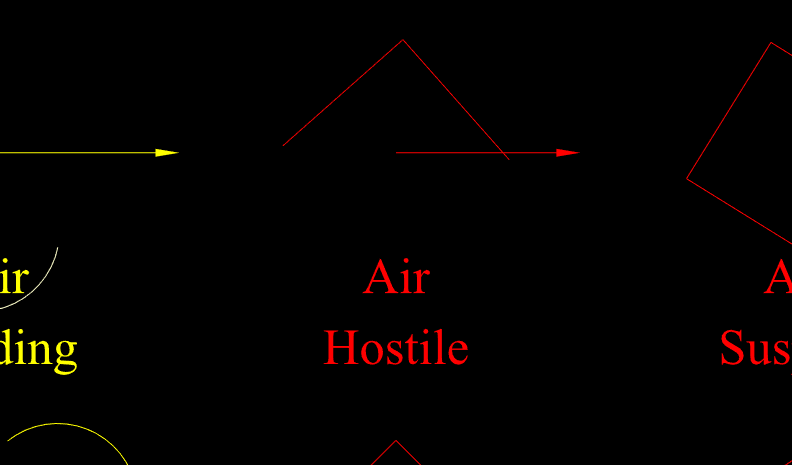

| 248 | <Transform DEF='AirSuspectExample' translation='10 0 5'> |
| 249 | <Viewpoint description='Air Suspect' orientation='-1 0 0 1.57' position='0 7 1'/> |
| 250 | <ProtoInstance name='AirSuspect'> |
| 251 | <fieldValue name='color' value='1 0 0'/> |
| 252 | <fieldValue name='labelColor' value='1 0 0'/> |
| 253 | <fieldValue name='symbolModifier' value='"?"'/> |
| 254 | </ProtoInstance> |
| 255 | <ProtoInstance name='SymbolLabel'> |
| 256 | <fieldValue name='labelColor' value='1 0 0'/> |
| 257 | <fieldValue name='trackLabel' value='"Air" "Suspect"'/> |
| 258 | </ProtoInstance> |
| 259 | </Transform> |
| 260 | <Transform DEF='AirUnknownExample' translation='15 0 5'> |
| 261 | <Viewpoint description='Air Unknown' orientation='-1 0 0 1.57' position='0 7 1'/> |
| 262 | <ProtoInstance name='AirUnknown'> |
| 263 | <fieldValue name='color' value='1 1 0'/> |
| 264 | </ProtoInstance> |
| 265 | <ProtoInstance name='SymbolLabel'> |
| 266 | <fieldValue name='labelColor' value='1 1 0'/> |
| 267 | <fieldValue name='trackLabel' value='"Air" "Unknown"'/> |
| 268 | </ProtoInstance> |
| 269 | </Transform> |
| 270 | <!-- Sub-Surface Examples --> |

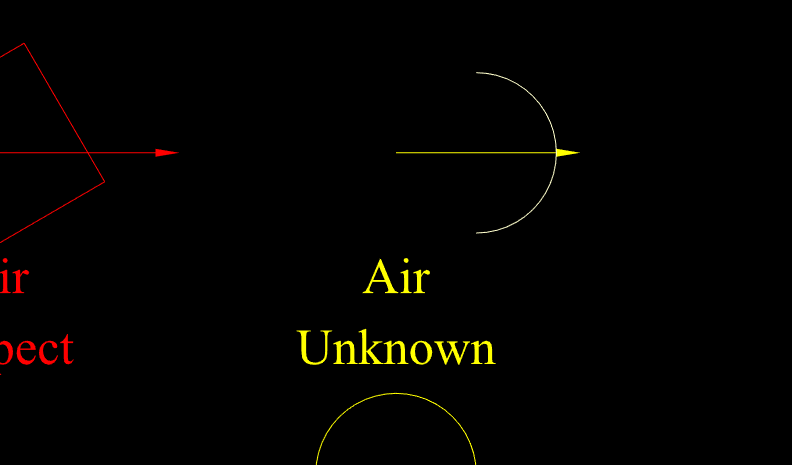

| 271 | <Transform DEF='SubSurfaceFriendExample' translation='-15 0 10'> |
| 272 | <Viewpoint description='SubSurface Friend' orientation='-1 0 0 1.57' position='0 7 1'/> |
| 273 | <ProtoInstance name='SubSurfaceFriend'> |
| 274 | <fieldValue name='color' value='0 0 1'/> |
| 275 | </ProtoInstance> |
| 276 | <ProtoInstance name='SymbolLabel'> |
| 277 | <fieldValue name='labelColor' value='0 0 1'/> |
| 278 | <fieldValue name='trackLabel' value='"SubSurface" "Friend"'/> |
| 279 | </ProtoInstance> |
| 280 | </Transform> |

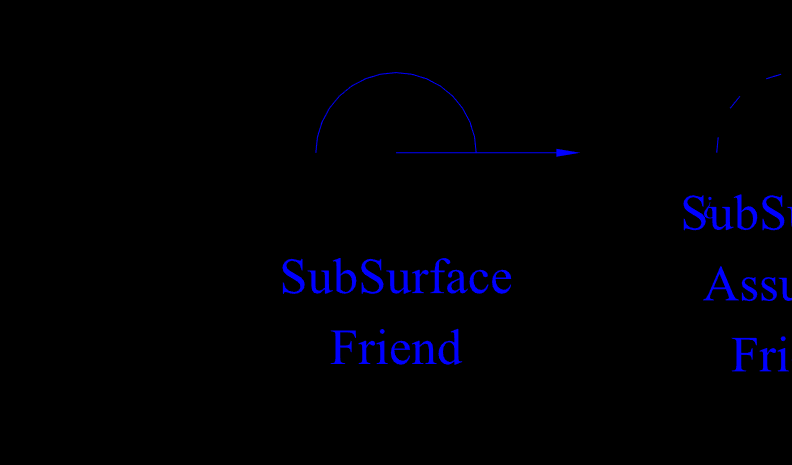

| 281 | <Transform DEF='SubSurfaceAssumedFriendExample' translation='-10 0 10'> |
| 282 | <Viewpoint description='SubSurface Assumed Friend' orientation='-1 0 0 1.57' position='0 7 1'/> |
| 283 | <ProtoInstance name='SubSurfaceAssumedFriend'> |
| 284 | <fieldValue name='color' value='0 0 1'/> |
| 285 | <fieldValue name='labelColor' value='0 0 1'/> |
| 286 | <fieldValue name='symbolModifier' value='"?"'/> |
| 287 | </ProtoInstance> |
| 288 | <ProtoInstance name='SymbolLabel'> |
| 289 | <fieldValue name='labelColor' value='0 0 1'/> |
| 290 | <fieldValue name='trackLabel' value='"SubSurface" "Assumed" "Friend"'/> |
| 291 | </ProtoInstance> |
| 292 | </Transform> |

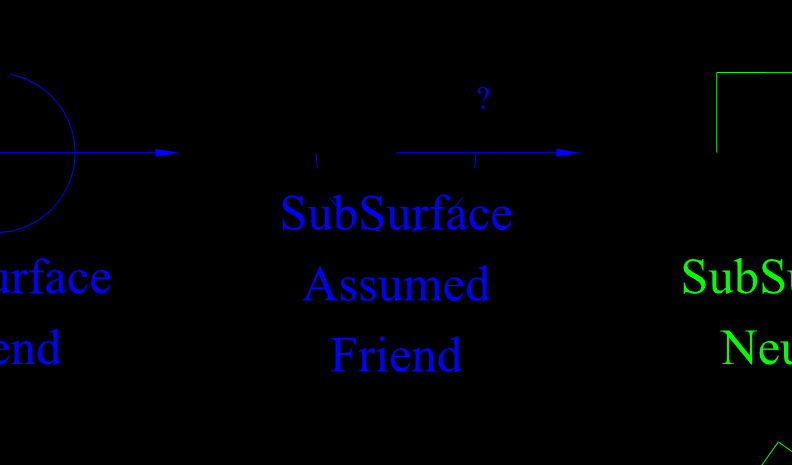

| 293 | <Transform DEF='SubSurfaceNeutralExample' translation='-5 0 10'> |
| 294 | <Viewpoint description='SubSurface Neutral' orientation='-1 0 0 1.57' position='0 7 1'/> |
| 295 | <ProtoInstance name='SubSurfaceNeutral'> |
| 296 | <fieldValue name='color' value='0 1 0'/> |
| 297 | </ProtoInstance> |
| 298 | <ProtoInstance name='SymbolLabel'> |
| 299 | <fieldValue name='labelColor' value='0 1 0'/> |
| 300 | <fieldValue name='trackLabel' value='"SubSurface" "Neutral"'/> |
| 301 | </ProtoInstance> |
| 302 | </Transform> |
| 303 | <Transform DEF='SubSurfacePendingExample' translation='0 0 10'> |
| 304 | <Viewpoint description='SubSurface Pending' orientation='-1 0 0 1.57' position='0 7 1'/> |
| 305 | <ProtoInstance name='SubSurfacePending'> |
| 306 | <fieldValue name='color' value='1 1 0'/> |
| 307 | <fieldValue name='labelColor' value='1 1 0'/> |
| 308 | <fieldValue name='symbolModifier' value='"?"'/> |
| 309 | </ProtoInstance> |
| 310 | <ProtoInstance name='SymbolLabel'> |
| 311 | <fieldValue name='labelColor' value='1 1 0'/> |
| 312 | <fieldValue name='trackLabel' value='"SubSurface" "Pending"'/> |
| 313 | </ProtoInstance> |
| 314 | </Transform> |
| 315 | <Transform DEF='SubSurfaceHostileExample' translation='5 0 10'> |
| 316 | <Viewpoint description='SubSurface Hostile' orientation='-1 0 0 1.57' position='0 7 1'/> |
| 317 | <ProtoInstance name='SubSurfaceHostile'> |
| 318 | <fieldValue name='color' value='1 0 0'/> |
| 319 | </ProtoInstance> |
| 320 | <ProtoInstance name='SymbolLabel'> |
| 321 | <fieldValue name='labelColor' value='1 0 0'/> |
| 322 | <fieldValue name='trackLabel' value='"SubSurface" "Hostile"'/> |
| 323 | </ProtoInstance> |
| 324 | </Transform> |
| 325 | <Transform DEF='SubSurfaceSuspectExample' translation='10 0 10'> |
| 326 | <Viewpoint description='SubSurface Suspect' orientation='-1 0 0 1.57' position='0 7 1'/> |
| 327 | <ProtoInstance name='SubSurfaceSuspect'> |
| 328 | <fieldValue name='color' value='1 0 0'/> |
| 329 | <fieldValue name='labelColor' value='1 0 0'/> |
| 330 | <fieldValue name='symbolModifier' value='"?"'/> |
| 331 | </ProtoInstance> |
| 332 | <ProtoInstance name='SymbolLabel'> |
| 333 | <fieldValue name='labelColor' value='1 0 0'/> |
| 334 | <fieldValue name='trackLabel' value='"SubSurface" "Suspect"'/> |
| 335 | </ProtoInstance> |
| 336 | </Transform> |

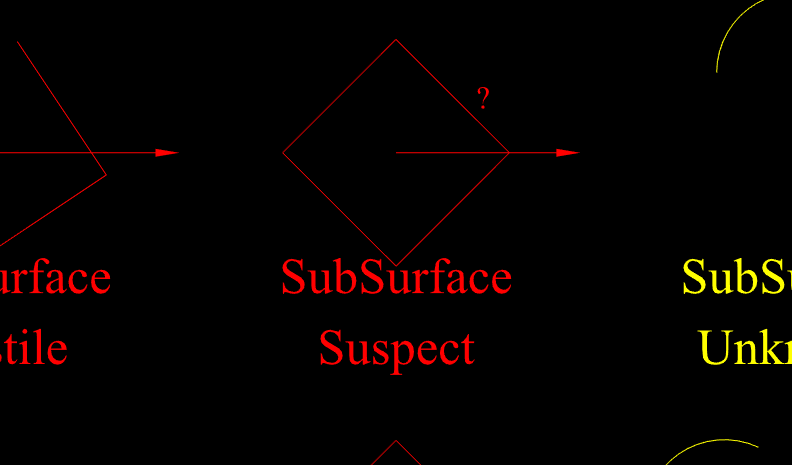

| 337 | <Transform DEF='SubSurfaceUnknownExample' translation='15 0 10'> |
| 338 | <Viewpoint description='SubSurface Unknown' orientation='-1 0 0 1.57' position='0 7 1'/> |
| 339 | <ProtoInstance name='SubSurfaceUnknown'> |
| 340 | <fieldValue name='color' value='1 1 0'/> |
| 341 | </ProtoInstance> |
| 342 | <ProtoInstance name='SymbolLabel'> |
| 343 | <fieldValue name='labelColor' value='1 1 0'/> |
| 344 | <fieldValue name='trackLabel' value='"SubSurface" "Unknown"'/> |
| 345 | </ProtoInstance> |
| 346 | </Transform> |
| 347 | <!-- GroundEquipment Examples --> |
| 348 | <Transform DEF='GroundEquipmentFriendExample' translation='-15 0 15'> |
| 349 | <Viewpoint description='GroundEquipment Friend' orientation='-1 0 0 1.57' position='0 7 1'/> |
| 350 | <ProtoInstance name='GroundEquipmentFriend'/> |
| 351 | <ProtoInstance name='SymbolLabel'> |
| 352 | <fieldValue name='labelColor' value='0 0 1'/> |
| 353 | <fieldValue name='trackLabel' value='"Ground" "Equipment" "Friend"'/> |
| 354 | </ProtoInstance> |
| 355 | </Transform> |

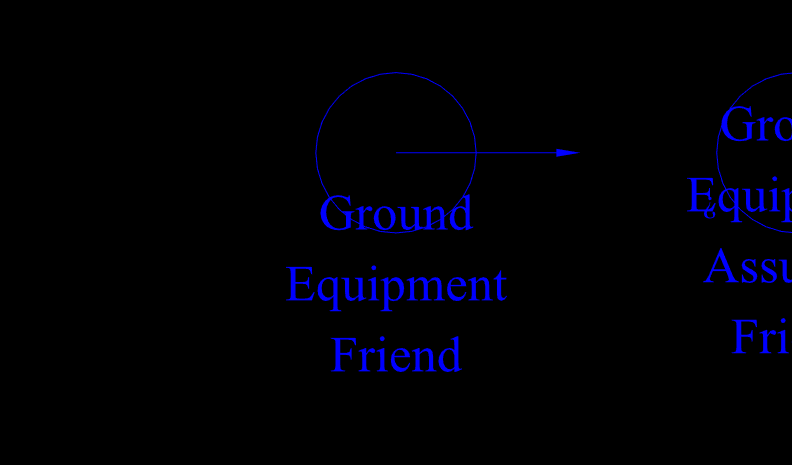

| 356 | <Transform DEF='GroundEquipmentAssumedFriendExample' translation='-10 0 15'> |
| 357 | <Viewpoint description='GroundEquipment Assumed Friend' orientation='-1 0 0 1.57' position='0 7 1'/> |
| 358 | <ProtoInstance name='GroundEquipmentAssumedFriend'/> |
| 359 | <ProtoInstance name='SymbolLabel'> |
| 360 | <fieldValue name='labelColor' value='0 0 1'/> |
| 361 | <fieldValue name='trackLabel' value='"Ground" "Equipment" "Assumed" "Friend"'/> |
| 362 | </ProtoInstance> |
| 363 | </Transform> |

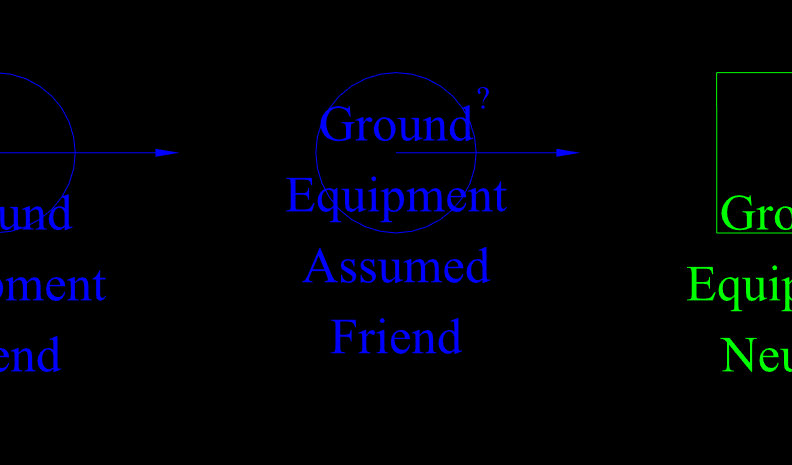

| 364 | <Transform DEF='GroundEquipmentNeutralExample' translation='-5 0 15'> |
| 365 | <Viewpoint description='GroundEquipment Neutral' orientation='-1 0 0 1.57' position='0 7 1'/> |
| 366 | <ProtoInstance name='GroundEquipmentNeutral'/> |
| 367 | <ProtoInstance name='SymbolLabel'> |
| 368 | <fieldValue name='labelColor' value='0 1 0'/> |
| 369 | <fieldValue name='trackLabel' value='"Ground" "Equipment" "Neutral"'/> |
| 370 | </ProtoInstance> |
| 371 | </Transform> |

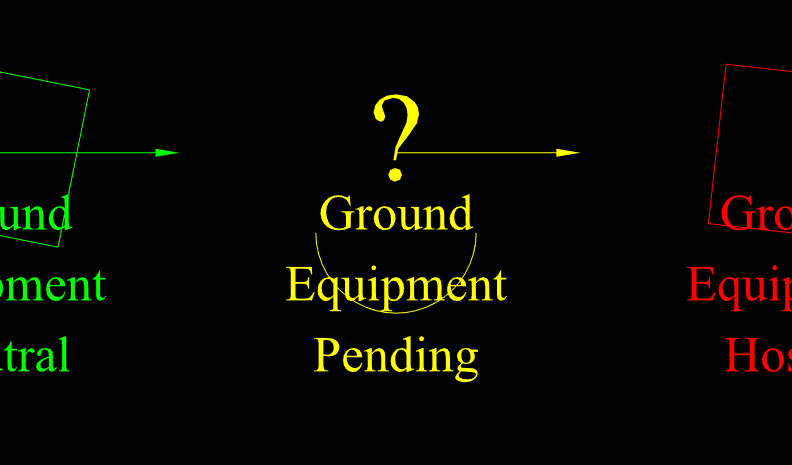

| 372 | <Transform DEF='GroundEquipmentPendingExample' translation='0 0 15'> |
| 373 | <Viewpoint description='GroundEquipment Pending' orientation='-1 0 0 1.57' position='0 7 1'/> |
| 374 | <ProtoInstance name='GroundEquipmentPending'/> |
| 375 | <ProtoInstance name='SymbolLabel'> |
| 376 | <fieldValue name='labelColor' value='1 1 0'/> |
| 377 | <fieldValue name='trackLabel' value='"Ground" "Equipment" "Pending"'/> |
| 378 | </ProtoInstance> |
| 379 | </Transform> |
| 380 | <Transform DEF='GroundEquipmentHostileExample' translation='5 0 15'> |
| 381 | <Viewpoint description='GroundEquipment Hostile' orientation='-1 0 0 1.57' position='0 7 1'/> |
| 382 | <ProtoInstance name='GroundEquipmentHostile'/> |
| 383 | <ProtoInstance name='SymbolLabel'> |
| 384 | <fieldValue name='labelColor' value='1 0 0'/> |
| 385 | <fieldValue name='trackLabel' value='"Ground" "Equipment" "Hostile"'/> |
| 386 | </ProtoInstance> |
| 387 | </Transform> |
| 388 | <Transform DEF='GroundEquipmentSuspectExample' translation='10 0 15'> |

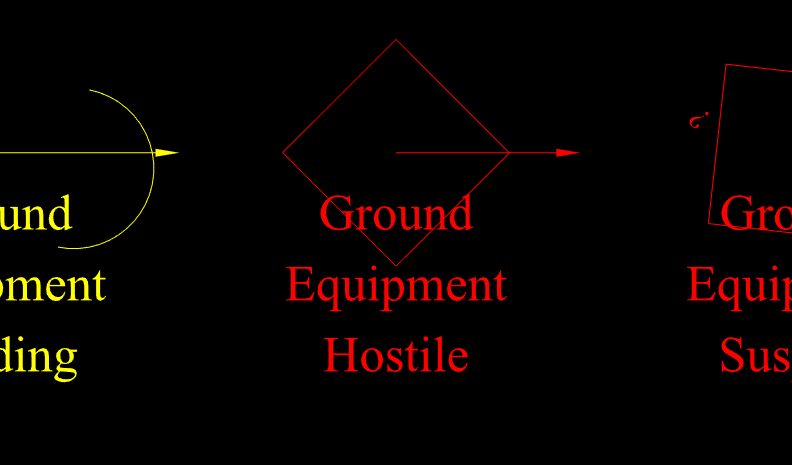

| 389 | <Viewpoint description='GroundEquipment Suspect' orientation='-1 0 0 1.57' position='0 7 1'/> |
| 390 | <ProtoInstance name='GroundEquipmentSuspect'/> |
| 391 | <ProtoInstance name='SymbolLabel'> |
| 392 | <fieldValue name='labelColor' value='1 0 0'/> |
| 393 | <fieldValue name='trackLabel' value='"Ground" "Equipment" "Suspect"'/> |
| 394 | </ProtoInstance> |
| 395 | </Transform> |
| 396 | <Transform DEF='GroundEquipmentUnknownExample' translation='15 0 15'> |
| 397 | <Viewpoint description='GroundEquipment Unknown' orientation='-1 0 0 1.57' position='0 7 1'/> |
| 398 | <ProtoInstance name='GroundEquipmentUnknown'/> |
| 399 | <ProtoInstance name='SymbolLabel'> |
| 400 | <fieldValue name='labelColor' value='1 1 0'/> |
| 401 | <fieldValue name='trackLabel' value='"Ground" "Equipment" "Unknown"'/> |
| 402 | </ProtoInstance> |
| 403 | </Transform> |
| 404 | </Scene> |
| 405 | </X3D> |
DEF nodes index:
AirAssumedFriendExample,
AirFriendExample,
AirHostileExample,
AirNeutralExample,
AirPendingExample,
AirSuspectExample,
AirUnknownExample,
GroundEquipmentAssumedFriendExample,
GroundEquipmentFriendExample,
GroundEquipmentHostileExample,
GroundEquipmentNeutralExample,
GroundEquipmentPendingExample,
GroundEquipmentSuspectExample,
GroundEquipmentUnknownExample,
SubSurfaceAssumedFriendExample,
SubSurfaceFriendExample,
SubSurfaceHostileExample,
SubSurfaceNeutralExample,
SubSurfacePendingExample,
SubSurfaceSuspectExample,
SubSurfaceUnknownExample,
SurfaceAssumedFriendExample,
SurfaceFriendExample,
SurfaceHostileExample,
SurfaceNeutralExample,
SurfacePendingExample,
SurfaceSuspectExample,
SurfaceUnknownExample
Event Graph ROUTE Table with 0 ROUTE connections total, showing X3D event-model relationships for this scene.
Each row shows an event cascade that may occur during a single timestamp interval between frame renderings, as part of the X3D execution model.
| line 119
ProtoInstance SurfaceFriend |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 122
ProtoInstance SymbolLabel |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 129
ProtoInstance SurfaceAssumedFriend |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 134
ProtoInstance SymbolLabel |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 141
ProtoInstance SurfaceNeutral |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 144
ProtoInstance SymbolLabel |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 151
ProtoInstance SurfacePending |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 156
ProtoInstance SymbolLabel |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 163
ProtoInstance SurfaceHostile |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 166
ProtoInstance SymbolLabel |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 173
ProtoInstance SurfaceSuspect |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 178
ProtoInstance SymbolLabel |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 185
ProtoInstance SurfaceUnknown |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 188
ProtoInstance SymbolLabel |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 196
ProtoInstance AirFriend |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 199
ProtoInstance SymbolLabel |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 206
ProtoInstance AirAssumedFriend |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 211
ProtoInstance SymbolLabel |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 218
ProtoInstance AirNeutral |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 221
ProtoInstance SymbolLabel |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 228
ProtoInstance AirPending |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 233
ProtoInstance SymbolLabel |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 240
ProtoInstance AirHostile |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 243
ProtoInstance SymbolLabel |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 250
ProtoInstance AirSuspect |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 255
ProtoInstance SymbolLabel |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 262
ProtoInstance AirUnknown |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 265
ProtoInstance SymbolLabel |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 273
ProtoInstance SubSurfaceFriend |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 276
ProtoInstance SymbolLabel |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 283
ProtoInstance SubSurfaceAssumedFriend |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 288
ProtoInstance SymbolLabel |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 295
ProtoInstance SubSurfaceNeutral |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 298
ProtoInstance SymbolLabel |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 305
ProtoInstance SubSurfacePending |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 310
ProtoInstance SymbolLabel |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 317
ProtoInstance SubSurfaceHostile |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 320
ProtoInstance SymbolLabel |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 327
ProtoInstance SubSurfaceSuspect |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 332
ProtoInstance SymbolLabel |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 339
ProtoInstance SubSurfaceUnknown |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 342
ProtoInstance SymbolLabel |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 350
ProtoInstance GroundEquipmentFriend |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 351
ProtoInstance SymbolLabel |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 358
ProtoInstance GroundEquipmentAssumedFriend |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 359
ProtoInstance SymbolLabel |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 366
ProtoInstance GroundEquipmentNeutral |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 367
ProtoInstance SymbolLabel |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 374
ProtoInstance GroundEquipmentPending |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 375
ProtoInstance SymbolLabel |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 382
ProtoInstance GroundEquipmentHostile |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 383
ProtoInstance SymbolLabel |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 390
ProtoInstance GroundEquipmentSuspect |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 391
ProtoInstance SymbolLabel |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 398
ProtoInstance GroundEquipmentUnknown |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
| line 399
ProtoInstance SymbolLabel |
No direct ROUTE connection found for events to/from this node. This ProtoInstance contains SFNode/MFNode fieldValue declarations with direct access to other nodes, and thus has potential to produce run-time animation. |
<!--
Color-coding legend: X3D terminology
<X3dNode
DEF='idName' field='value'/>
matches XML terminology
<XmlElement
DEF='idName' attribute='value'/>
(Light-blue background: event-based behavior node or statement)
(Grey background inside box: inserted documentation)
(Magenta background: X3D Extensibility)
<ProtoInstance name='ProtoName'>
<field
name='fieldName'/> </ProtoInstance>
-->
<!--
For additional help information about X3D scenes, please see X3D Tooltips, X3D Resources, and X3D Scene Authoring Hints.
-->
