X3D Model Documentation: AxisLinesRGB.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2  <!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
  3  <X3D profile='Interchange' version='3.3'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.3.xsd'>
  4       <head>
  5            <meta name='title' content=' AxisLinesRGB.x3d '/>
  6            <meta name='description' content='AxisLinesRGB shows 3 red-green-blue (RBB) perpendicular lines suitable as X-Y-Z axes.'/>
  7            <meta name='created' content='30 December 2015'/>
  8            <meta name='modified' content='20 October 2019'/>
  9            <meta name='creator' content='Don Brutzman'/>
 10            <meta name='reference' content='https://www.web3d.org/x3d/content/examples/X3dSceneAuthoringHints.html#CoordinateSystems'/>
 11            <meta name='info' content='Development of this scene added new features to X3D-Edit'/>
 12            <meta name='Image' content='AxisLinesRGB.png'/>

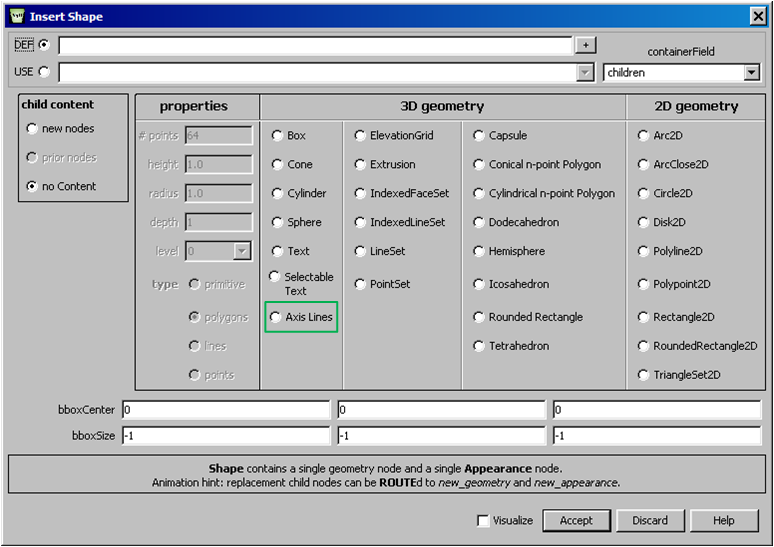

 13            <meta name='Image' content='AxisLinesRgbInterface.png'/>
 14            <meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/GeometricShapes/AxisLinesRGB.x3d '/>
 15            <meta name='generator' content='X3D-Edit 3.3, https://www.web3d.org/x3d/tools/X3D-Edit'/>
 16            <meta name='license' content='../license.html'/>
 17       </head>
<!--
<!-- to top DEF node index: Index for Viewpoint node: Viewpoint_1
-->
 18       <Scene>
 19            <WorldInfo title='AxisLinesRGB.x3d'/>
 20            <Background skyColor='1 1 1'/>
 21            <Viewpoint description='Axis Lines RGB XYZ' position='0 0 4'/>
 22            <Shape>
 23                 <IndexedLineSet colorPerVertex='false' colorIndex='0 1 2' coordIndex='0 1 -1 0 2 -1 0 3 -1'>
 24                      <Coordinate point='0 0 0 1 0 0 0 1 0 0 0 1'/>
 25                      <Color color='1 0 0 0 0.6 0 0 0 1'/>
 26                 </IndexedLineSet>
 27            </Shape>
 28       </Scene>
 29  </X3D>
<!--
<!-- to top DEF node index: Index for Viewpoint node: Viewpoint_1
-->
