X3D Model Documentation: HelloSeoul.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2  <!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
  3  <X3D profile='Immersive' version='3.3'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.3.xsd'>
  4       <head>
  5            <meta name='title' content=' HelloSeoul.x3d '/>
  6            <meta name='description' content='Hello World: Hello Seoul in Korean, 안녕 서울'/>
  7            <meta name='creator' content='Byounghyun Yoo'/>
  8            <meta name='created' content='22 January 2014'/>
  9            <meta name='modified' content='8 October 2023'/>
 10            <meta name='reference' content=' HelloWorld.x3d '/>
 11            <meta name='subject' content='Hello World Example'/>
 12            <meta name='reference' content='https://www.web3d.org/realtime-3d/news/internationalization-x3d'/>
 13            <meta name='reference' content='https://en.wikipedia.org/wiki/Korean_language'/>
 14            <meta name='Image' content='images/HelloSeoul.png'/>

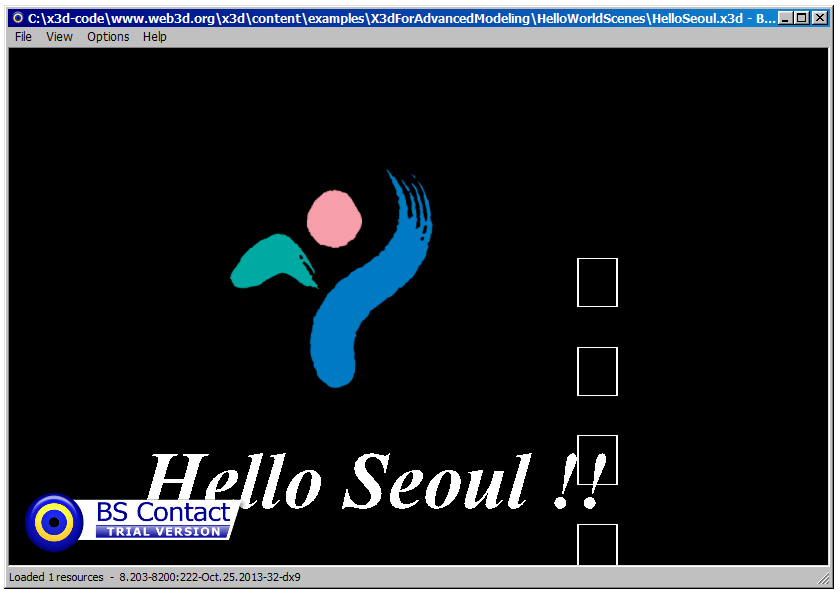

 15            <meta name='Image' content='images/HelloSeoulBsContact.png'/>

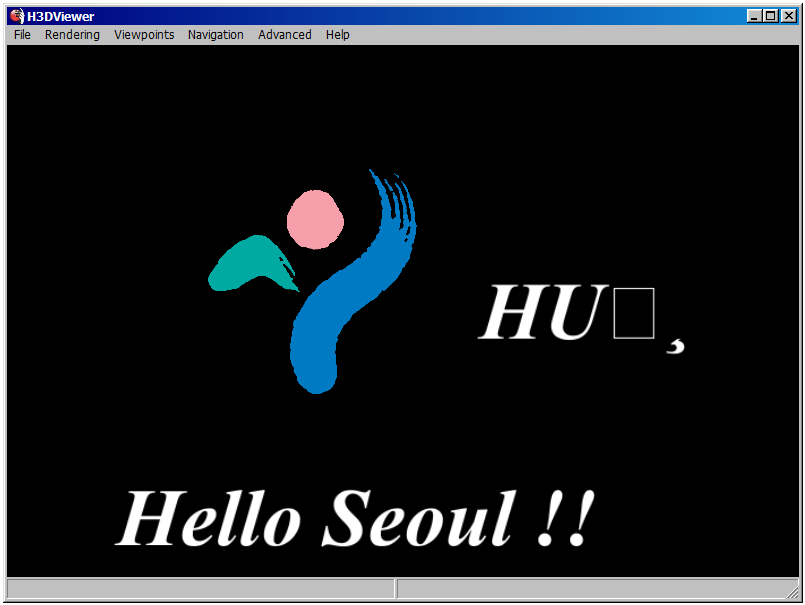

 16            <meta name='Image' content='images/HelloSeoulH3Dviewer.png'/>

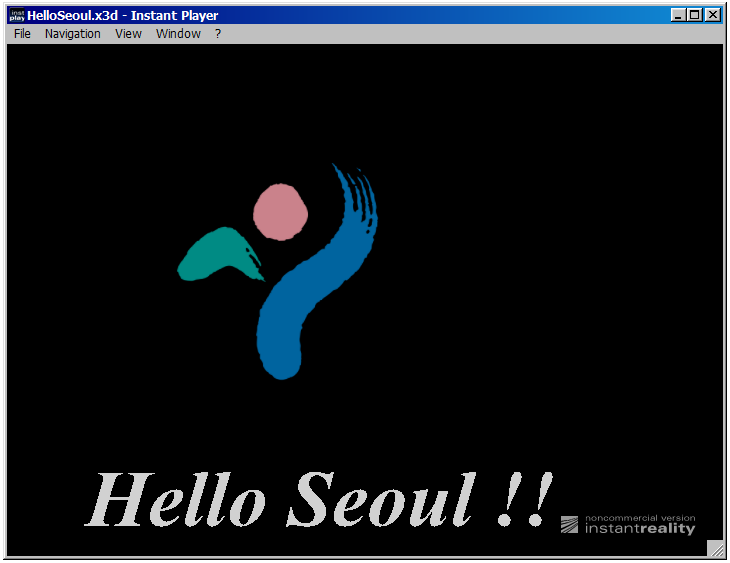

 17            <meta name='Image' content='images/HelloSeoulInstantReality.png'/>

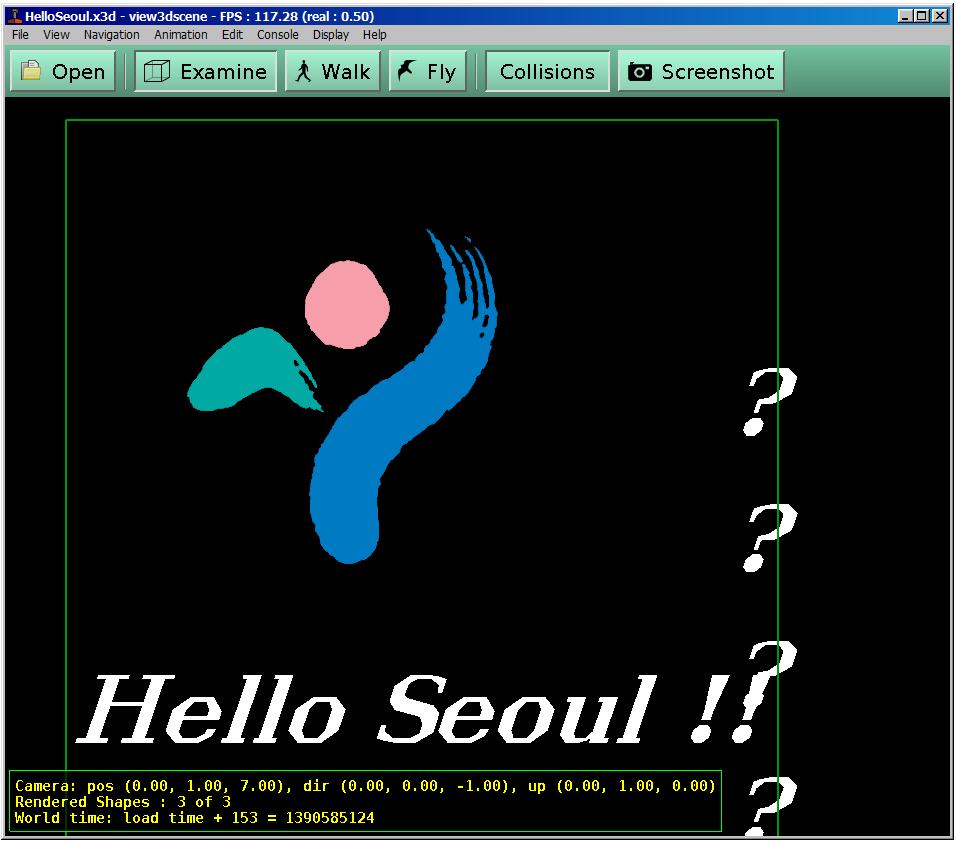

 18            <meta name='Image' content='images/HelloSeoulView3dscene.png'/>

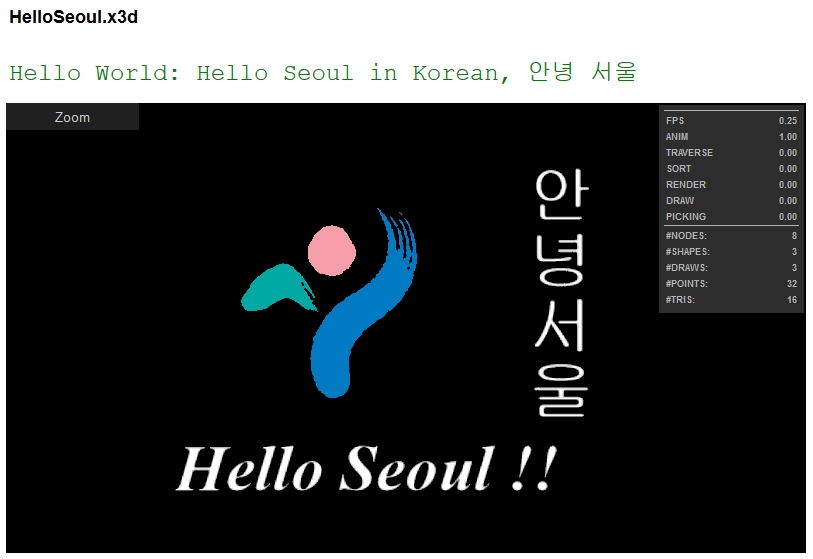

 19            <meta name='Image' content='images/HelloSeoulX3DOM.png'/>

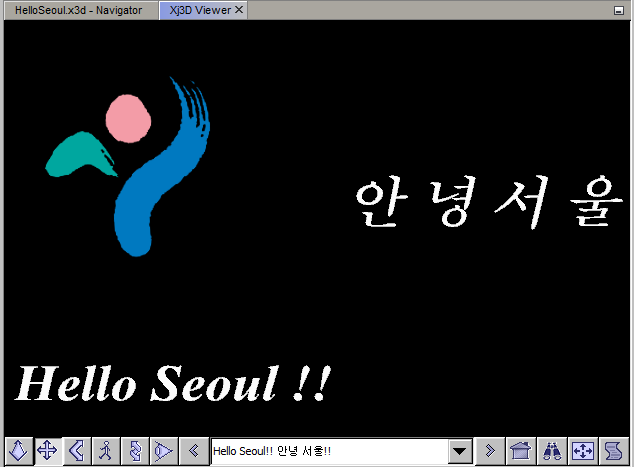

 20            <meta name='Image' content='images/HelloSeoulXj3D.png'/>
 21            <meta name='Image' content='images/Seoul_Flag.png'/>
 22            <meta name='reference' content='https://en.wikipedia.org/wiki/Seoul'/>
 23            <meta name='reference' content='https://commons.wikimedia.org/wiki/File:Flag_of_Seoul.png'/>
 24            <meta name='reference' content='https://en.wikipedia.org/wiki/Korean_character'/>
 25            <meta name='reference' content='http://en.wikibooks.org/w/index.php?title=Computer_Programming/Hello_world'/>
 26            <meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/HelloWorldScenes/HelloSeoul.x3d '/>
 27            <meta name='generator' content='X3D-Edit 4.0, https://www.web3d.org/x3d/tools/X3D-Edit'/>
 28            <meta name='license' content='../license.html'/>
 29       </head>
<!--
<!--
Event Graph ROUTE Table shows event connections.
-->
<!-- to top DEF node index: TextAppearance

Index for Viewpoint node: Viewpoint_1
-->
 30       <Scene>
 31            <WorldInfo title='Hello Seoul!! 안녕 서울!!'/>
 32            <Viewpoint description='Hello Seoul!! 안녕 서울!!' position='0 1 7'/>
 33            <!-- character entities: &#50504;&#45397; &#49436;&#50872; -->
 34            <Transform translation='2 1 0'>
 35                 <Shape>
 36                      <Text string='"안" "녕" "서" "울"'>
 37                           <!-- "&#50504;" "&#45397;" "&#49436;" "&#50872;" -->
 38                           <FontStyle horizontal='false' justify='"MIDDLE" "MIDDLE"' style='BOLDITALIC'/>
 39                      </Text>
 40
                    <!-- Appearance TextAppearance is a DEF node that has 1 USE node: USE_1 -->
                     <Appearance DEF='TextAppearance'>
 41                           <Material diffuseColor='1 1 1'/>
 42                      </Appearance>
 43                 </Shape>
 44            </Transform>
 45            <Transform translation='-0.5 -1.25 0'>
 46                 <Shape>
 47                      <Text string='"Hello Seoul !!"'>
 48                           <FontStyle justify='"MIDDLE" "MIDDLE"' style='BOLDITALIC'/>
 49                      </Text>
 50                      <Appearance USE='TextAppearance'/>
 51                 </Shape>
 52                 <Transform translation='-0.4 2.6 0'>
 53                      <Anchor description='Seoul Wikipedia page'   url=' "https://en.wikipedia.org/wiki/Seoul" '>
 54                           <Shape>
 55                                <Box size='4 4 .0001'/>
 56                                <Appearance>
 57                                     <ImageTexture   url=' "2000px-Seal_of_Seoul.svg.png " "https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/HelloWorldScenes/2000px-Seal_of_Seoul.svg.png " "Seal_of_Seoul.svg" "https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/HelloWorldScenes/Seal_of_Seoul.svg " '/>
 58                                     <Material diffuseColor='1 1 1'/>
 59                                </Appearance>
 60                           </Shape>
 61                      </Anchor>
 62                 </Transform>
 63            </Transform>
 64       </Scene>
 65  </X3D>
<!--
<!--
Event Graph ROUTE Table shows event connections.
-->
<!-- to top DEF node index: TextAppearance

Index for Viewpoint node: Viewpoint_1
-->
X3D Tooltips element index: Anchor, Appearance, Box, FontStyle, head, ImageTexture, Material, meta, Scene, Shape, Text, Transform, Viewpoint, WorldInfo, X3D, plus documentation for accessType definitions, type definitions, XML data types, and field types

Event Graph ROUTE Table with 0 ROUTE connections total, showing X3D event-model relationships for this scene.

Each row shows an event cascade that may occur during a single timestamp interval between frame renderings, as part of the X3D execution model.

line 53
Anchor
description='Seoul Wikipedia page'
User-interaction hint for this node.

Additional guidance on X3D animation can be found in the 10-Step Animation Design Process and Event Tracing hint sheets. Have fun with X3D! 😀
-->
<!-- Online at
https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/HelloWorldScenes/HelloSeoulIndex.html -->
<!-- Version control at
https://sourceforge.net/p/x3d/code/HEAD/tree/www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/HelloWorldScenes/HelloSeoul.x3d -->

<!-- Color-coding legend: X3D terminology <X3dNode  DEF='idName' field='value'/> matches XML terminology <XmlElement  DEF='idName' attribute='value'/>
(Light-blue background: event-based behavior node or statement) (Grey background inside box: inserted documentation) (Magenta background: X3D Extensibility)
-->

to top <!-- For additional help information about X3D scenes, please see X3D Tooltips, X3D Resources, and X3D Scene Authoring Hints. -->
