X3D Model Documentation: TextLengthMaxExtent.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2  <!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
  3  <X3D profile='Immersive' version='3.3'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.3.xsd'>
  4       <head>
  5            <meta name='title' content=' TextLengthMaxExtent.x3d '/>
  6            <meta name='description' content='Simple Text node, illustrating length array and maxExtent field'/>
  7            <meta name='creator' content='Don Brutzman'/>
  8            <meta name='created' content='25 January 2009'/>
  9            <meta name='modified' content='20 October 2019'/>

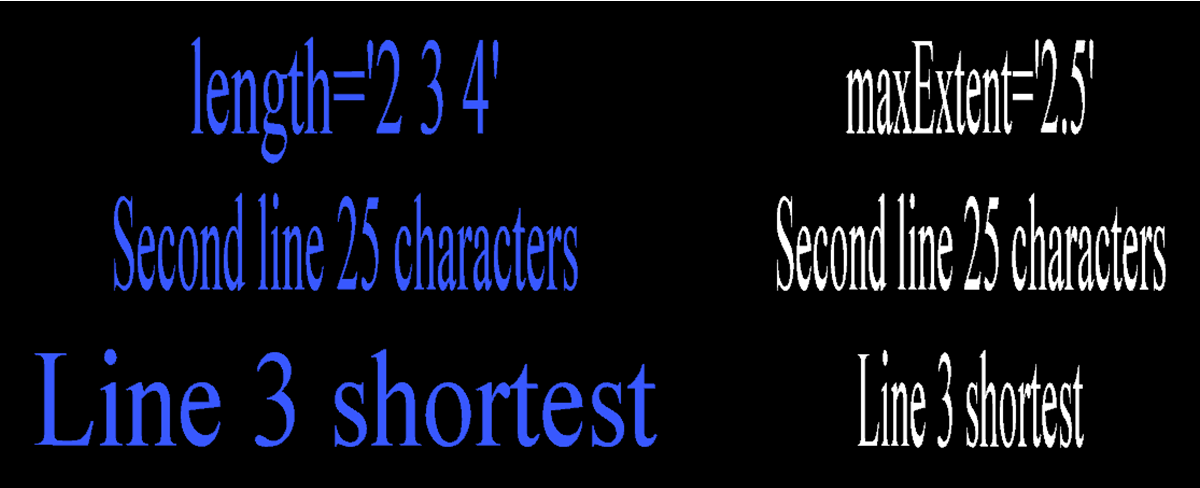

 10            <meta name='reference' content='TextLengthMaxExtent.png'/>
 11            <meta name='rights' content='Copyright (c) Don Brutzman and Leonard Daly, 2005'/>
 12            <meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter02GeometryPrimitives/TextLengthMaxExtent.x3d '/>
 13            <meta name='generator' content='X3D-Edit 3.3, https://www.web3d.org/x3d/tools/X3D-Edit'/>
 14            <meta name='license' content='../license.html'/>
 15       </head>
<!--
<!-- -->
<!-- to top DEF nodes index: BlueMaterial, CenteredFontStyle, LengthText, maxExtentText

Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2
-->
 16       <Scene>
 17            <WorldInfo title='TextLengthMaxExtent.x3d'/>
 18            <Viewpoint description='Default View' position='0 0 6'/>
 19            <Viewpoint description='Book View' position='0.89 -1.11 2.33'/>
 20            <Transform translation='-2 0 0'>
 21                 <Shape>
 22                      <Text DEF='LengthText' length='2 3 4' string='"length='2 3 4'" "Second line 25 characters" "Line 3 shortest"'>
 23
                         <!-- FontStyle CenteredFontStyle is a DEF node that has 1 USE node: USE_1 -->
                          <FontStyle DEF='CenteredFontStyle' justify='"MIDDLE" "MIDDLE"'/>
 24                      </Text>
 25                      <Appearance>
 26                           <Material DEF='BlueMaterial' diffuseColor='0.219608 0.345098 1'/>
 27                      </Appearance>
 28                 </Shape>
 29            </Transform>
 30            <Transform translation='2 0 0'>
 31                 <Shape>
 32                      <Text DEF='maxExtentText' maxExtent='2.5' string='"maxExtent='2.5'" "Second line 25 characters" "Line 3 shortest"'>
 33                           <FontStyle USE='CenteredFontStyle'/>
 34                      </Text>
 35                      <Appearance>
 36                           <Material/>
 37                      </Appearance>
 38                 </Shape>
 39            </Transform>
 40       </Scene>
 41  </X3D>
<!--
<!-- -->
<!-- to top DEF nodes index: BlueMaterial, CenteredFontStyle, LengthText, maxExtentText

Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2
-->
X3D Tooltips element index: Appearance, FontStyle, head, Material, meta, Scene, Shape, Text, Transform, Viewpoint, WorldInfo, X3D, plus documentation for accessType definitions, type definitions, XML data types, and field types
-->
