X3D Model Documentation: CoordinateInterpolator2dExample.x3d

1	`<?xml version="1.0" encoding="UTF-8"?>`
2	`<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">`
3	<X3D profile='Immersive' version='3.3' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.3.xsd'>
4	<head>
5	<component level='3' name='Interpolation'/>
6	<meta name='title' content=' CoordinateInterpolator2dExample.x3d '/>
7	<meta name='description' content='Example to interpolate using CoordinateInterpolator2D - select and hold geometry for a user-controlled animation loop.'/>
8	<meta name='creator' content='Don Brutzman, Jeff Weekley, Jane Wu'/>
9	<meta name='created' content='9 October 2001'/>
10	<meta name='modified' content='31 August 2023'/>
11	<meta name='subject' content='CoordinateInterpolator2D'/>

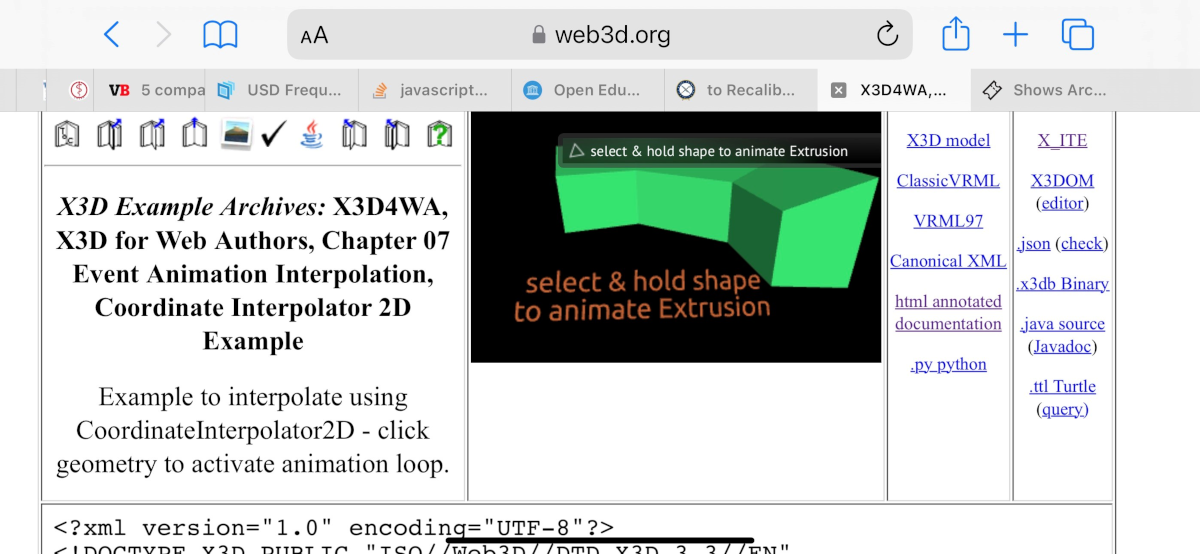

12	<meta name='Image' content='CoordinateInterpolator2dExamplePhoneTouchScreenImage.png'/>
13	<meta name='reference' content=' [x3d-public] TimeSensor Control https://web3d.org/pipermail/x3d-public_web3d.org/2023-August/019468.html '/>
14	<meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter07EventAnimationInterpolation/CoordinateInterpolator2dExample.x3d '/>
15	<meta name='reference' content=' https://www.web3d.org/x3d/content/examples/Basic/development/CoordinateInterpolator2dExample.x3d '/>
16	<meta name='generator' content='X3D-Edit 3.3, https://www.web3d.org/x3d/tools/X3D-Edit'/>
17	<meta name='license' content='../license.html'/>
18	</head>

<!--

Event Graph ROUTE Table shows event connections.

-->
<!--

DEF nodes index: AnimatedCrossSectionExtrusion, Clock, InterpolateCrossSection, Toucher

Index for Viewpoint node: Viewpoint_1

-->

19	<Scene>
20	<WorldInfo title='CoordinateInterpolator2dExample.x3d'/>
21	<Viewpoint description='Click to activate animation' orientation='1 0 0 -0.4' position='0 4 10'/>
22	<!-- ROUTE information for Clock node: [from Toucher.isActive to enabled ] [from Toucher.touchTime to startTime ] [from fraction_changed to InterpolateCrossSection.set_fraction ] --> <TimeSensor DEF='Clock' cycleInterval='5' enabled='false' loop='true'/>
23	<!-- ROUTE information for InterpolateCrossSection node: [from Clock.fraction_changed to set_fraction ] [from value_changed to AnimatedCrossSectionExtrusion.set_crossSection ] --> <CoordinateInterpolator2D DEF='InterpolateCrossSection' key='0 0.45 0.9 1' keyValue='1 1 1 -1 -1 -1 -1 1 1 1 2 2 2 -2 -1 -1 -1 1 2 2 1 1 1 -1 -1 -1 -1 1 1 1 1 1 1 -1 -1 -1 -1 1 1 1'/>
24	< ROUTE fromNode='Clock' fromField='fraction_changed' toNode='InterpolateCrossSection' toField='set_fraction'/>
25	<Transform translation='1.15 1 0'>
26	<!-- & is the XML escape character code for ampersand character -->
27	<!-- ROUTE information for Toucher node: [from isActive to Clock.enabled ] [from touchTime to Clock.startTime ] --> <TouchSensor DEF='Toucher' description='select & hold shape to animate Extrusion'/>
28	< ROUTE fromNode='Toucher' fromField='isActive' toNode='Clock' toField='enabled'/>
29	<!-- also reset clock to restart -->
30	< ROUTE fromNode='Toucher' fromField='touchTime' toNode='Clock' toField='startTime'/>
31	<Shape>
32	<Appearance>
33	<Material diffuseColor='0.2 0.8 0.4' emissiveColor='0.05 0.2 0.1'/>
34	</Appearance>
35	<!-- ROUTE information for AnimatedCrossSectionExtrusion node: [from InterpolateCrossSection.value_changed to set_crossSection ] --> <Extrusion DEF='AnimatedCrossSectionExtrusion' spine='-4 0 -2 -1 0 -2 2 0 1 2 0 4'/>
36	<!-- default Extrusion crossSection='1 1 1 -1 -1 -1 -1 1 1 1' is a square -->
37	</Shape>
38	< ROUTE fromNode='InterpolateCrossSection' fromField='value_changed' toNode='AnimatedCrossSectionExtrusion' toField='set_crossSection'/>
39	</Transform>
40	<Transform translation='-1.5 -1 2'>
41	<Billboard axisOfRotation='0 0 0'>
42	<Shape>
43	<Text string='"select & hold shape" "to animate Extrusion"'>
44	<FontStyle family='"SANS"' justify='"MIDDLE" "MIDDLE"' size='0.8'/>
45	</Text>
46	<Appearance>
47	<Material diffuseColor='0.8 0.4 0.2'/>
48	</Appearance>
49	</Shape>
50	</Billboard>
51	</Transform>
52	</Scene>
53	</X3D>

<!--

Event Graph ROUTE Table shows event connections.

-->
<!--

DEF nodes index: AnimatedCrossSectionExtrusion, Clock, InterpolateCrossSection, Toucher

Index for Viewpoint node: Viewpoint_1

-->

X3D Tooltips element index: Appearance, Billboard, component, CoordinateInterpolator2D, Extrusion, FontStyle, head, Material, meta, ROUTE, Scene, Shape, Text, TimeSensor, TouchSensor, Transform, Viewpoint, WorldInfo, X3D, plus documentation for accessType definitions, type definitions, XML data types, and field types

Event Graph ROUTE Table entries with 4 ROUTE connections total, showing X3D event-model relationships for this scene.

Each row shows an event cascade that may occur during a single timestamp interval between frame renderings, as part of the X3D execution model.

Toucher TouchSensor isActive SFBool	→ ROUTE event to (1)	Clock TimeSensor enabled SFBool	then	Clock TimeSensor fraction_changed SFFloat	→ ROUTE event to (2)	InterpolateCrossSection CoordinateInterpolator2D set_fraction SFFloat	then	InterpolateCrossSection CoordinateInterpolator2D value_changed MFVec2f	→ ROUTE event to (3)	AnimatedCrossSectionExtrusion Extrusion set_crossSection MFVec2f
Toucher TouchSensor touchTime SFTime	→ ROUTE event to (1)	Clock TimeSensor startTime SFTime	then	Clock TimeSensor fraction_changed SFFloat	→ ROUTE event to (2)	InterpolateCrossSection CoordinateInterpolator2D set_fraction SFFloat	then	InterpolateCrossSection CoordinateInterpolator2D value_changed MFVec2f	→ ROUTE event to (3)	AnimatedCrossSectionExtrusion Extrusion set_crossSection MFVec2f

Additional guidance on X3D animation can be found in the 10-Step Animation Design Process and Event Tracing hint sheets. Have fun with X3D! 😀

-->
