X3D Model Documentation: TeapotInlineGeometryPly.x3d

1	`<?xml version="1.0" encoding="UTF-8"?>`
2	`<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 4.1//EN" "https://www.web3d.org/specifications/x3d-4.1.dtd">`
3	<X3D profile='Immersive' version='4.1' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-4.1.xsd'>
4	<head>
5	<meta name='title' content=' TeapotInlineGeometryPly.x3d '/>
6	<meta name='description' content='Loading a classic teapot model in PLY format'/>
7	<meta name='created' content='7 April 2026'/>
8	<meta name='modified' content='7 April 2026'/>
9	<meta name='creator' content='Don Brutzman'/>
10	<meta name='Image' content='teapot.ply'/>

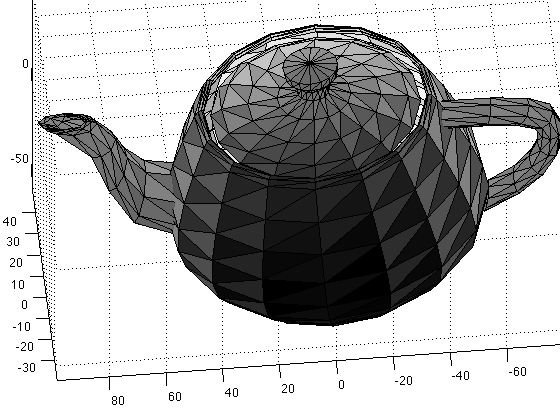

11	<meta name='Image' content='teapot.png'/>

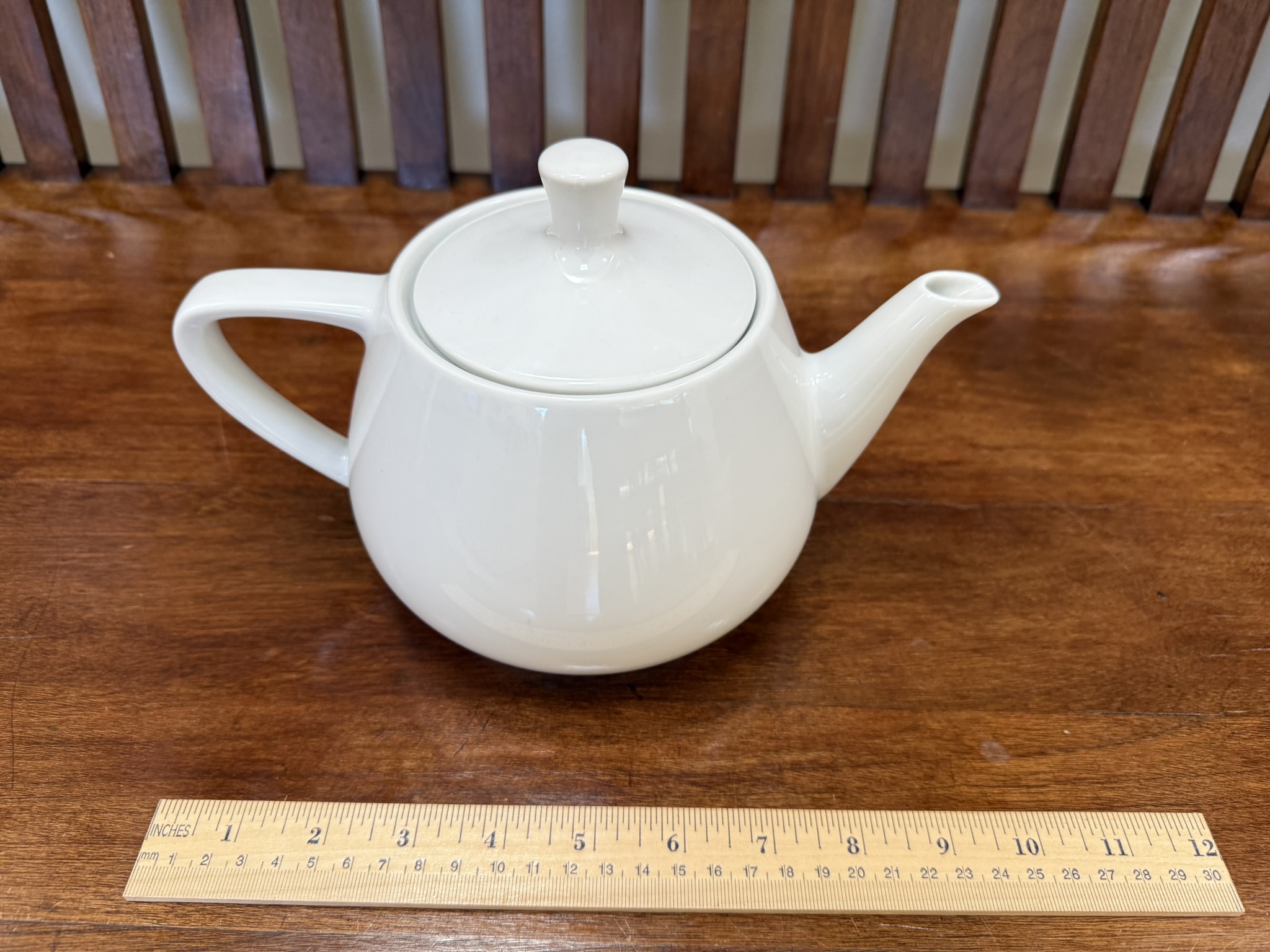

12	<meta name='photo' content='TeapotPhoto.jpg'/>

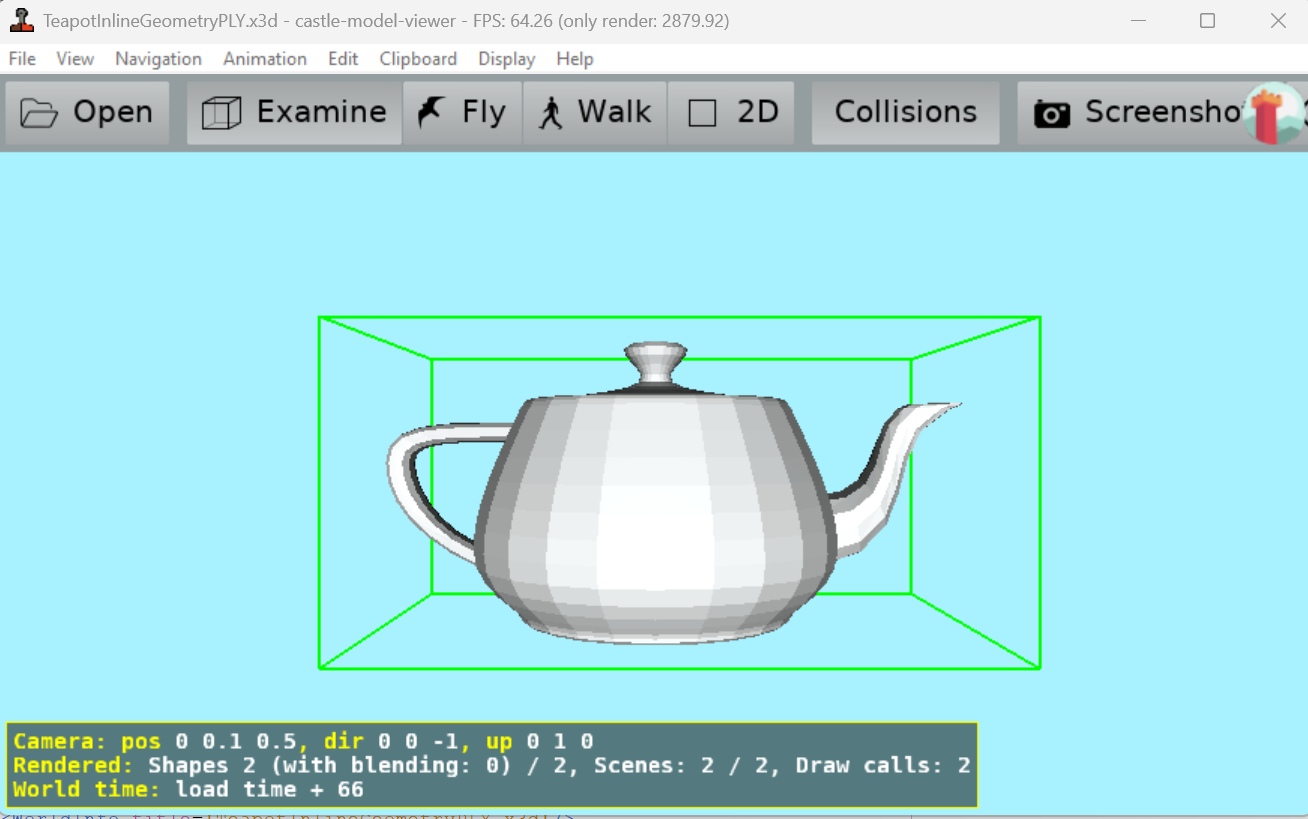

13	<meta name='Image' content='TeapotInlineGeometryPlyCastle.png'/>

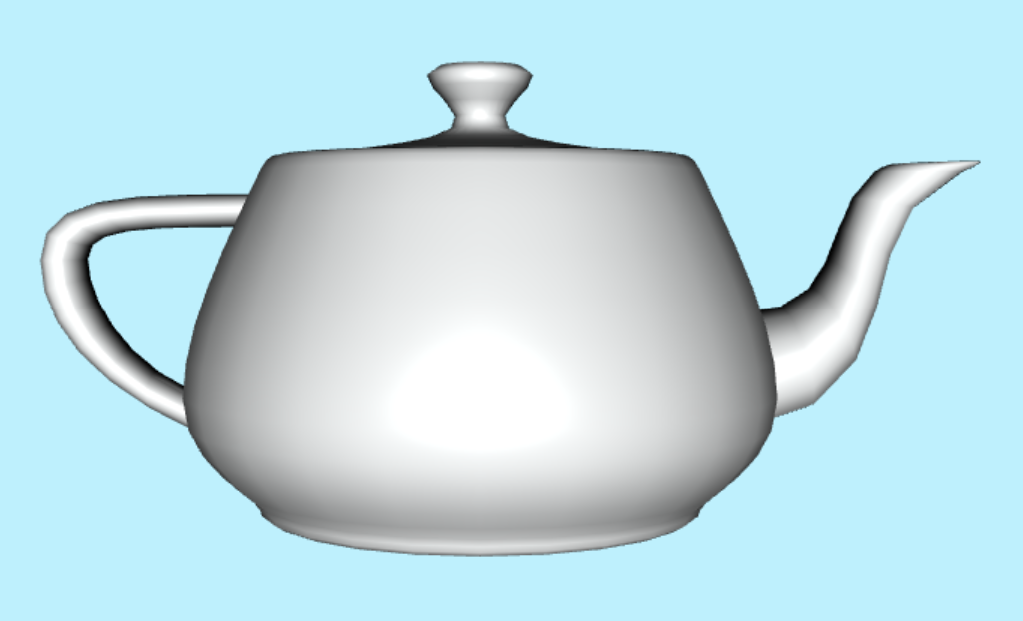

14	<meta name='Image' content='TeapotInlineGeometryPlySunrize.png'/>
15	<meta name='subject' content='X3D PLY InlineGeometry'/>
16	<meta name='reference' content=' https://people.sc.fsu.edu/~jburkardt/data/ply/ply.html '/>
17	<meta name='reference' content='https://en.wikipedia.org/wiki/PLY_(file_format)'/>
18	<meta name='reference' content=' Greg Turk, The PLY Polygon File Format (extended), Stanford University, https://gamma.cs.unc.edu/POWERPLANT/papers/ply.pdf '/>
19	<meta name='reference' content='PLY - Polygon File Format https://paulbourke.net/dataformats/ply'/>
20	<meta name='specificationSection' content='X3D Architecture 4.1 draft, ISO/IEC 19775-1:202x, 9 Networking component, 9.4.3 InlineGeometry'/>
21	<meta name='specificationUrl' content='https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4.1-CD//Part01/components/networking.html#InlineGeometry'/>
22	<meta name='generator' content='X3D-Edit 4.0, https://www.web3d.org/x3d/tools/X3D-Edit'/>
23	<meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/AdditiveManufacturing/TeapotInlineGeometryPly.x3d '/>
24	<meta name='license' content='../license.html'/>
25	</head>

<!--

--> <!-- DEF node index: InlineGeometry

Index for Viewpoint node: Viewpoint_1

-->

26	<Scene>
27	<WorldInfo title='TeapotInlineGeometryPLY.x3d'/>
28	<NavigationInfo type='"EXAMINE"'/>
29	<Background skyColor='0.658824 0.94902 1'/>
30	<Viewpoint centerOfRotation='0 0.1 0' description='Teapot from PLY data' position='0 0.1 0.5'/>
31	<!-- Original size 6.4 x 3.1 x 4 meters, actual height 15cm -->
32	<Transform rotation='1 0 0 -1.570796' scale='0.05 0.05 0.05'>
33	<Shape DEF='InlineGeometry'>
34	<InlineGeometry containerField='geometry' url=' "teapot.ply" "https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/AdditiveManufacturing/teapot.ply" '/>
35	<Appearance>
36	<Material ambientIntensity='0.24' diffuseColor='0.986486 1 1' shininess='0.52' specularColor='0.405259 0.410811 0.410811'>
37	<!-- Universal Media Library: Winter 0 -->
38	</Material>
39	</Appearance>
40	</Shape>
41	</Transform>
42	</Scene>
43	</X3D>

<!--
